EFV-8 Club Forum / General Ford Discussion / 37 ford dash throttle

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 37 ford dash throttle -- page: 1 2

Zero

08-31-2018 @ 8:26 PM

reply profile send p.m.

Member
Posts: 60
Joined: Jul 2018

I recently purchased a 37 model 78 slantback. Located on the dash is a pull rod for the choke and one for the throttle. The throttle rod does not seem to have any effect on the car when it's running. I'm still working out some issues with the engine but this has me confused. Thanks for listening.
John

1937sedandelivery

08-31-2018 @ 10:11 PM

reply profile send p.m.

Senior
Posts: 501
Joined: Jul 2014

Hello,
I have the same car, mine is a Fordor. It is all original as far as I know.
It has been sooo long since I tried the throttle rod. I will check it tomorrow, but pretty sure it was effective in raising the engine RPM. We can compare pics of the rod as it attaches to the carburetor.
Is yours original?
gregg

Zero

09-01-2018 @ 6:21 AM

reply profile send p.m.

Member
Posts: 60
Joined: Jul 2018

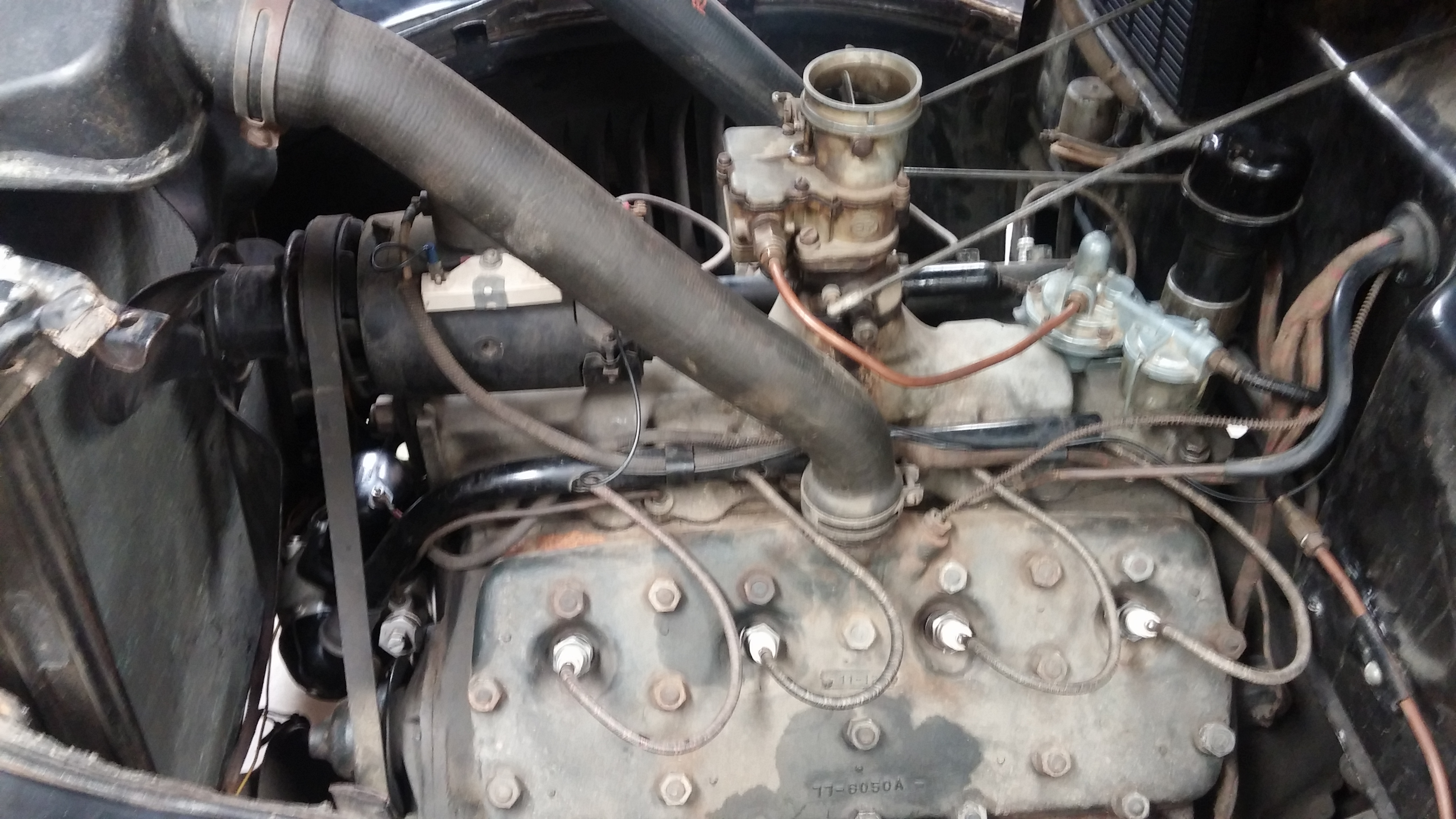

Thanks for getting back to me. Yes the car is all origi nal. I'll take a photo and post it. Carb has since been rebuilt.

cliftford

09-01-2018 @ 7:13 AM

reply profile send p.m.

Senior
Posts: 845
Joined: Jan 2014

Raise the hood and have someone work the throttle back and forth and see what is happening. If its working, check and see if the throttle lever is opening the butterflys.

TomO

09-01-2018 @ 7:28 AM

reply profile send p.m.

Senior
Posts: 7256
Joined: Oct 2009

Try pressing on the gas pedal while pulling out the throttle. When you let off the pedal the engine speed should stay the same. Make sure that the choke knob is pushed all the way in when you make the test.

Tom

ken ct.

09-01-2018 @ 9:11 AM

reply profile send p.m.

Senior
Posts: 1513
Joined: Jan 2010

Looks like your lever on there is missing.If the rod end is attached to the shaft itself,thats wrong. I have extra levers if you need one. That is a 3 piece assembly /// lever,spring and cap. And if I remember the lever points down NOT UP. ken ct. 1-203-260-9780

09-01-2018 @ 9:28 AM

reply profile send p.m.

Senior
Posts: 1261
Joined: Nov 2009

Send the carburetor to ken ct. to have it rebuilt correctly....

ken ct.

09-01-2018 @ 9:56 PM

reply profile send p.m.

Senior
Posts: 1513
Joined: Jan 2010

Not rebuilding anymore MG. Have retired from rebuilding due to health issues. Thanks MG for the plug. ken ct Have lots of parts to sell.

Zero

09-02-2018 @ 4:36 PM

reply profile send p.m.

Member
Posts: 60
Joined: Jul 2018

Moving the throttle rod does nothing to the butterflies in the carb. Talked to Ken ct. and he believes it may have the wrong lever on it.

Thanks to everyone for their input. We'll get this figured out.

MGG

09-02-2018 @ 8:56 PM

reply profile send p.m.

Member
Posts: 85
Joined: Jul 2014

Go to the search function and type in "throttle arm". Under "48 Carb Question" there are some excelent pictures of all the parts and how they go together.
