EFV-8 Club Forum / General Ford Discussion / Carburetor

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Carburetor -- page: 1 2

silverchief

05-15-2024 @ 12:48 PM

reply profile send p.m.

Senior
Posts: 522
Joined: Oct 2009

My completely stock 49 flathead was running great, but very rich with black \sooty plugs and exhaust extensions.

Pulled Autolite carb for through cleaning and installation of quality NAPA kit.

Now it still starts easily and idles smooth as glass at 5,500 rpms.

However previously, from 10 mph in third gear, with easy acceleration it would pull away strong and smooth without the slightest shudder.

Now it "lugs" in both second and third under the slightest load. Only "adjustment" we made after new kit was to the two fuel and air screws for nice idle.

Whatt do you think is most likely the issue?

Thanks for your input.

carcrazy

05-15-2024 @ 1:20 PM

reply profile send p.m.

Senior
Posts: 1667
Joined: Oct 2009

Did you make sure to reconnect the vacuum advance line that goes from the carburetor to the distributor? Proper spark advance is required for smooth accelerations.

Have you put the accelerator pump link into the throttle lever? The proper hole to place the link in for most conditions is #2 (the middle one).

kubes40

05-15-2024 @ 3:53 PM

reply profile send p.m.

Senior
Posts: 3406
Joined: Oct 2009

Autolite a stock carb in '49?

Mike "Kube" Kubarth

Grant

05-16-2024 @ 5:02 AM

reply profile send p.m.

Senior
Posts: 536
Joined: Oct 2009

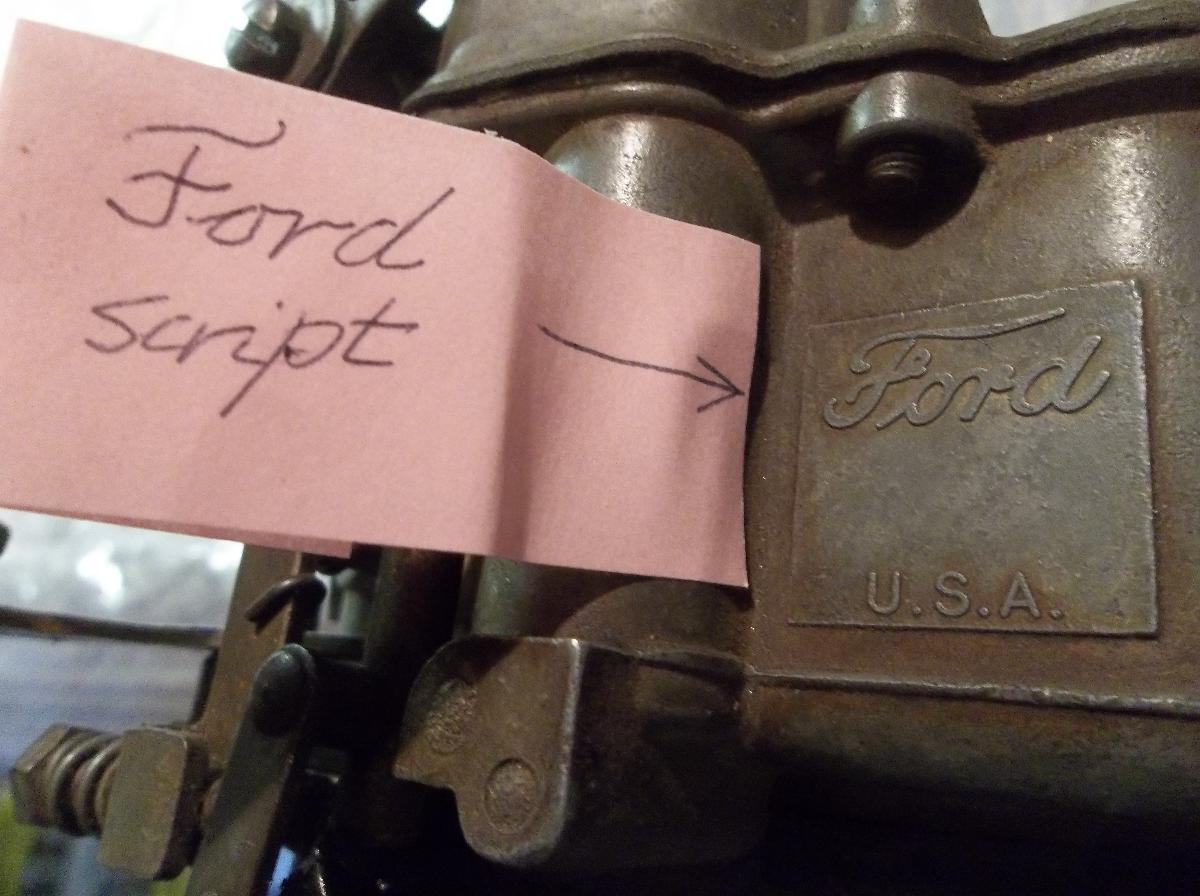

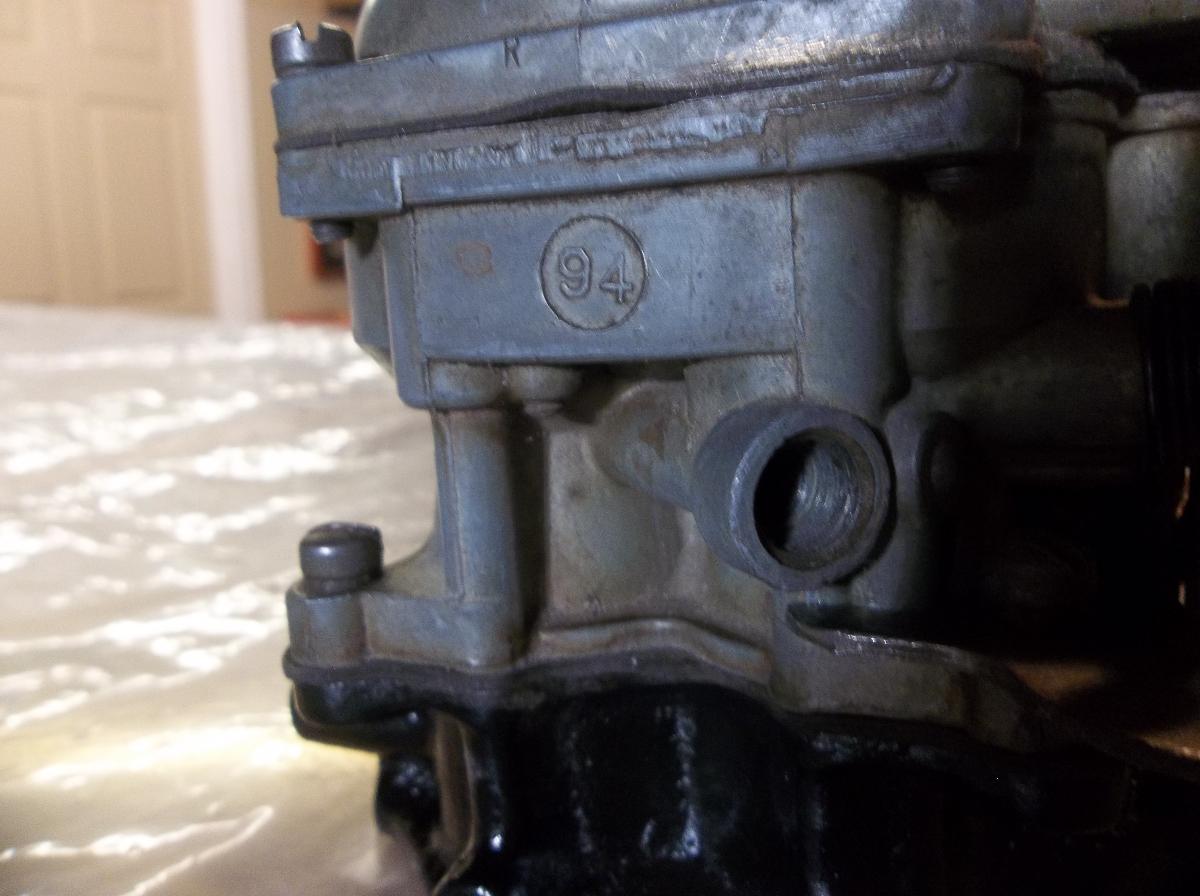

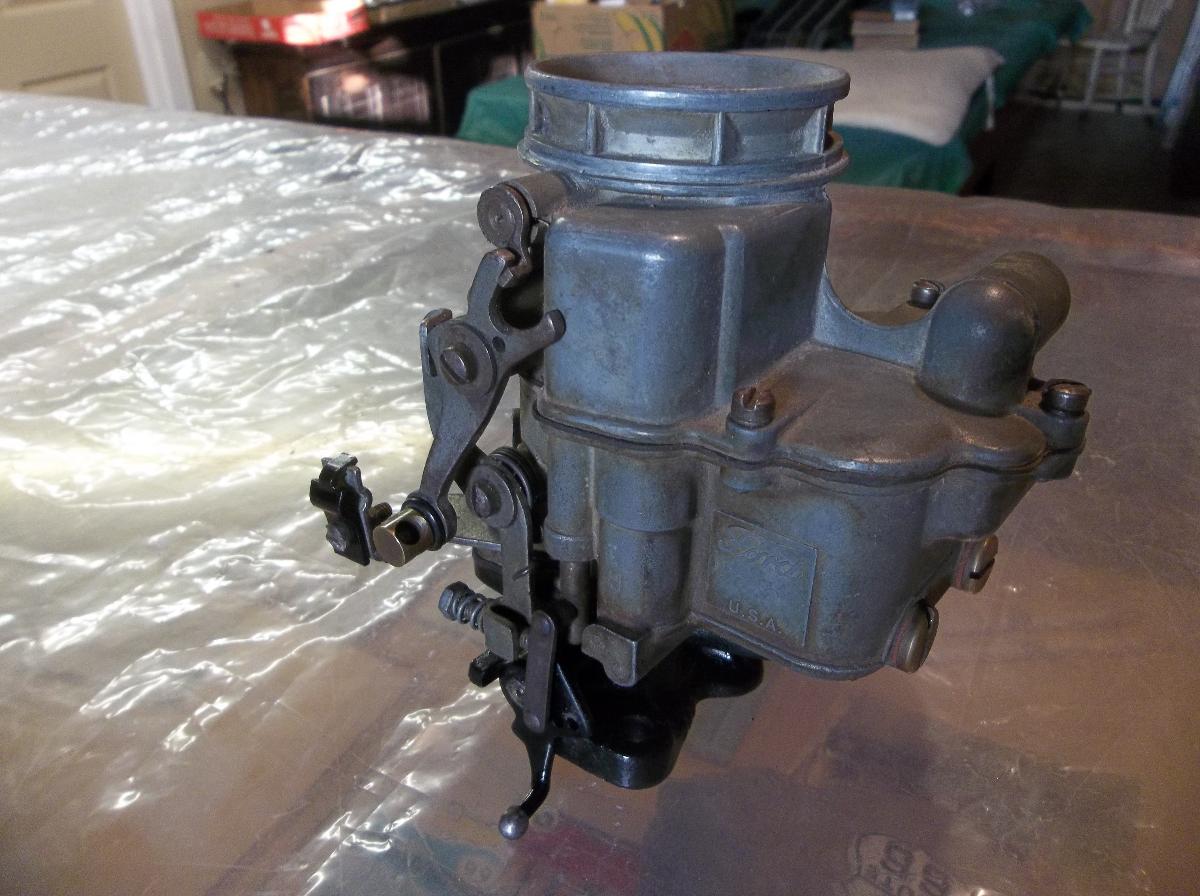

I'm thinking that a stock factory original 1949 Ford carburetor should look like this one.

Three photos .......

nelsb01

05-16-2024 @ 5:19 AM

reply profile send p.m.

Senior
Posts: 983
Joined: Oct 2009

And have 8BA on it.

FordFreak

05-16-2024 @ 5:37 AM

reply profile send p.m.

New Member
Posts: 116
Joined: Nov 2013

Looks like the Holley 94 on my '52 F1.

1952 Ford F1 Pickup
1965 Falcon Sprint

Grant

05-16-2024 @ 4:40 PM

reply profile send p.m.

Senior
Posts: 536
Joined: Oct 2009

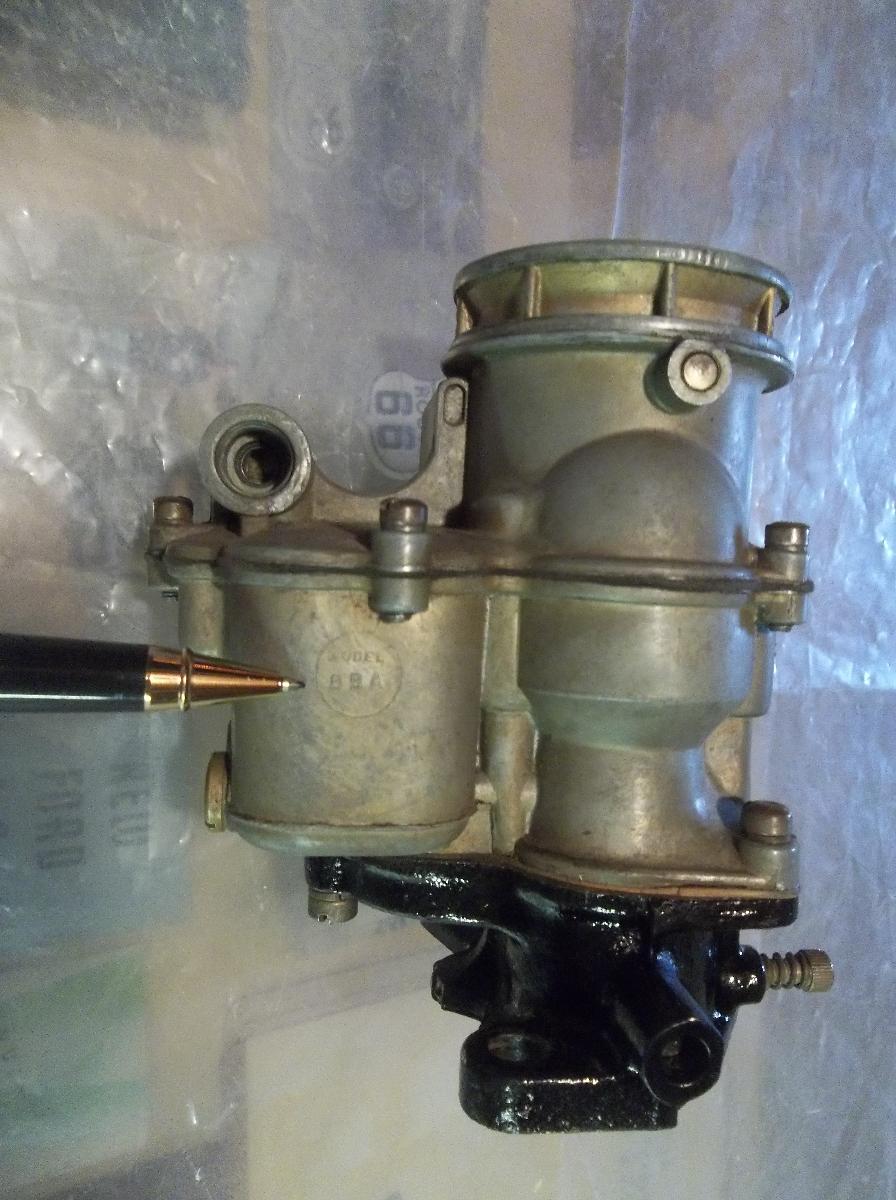

Bruce is right. Here's what the 8BA looks like:

kubes40

05-17-2024 @ 5:40 AM

reply profile send p.m.

Senior
Posts: 3406
Joined: Oct 2009

Thanks guys. So his car is not "completely stock" as claimed.

Mike "Kube" Kubarth

42oink

05-17-2024 @ 9:21 AM

reply profile send p.m.

New Member
Posts: 123
Joined: Nov 2010

Gee guys, Thought I knew a little bit about these old Fords, and am still learning more. But I have no idea how a Ford script and #94 on the outside of a carburetor can affect the performance of an engine. Will be interested to learn. Thanks. 42OINK

kubes40

05-19-2024 @ 11:46 AM

reply profile send p.m.

Senior
Posts: 3406
Joined: Oct 2009

Part of offering you worthy advice is knowing exactly what you have there. You did state the engine was 100% stock. Well, it isn't.
Offering advice to fix a 100% stock engine can and often will vary from advice that pertains to a non-stock vehicle.
I believe from what you'd been advised thus far, you be well served to locate a correct carburetor and have that rebuilt by a person that knows them inside and out. Charlie Schwender gets my vote for that service.
He may even have a carb. for you.

By the way, you state the engine idles smooth at 5550 rpm. That's idle speed?

Mike "Kube" Kubarth

This message was edited by kubes40 on 5-19-24 @ 11:47 AM
