EFV-8 Club Forum / General Ford Discussion / 36 V8 Pick-Up Radiator and Generator Mount?

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 36 V8 Pick-Up Radiator and Generator Mount? -- page: 1 2

RicMck

02-02-2024 @ 5:15 PM

reply profile send p.m.

Member
Posts: 4
Joined: Feb 2024

Saddly today my generator mount broke and pitched the fan into my radiator.

I have several questions.
Does anyone repair these old radiators? Mine is the original style with the CU tubes.
If no who makes replacement radiators?
Generator mount? Are there newer (better metal) generator mounts? If yes who makes them? I have another generator with mount (but it's also old and well used). Or do I have to switch out the generator for an alternator setup?

Thanks a Bunch

Rick McKenney
Seattle, WA
1936 V8 Pick-Up

nelsb01

02-02-2024 @ 8:15 PM

reply profile send p.m.

Senior
Posts: 982
Joined: Oct 2009

If it is an original style mount for the generator, then you will need a new intake manifold.
It sounds from your description that that is not the case. A photo may help.

As for radiator repair -- I know that there are still old school radiator repair shops out there - at least one in MN -- not close to WA.

ford38v8

02-02-2024 @ 9:13 PM

reply profile send p.m.

Senior
Posts: 2762
Joined: Oct 2009

I assume that you have insurance, which will reimburse you for an NOS radiator if you can find one. Comprehensive insurance will not pay for the broken generator mount, which was the cause of the damage.

Alan

40 Coupe

02-03-2024 @ 5:34 AM

reply profile send p.m.

Senior
Posts: 1676
Joined: Oct 2009

About $1,000. for a radiator recore, which is less costly than a new brass radiator.

Kens 36

02-03-2024 @ 9:18 AM

reply profile send p.m.

Member
Posts: 343
Joined: Oct 2009

Rick,

If you are not a member of the Early Ford V-8 Club, that would be a good investment. There is a great regional group right there in Seattle & the members may be able to help you and may know of local radiator repair shops.

Check out the group website at https://efv8psrg.org/.

Ken

carcrazy

02-03-2024 @ 9:50 AM

reply profile send p.m.

Senior
Posts: 1659
Joined: Oct 2009

If by generator mount you are referring to the part of the generator that bolts to the front of the intake manifold, I may be able to help you.

I have two 3-brush generators, believed to be for 1937, which have good mounts. These generators are cores which would have to be rebuilt.

Let me know if these are of interest.

RicMck

02-03-2024 @ 1:37 PM

reply profile send p.m.

Member
Posts: 4
Joined: Feb 2024

Thanks for the suggestions. I'm now wondering if I have the wrong intake manifold. Are the generator mounts different (heights)? The generator it almost all the way extended (top of the range) to get the belt tight. It seems like the belt is too long, but from what I know they are all one length for the 32-36.

I think I found a place in Seattle that can recore it. However I will first try to solder up damaged tube(s).

Rick McKenney
Seattle, WA
1936 V8 Pick-Up

carcrazy

02-03-2024 @ 3:33 PM

reply profile send p.m.

Senior
Posts: 1659
Joined: Oct 2009

You can get a belt of the proper length if yours is too long by taking it to an auto parts store, like NAPA, to determine the width and cross section you need. Take a piece of clothes line or rope and wrap it over the grooves of the pullies when your generator is mounted in the middle of its adjustment range to determine the length of the belt you need.

C.W. Moss lists a belt #40-8620-A for your 1936 Ford Pickup. They list it as being 55" long.

This message was edited by carcrazy on 2-3-24 @ 5:14 PM

40 Coupe

02-04-2024 @ 5:41 AM

reply profile send p.m.

Senior
Posts: 1676
Joined: Oct 2009

The 33-36 intake manifold mount for the generator is taller than the later manifolds. Post some photos of your intake manifold.

RicMck

02-04-2024 @ 12:44 PM

reply profile send p.m.

Member
Posts: 4
Joined: Feb 2024

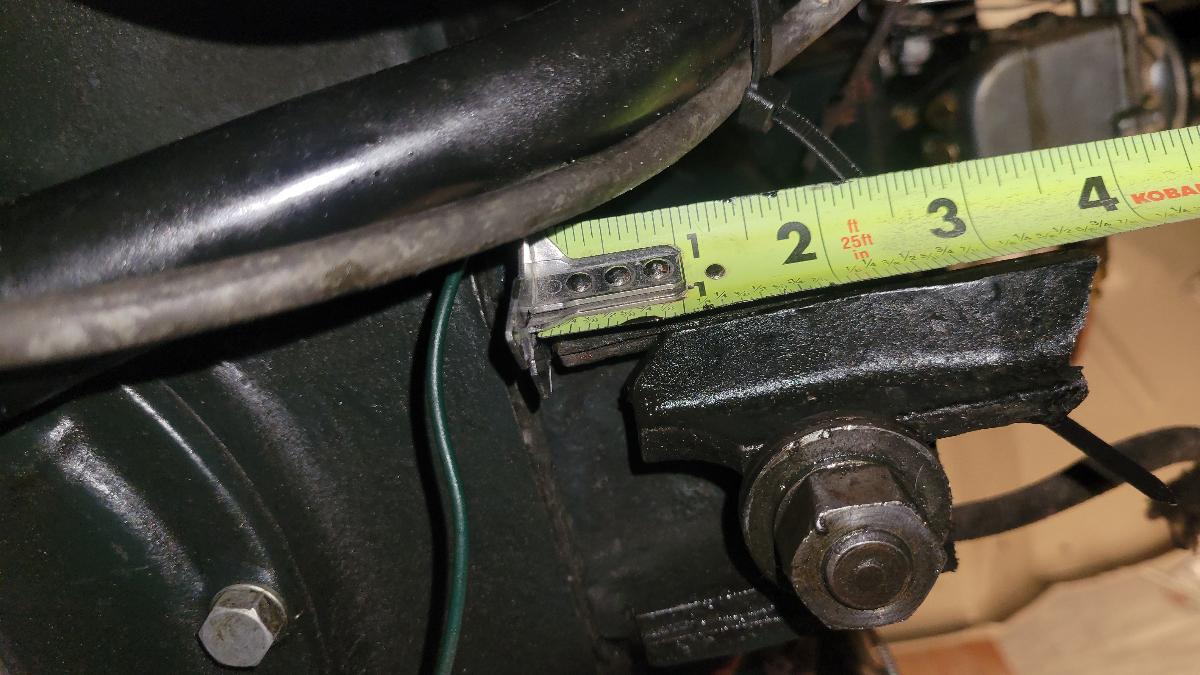

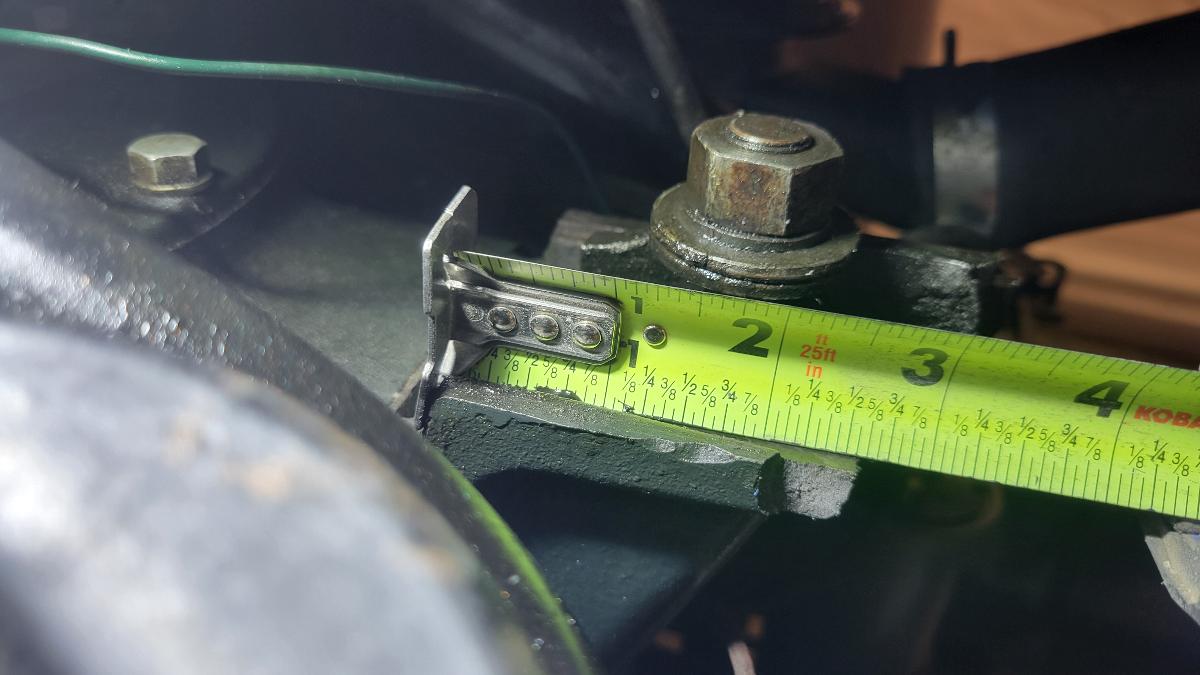

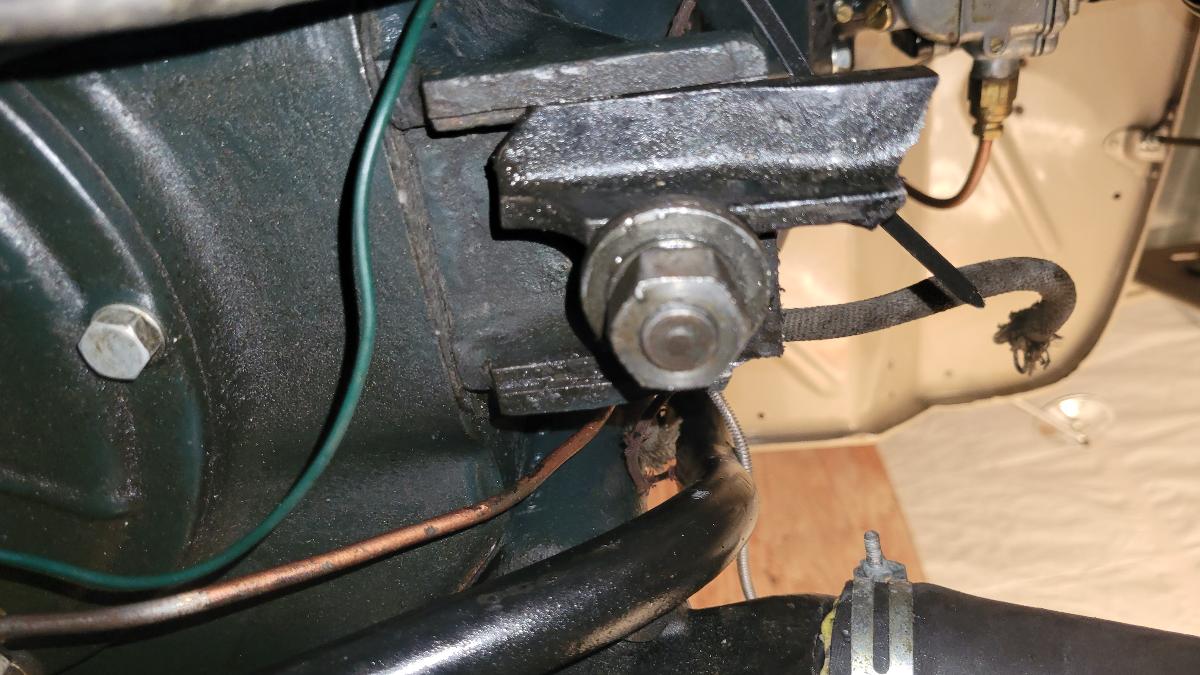

Thanks. My belts (I have several) have the correct part #, the OD is 56". The generator mount looks to be about 2-5/8" high.

I have another generator with what looks like a good mount.

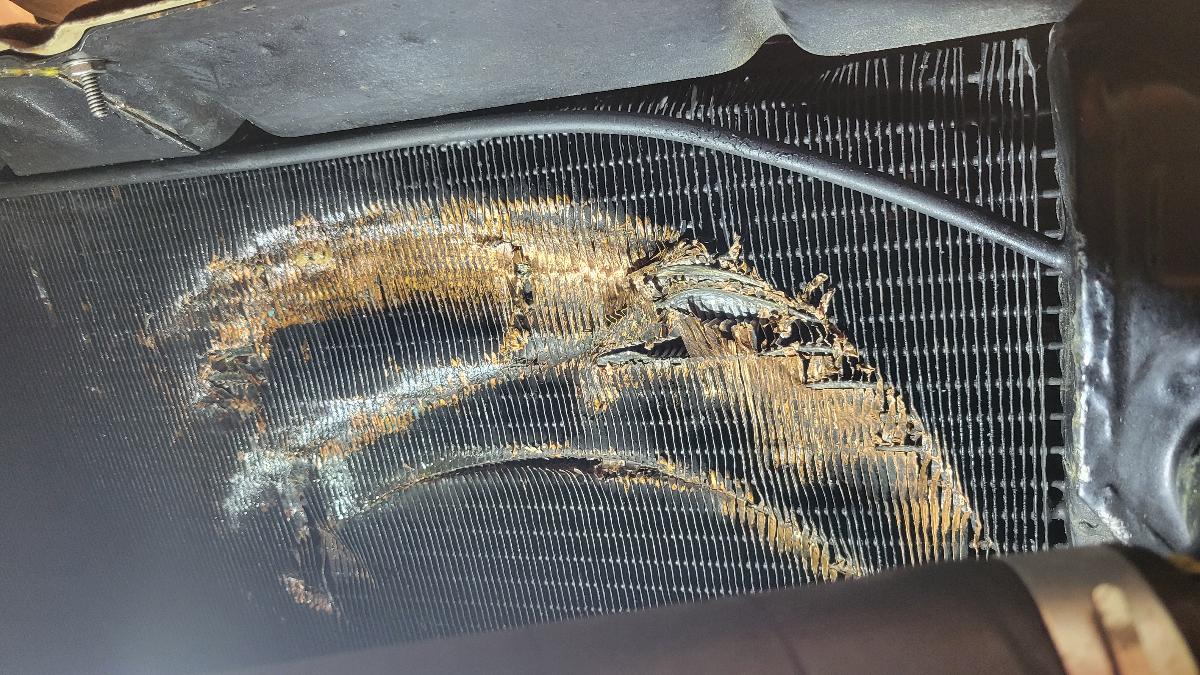

From what I remember I think only 1 radiator tube is damaged. I can't work on it until the spring (working away from home for a few months).

What is the correct height of the 36 generator mount? Mine might be a 32.

In the Spring, I will get the radiator out and see if I fix the leak and straighten out some of the fins. If no I will either get it recored or try to find another one somewhere.

I try to get a shorter fan belt, and I'm also going to try to weld up a secondary support bracket, using some 1/4 or 3/8" plate front and back of the generator plate with a through bolt at the top, and piece of angle welded on the rear one, and hose clamp it around the generator.

What's the difference between the 32-36, and the 37 generator adjustment mount?

Rick McKenney
Seattle, WA
1936 V8 Pick-Up

This message was edited by RicMck on 2-4-24 @ 12:47 PM

<< previous || next >>

PAGE: 1 2
