EFV-8 Club Forum / General Ford Discussion / Hydraulic brake conversion question

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Hydraulic brake conversion question -- page: 1 2

hotroddoc

04-16-2022 @ 1:23 PM

reply profile send p.m.

Member
Posts: 23
Joined: Mar 2019

Hello,

I am looking for suggestions for converting my 36 5 window coupe from mechanical brakes to hydraulic. I want to keep the original wheels. Does anyone have any suggestions on what vendor to use to purchase the backing plates and master cylinder (plus whatever else I may require). would be nice to be able to purchase a complete kit.

Appreciate your help,
Gary

51woodie

04-17-2022 @ 7:25 AM

reply profile send p.m.

Senior
Posts: 516
Joined: Jan 2017

Contact Boling Brothers. I put a set on my '46 Coupe, and they are working well. Check out the articles in the tech section, as they give installation instructions for various years.

https://www.bolingbrothers.com/brake-kits-1935-1936/

https://www.bolingbrothers.com/tech/

1931 Flamingo

04-17-2022 @ 7:39 AM

reply profile send p.m.

Member
Posts: 388
Joined: Nov 2019

krylon32 on the FordBarn is a dealer for Boling and he offers 10% OFF.
Paul in CT

37RAGTOPMAN

04-17-2022 @ 7:53 AM

reply profile send p.m.

Senior
Posts: 1962
Joined: Oct 2009

hi horroddoc
I do not think you can keep the wide five wheels, with this conversion,,
I might be wrong,
the other WAY is to us 39 to 48 backing plates, 42 -48 is better, easier to adjust, and better ft wheel cylinders, bigger pistons
and you can use your original brake drums, and use the wide five drums
I did this with my 37,
hope this helps, 37Ragtopman do your reserch before buying, you can put a want in the CLASSIFIEDS on this web site,

wmsteed

04-17-2022 @ 8:00 AM

reply profile send p.m.

Senior
Posts: 613
Joined: Oct 2009

Gary, I think you are going to be hard pressed to purchase a 'kit' to convert your mechanical brakes to hydraulic, while retaining the stock 36-39 wheels.
Most conversion brake kits available from the after-market vendors will be for conversions to later model 5 0n 5.5 bolt pattern wheels with later model hub caps.
My suggestion would be to hunt down a set of '42-48 backing plates, they are quite common and are better brakes than the '39-41.
You will need a set, front/rear '38-39 drums.
The '38-39 drums are quite hard to find, you might have to have a set of drums rebuilt, there are a couple of company's that do this.
You will also need '40-41 front spindles and a '39 Ford peddle assembly.
You will need a hand operated parking brake assemble which can be constructed using '40-41 parking brake cables that operate via a modification to the 36 parking brake handle assembly on the rear of the trans.
There are people that will tell you that there are conversions available to modify the '36 spindles to accept the later drums, for my money the conversion to '40-41 spindles is a clean straight forward simple solutions.

Bill
36 5 win delx cpe

51504bat

04-17-2022 @ 8:03 AM

reply profile send p.m.

Member
Posts: 260
Joined: Apr 2020

Try the Early V8 Garage
http://www.earlyv8garage.net/
Call: (626) 338-2282

1217 N. Azusa Canyon Road,
West Covina, CA 91790-1004

We manufacture HERE IN THE USA our exclusive no-modification kits to install early Ford/Lockheed or new Lincoln-Bendix brakes on your 1932-1938 Ford. We supply ALL fittings, hoses, brackets, and fasteners required, including pre-bent lines that fit. No cutting or welding is required, and NO drilling is required on 1932-1933-1934 models. One (1) extra hole is required (in the LH rear radius rod for the rear T fitting) on 1935-1936 models, and seven (7) extra holes are required (in the rear radius rods for the rear T fitting and line clips) on 1937-1938 models.

______________
No signature

alanwoodieman

04-17-2022 @ 9:43 AM

reply profile send p.m.

Senior
Posts: 868
Joined: Oct 2009

I put a set of the floaters on a 36 sedan and they work as good or better than a hydraulic set up and whole lot less trouble to install and you get to keep all the original hubs/wheels/backing plates. I have also done this to two model a's, a 34 coupe

hotroddoc

04-19-2022 @ 4:44 PM

reply profile send p.m.

Member
Posts: 23
Joined: Mar 2019

Thanks to everyone for for the comments and suggestions. I looked at the Boling brothers website and the Early V8 garage website. It looks like you can't keep your original wheels with their kits.

trjford8

04-20-2022 @ 8:05 AM

reply profile send p.m.

Senior
Posts: 4218
Joined: Oct 2009

Flathead Ted on the Fordbarn produces the brake floaters. A lot of people swear by the floaters and you can keep your backing plates, drums, and wheels. Do a search on this site and the Fordbarn concerning the floaters.

wmsteed

04-20-2022 @ 8:40 AM

reply profile send p.m.

Senior
Posts: 613
Joined: Oct 2009

When I converted the brakes on my '36 coupe from mechanical to hydraulic in 1952 I harvested parts from a '40 and '41 Fords. Used '40 steering gears, '39-41 brakes with 5-5.5 lug wheels. I jury-rigged the '41 master cylinder, which for quite awhile worked well. Used many styles of aftermarket hub caps that were constantly being stolen, finally went to '46 Ford caps which lasted for almost ten years.
Over time I came to dislike the early brakes, very difficult to keep in adjustment with the lower and midway adjustment. The clabbered together master cylinder also became a problem in heavy traffic stopping. Moved from Idaho/Nevada in '56 to Los Angeles.

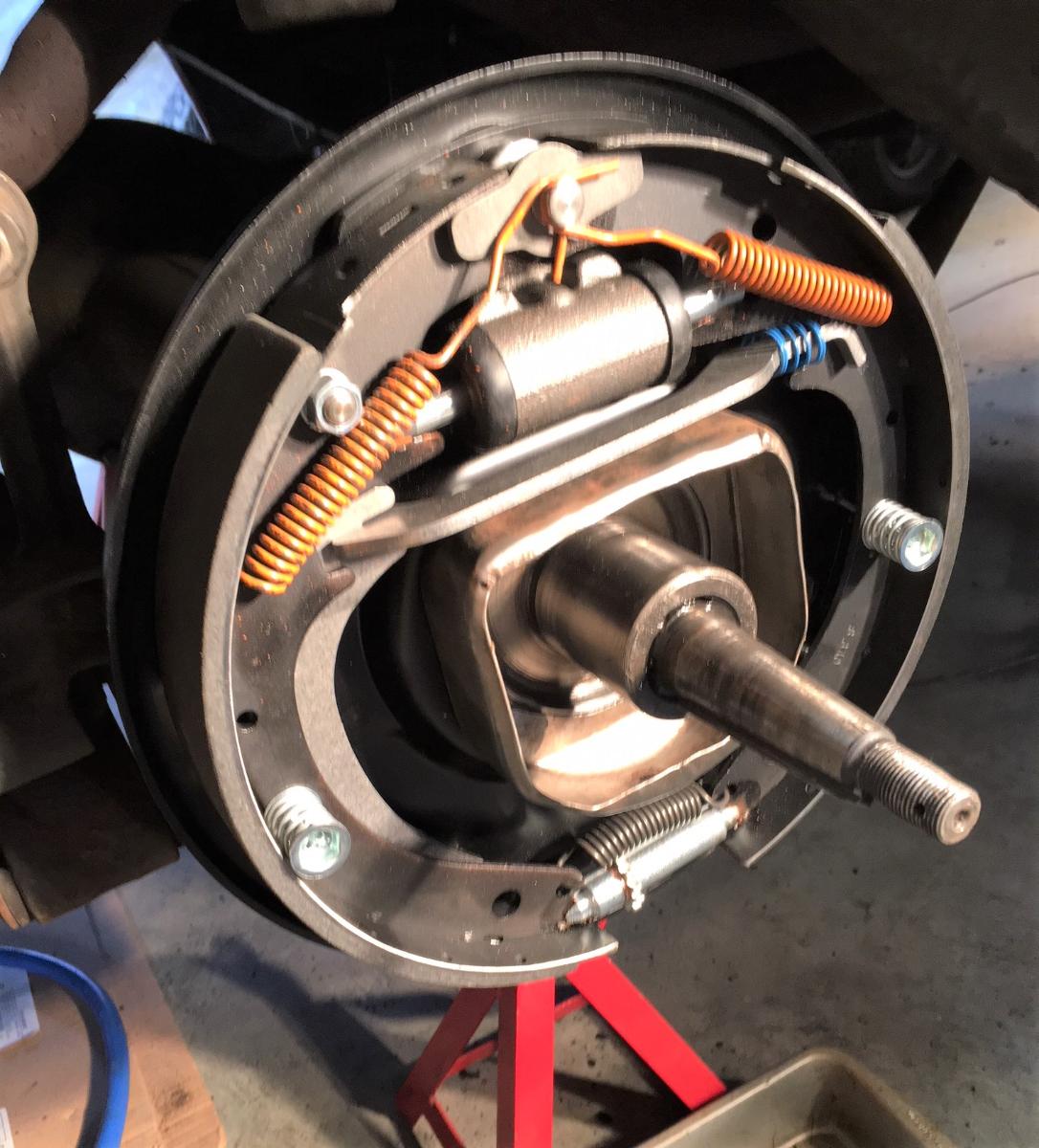

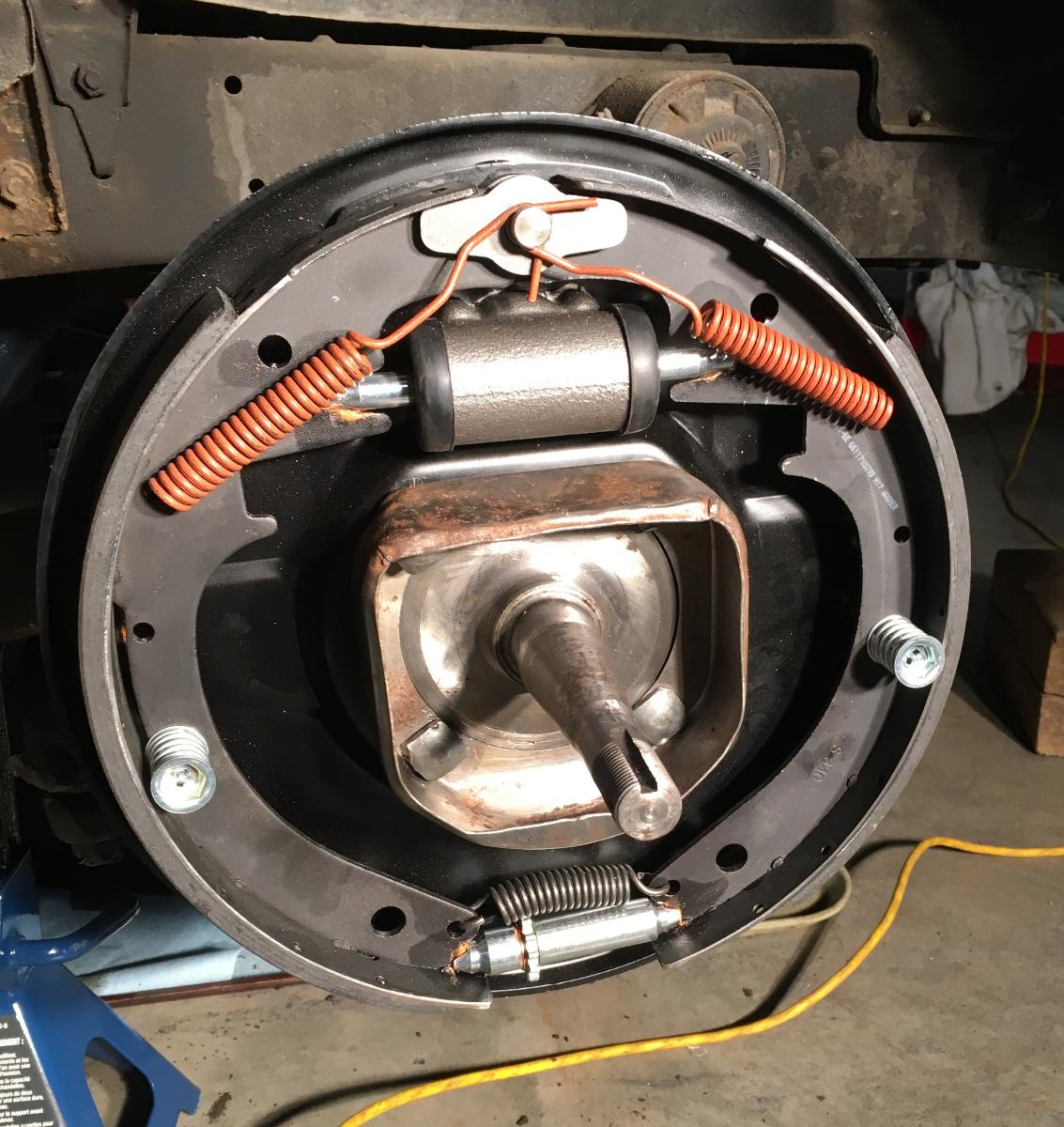

Doing some investigation I found that a '39 peddle assembly would bolt right into the '36 chassis with very little modifications. Since I had already converted the front axle to '40-41 spindles the 38-39 drums would work perfectly with '42-48 backing plates. The wide five 36-39 wheels and '36 caps fit like Henry meant them to be on the car.
I have converted several '36-38 Fords to the components I have suggested with no problems.
The one problem in this day and age is the '37-39 drums.. Drake has the peddle assembly, the '42 -48 backing plates, etc., should be pretty easy to obtain.
If you are going to do the brakes i would strongly suggest that you convert the steering gears to '37-40... A bolt in application that is almost like adding power-steering compared to the '36 worm-sector steering.

Bill
36 5 win delx cpe
