EFV-8 Club Forum / General Ford Discussion / Heater fan control switch

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Heater fan control switch

Snappy

03-06-2019 @ 6:21 PM

reply profile send p.m.

Member
Posts: 2
Joined: Mar 2019

I have a '48 Business Coupe that I'm building. It came with a heater that turns clockwise for defrost and CC for heat. The heater is stamped Eaton on the mounting. I have found a reversible motor that will fit (original one was missing). I am in search of the fan control switch and wiring diagram to wire the switch. Can anyone out there help? Thanks

Drbrown

03-06-2019 @ 9:05 PM

reply profile send p.m.

Senior
Posts: 570
Joined: Nov 2013

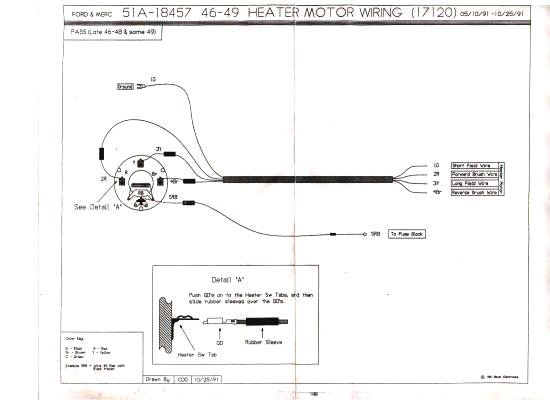

Here's the wiring diagram for '46 -'49.

To find a switch, you'll need to look thru the Classified here, the Swap Meet at the Ford Barn, the HAMB forum sales, and Ebay in their Ford Flathead section. I recommend a used or NOS switch rather than a repro (if there are any around).

Do not run power to it from your ignition switch. Use a fused power source from battery.

PS: My late '47 has tan knob with red lettering/markings. I believe a '46 would have black lettering.

This message was edited by Drbrown on 3-8-19 @ 8:42 AM

Darrell S Johnson

03-07-2019 @ 7:12 AM

reply profile send p.m.

Member
Posts: 7
Joined: Oct 2015

There are a couple of switches on ebay, a little pricey.

ken ct.

03-07-2019 @ 8:28 AM

reply profile send p.m.

Senior
Posts: 1513
Joined: Jan 2010

Their pricey because their hard to find and are usually missing the chrome bezel that goes ofer the outer nut. Also they must have 4 connections on back side NOT 2 as on most of them you find. ken ct

Snappy

03-07-2019 @ 9:02 AM

reply profile send p.m.

Member
Posts: 2
Joined: Mar 2019

Thanks to all that responded.

kubes40

03-07-2019 @ 11:03 AM

reply profile send p.m.

Senior
Posts: 3396
Joined: Oct 2009

These show up on eBay very often. The 42 - 48 switches are in fact fairly common. The guy asking $125 is dreaming. Keep an eye out for a NOS switch.. the real money is around $65 or so.

Mike "Kube" Kubarth

GK1918

03-10-2019 @ 7:30 AM

reply profile send p.m.

New Member
Posts: 127
Joined: Aug 2016

My 46 has red letters on the knob. For the life of me I can't get the
idea of turning my knob clockwise for defrost. Yes I know what it suppose to do but then my feet get starved of heat. So I run on heat and just
crack the defrost cable. Yes the air maybe a little cool, but I grew up
with no defrosters were not invented yet. Those in the 1930s many had
Arvin heaters my 36 was gas Southwind. So you have a fan on the dash
remember rubber blade fans or vacuum fans it did blow cooler air but it
is blowing ambient air too. Another haunt is why a low that runs through
the switch resistor? maybe for Florida but here, high is wimpy and low is out of the question. Still in my mind, my son bought a good shape 1941 Chevrolet for resale, it had under seat heater and that ruled. Gotta find one. Oh well 3 more months till spring which is June.
