Posted By |
Discussion Topic:
37 ignition lock assembly
-- page:
1
2
|
|
1937sedandelivery |
07-24-2017 @ 11:44 AM
|
|
|
Senior
Posts: 501
Joined: Jul 2014
|

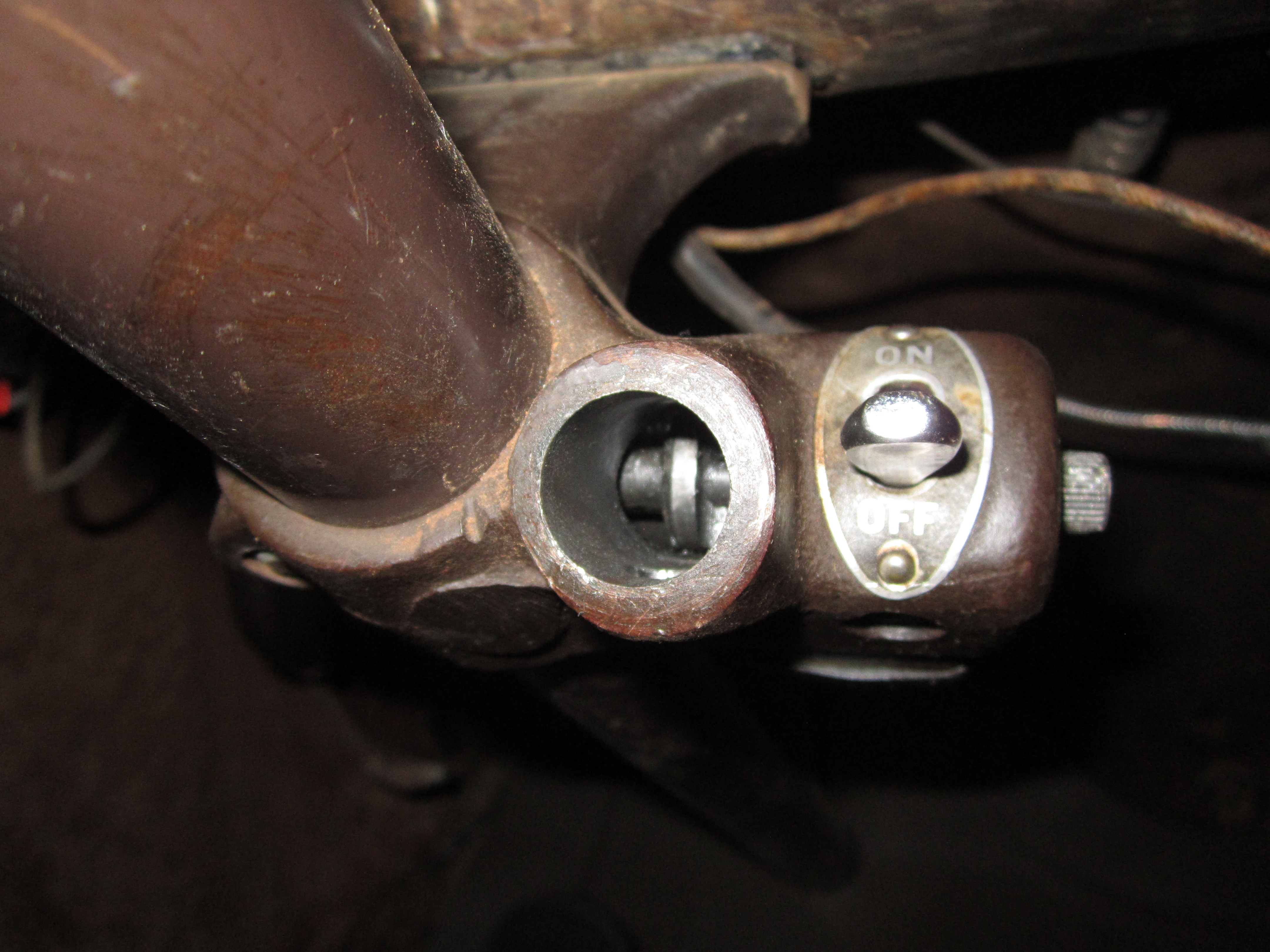

Hi, I had to drill out my 37 ignition lock to remove the cylinder, that was a year ago. Now that I am putting it back together I don't recall what all pieces go into it. I purchased a new cylinder. As shown in the picture, there is the main internal piece still in place. It easily slides horizontally back and forth. Should there be some sort of spring tension on it? I have the end chrome piece (knob like). Is this pressed onto the splined shaft that is sticking out? I have not removed the electrical back plate or anything else. Thanks, Gregg
|
40 Coupe |
07-25-2017 @ 4:17 AM
|
|
|
Senior
Posts: 1678
Joined: Oct 2009
|
At the bottom of the lock cylinder you need a pin to hold the new cylinder in place. Looks like you removed the special chrome cap screw. It has a spring inside of it and a steel ball that act upon the switch lever and make it snap in the ON or OFF positions, it also puts some tension on the lock slide bolt. The cap screw also has a special lock washer. Roy Nacewicz has the cap screw spring ball and lock washer.
This message was edited by 40 Coupe on 7-25-17 @ 4:19 AM
|
1937sedandelivery |
07-25-2017 @ 7:34 AM
|
|
|
Senior
Posts: 501
Joined: Jul 2014
|

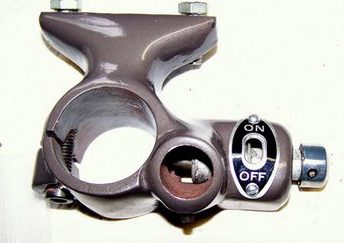

Thanks 40Coupe. I will hit up Roy for those parts, also need some other black oxide screws/nuts anyway. I am not 100% clear on how it all goes together. If someone has or knows where an exploded assembly view is available, that would really help. Is the end chrome cap press fit? The attached pic shows a cap with what looks like a set screw in the side to hold the cap on??? gregg
|
Don Rogers |
07-25-2017 @ 12:52 PM
|
|
|
Senior
Posts: 504
Joined: Oct 2009
|

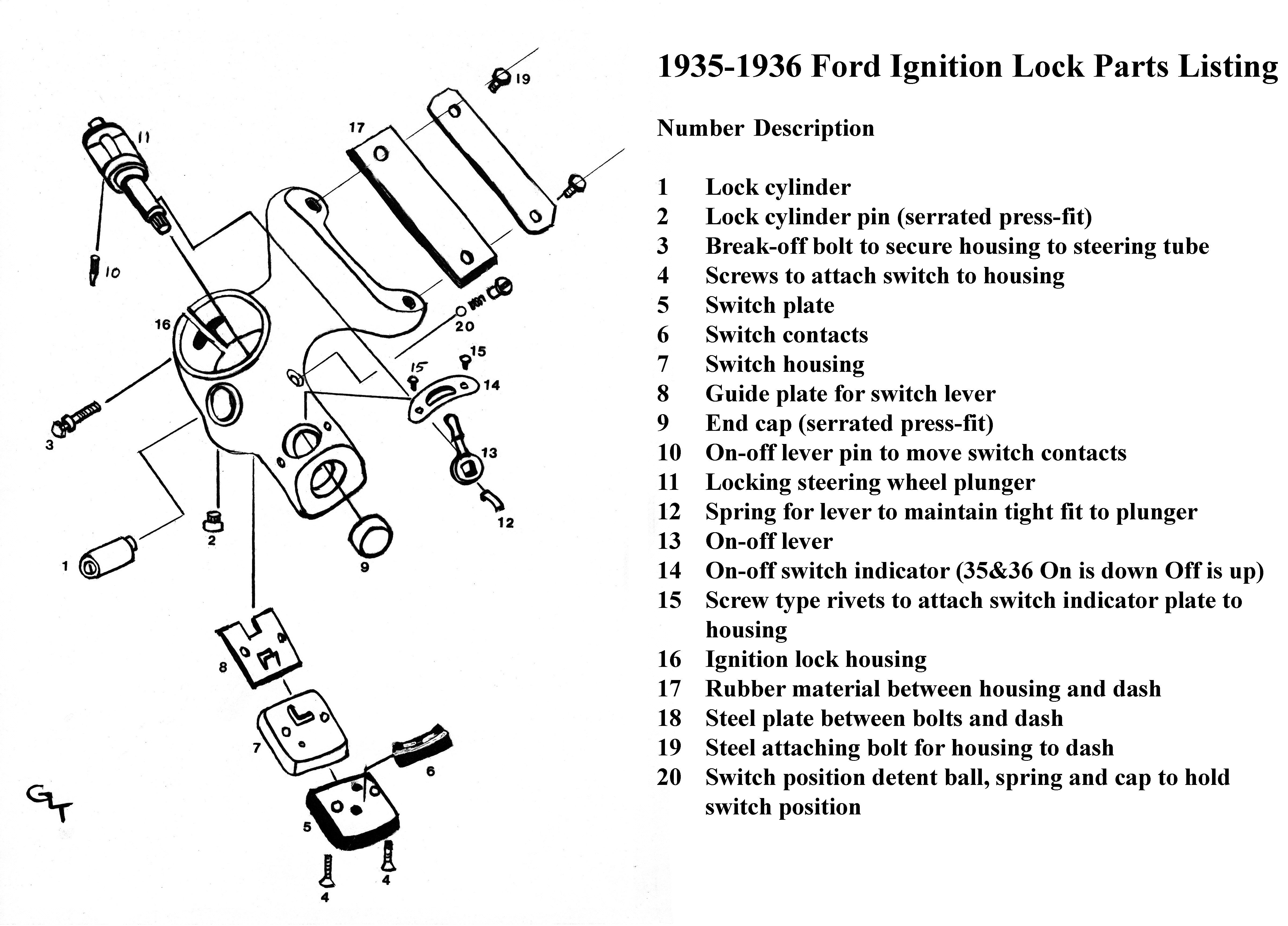

37sedandelivery, Here are 4 images of a 35/36 lock assembly that should help. The 37 is similar to the 35/36. The first image is an exploded view drawn by Gary Tosel and the last 3 images are a take apart discription I ,wrote up years ago. Hope it helps!!!
|
Don Rogers |
07-25-2017 @ 12:55 PM
|
|
|
Senior
Posts: 504
Joined: Oct 2009
|
smaller
|
Don Rogers |
07-25-2017 @ 12:56 PM
|
|
|
Senior
Posts: 504
Joined: Oct 2009
|

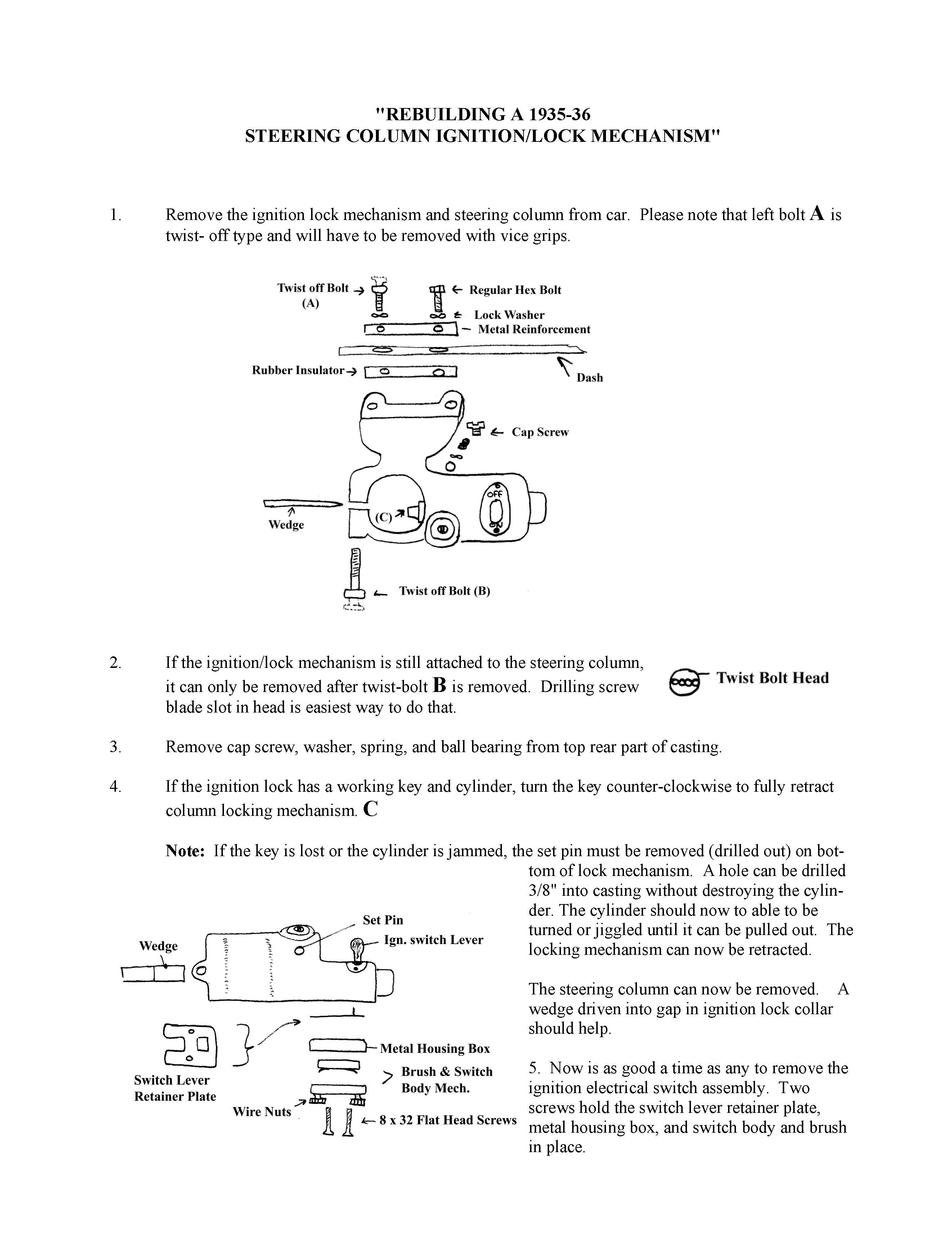

Take apart 01
|
Don Rogers |
07-25-2017 @ 12:57 PM
|
|
|
Senior
Posts: 504
Joined: Oct 2009
|

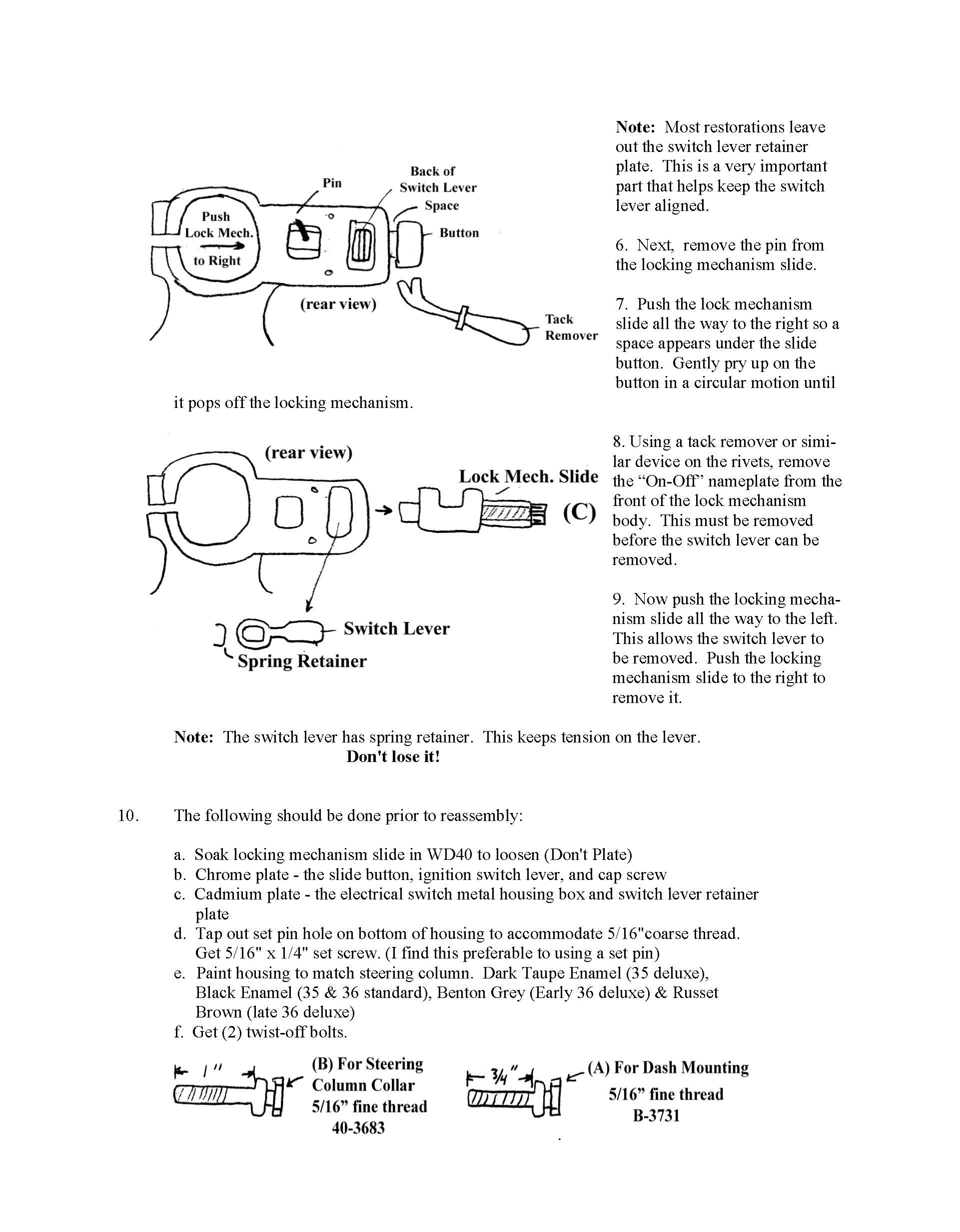

Take apart 02
|
Don Rogers |
07-25-2017 @ 12:57 PM
|
|
|
Senior
Posts: 504
Joined: Oct 2009
|

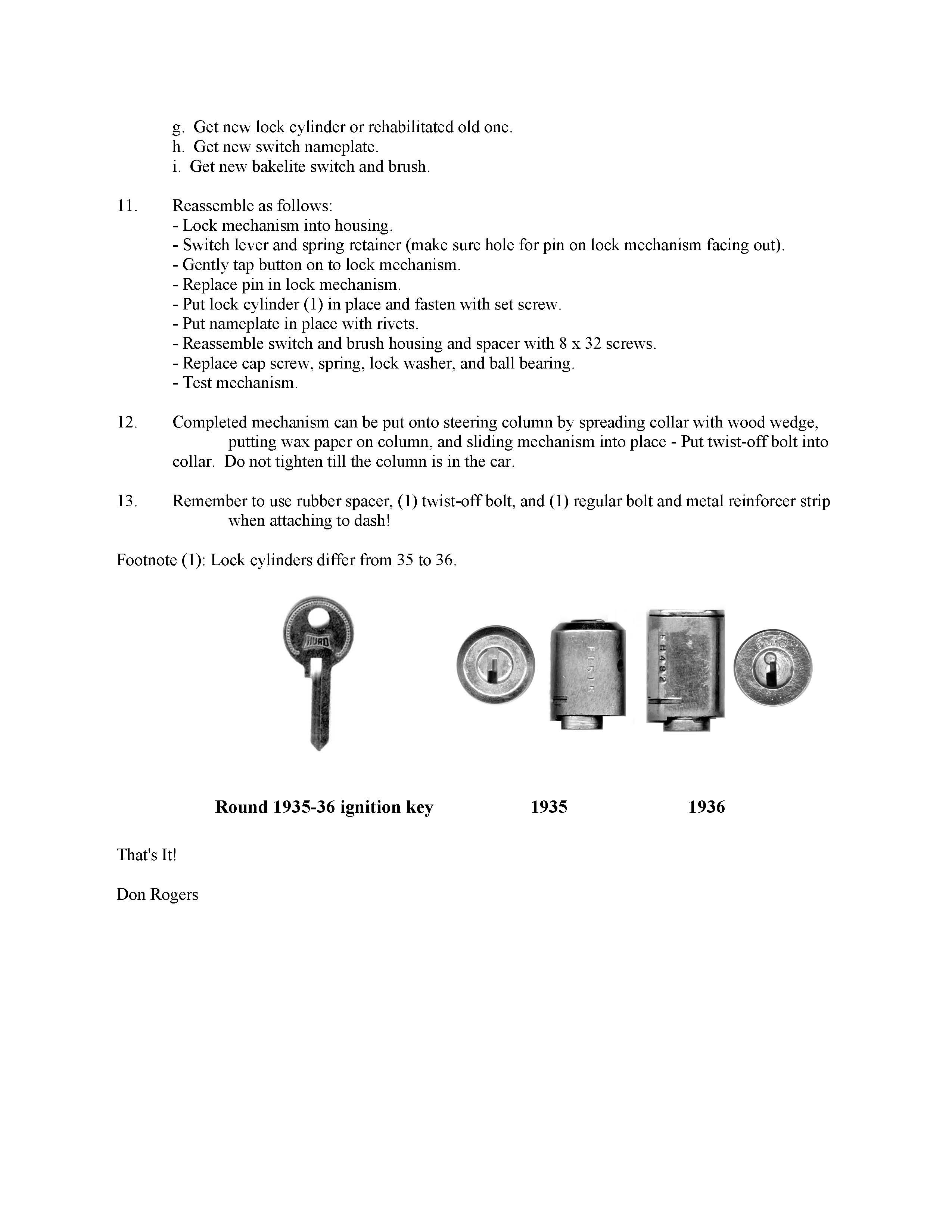

Take apart 03
|
1937sedandelivery |
07-25-2017 @ 1:10 PM
|
|
|
Senior
Posts: 501
Joined: Jul 2014
|
Hey Don, U R da Man! This should get me on my way back into the garage with something meaningful to accomplish. Mucho Thanks, gregg
|
1937sedandelivery |
07-25-2017 @ 9:30 PM
|
|
|
Senior
Posts: 501
Joined: Jul 2014
|
Don, Again, thanks for the information and details. It allowed me to figure my lock assembly out. It is now all put back together and works! I tapped a 5/16-24 (NF) hole instead of course threads and bought a set screw at Ace Hardware. It really is slick. And, I took the liberty to pull your documents together in a PPT doc and do a little swizzling, then published it as a PDF file, attached. Hope it works for you. What a great piece of info for an often little understood chunk of the 35/36 (37) Ford. I can modify it for you any way you want. gregg
|
