Ford Aluminum V8 aircraft engine
-- page:
1
2
|
|
Stroker |
05-09-2017 @ 7:55 AM
|
|
|
Senior
Posts: 1460
Joined: Oct 2009
|

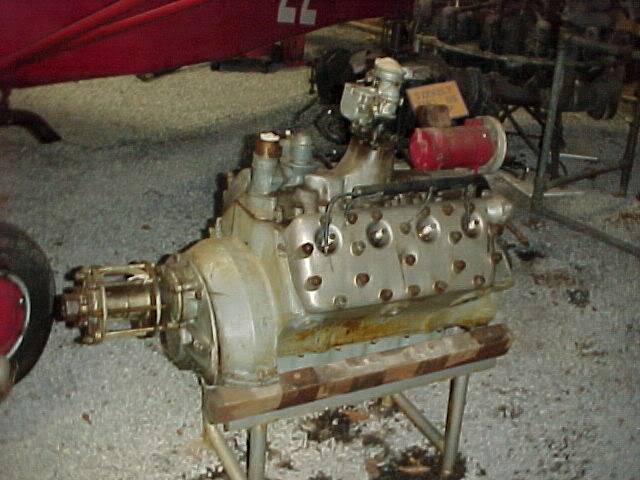

Question for the "experts" on this forum. Does anyone know how many of the pictured all-aluminum Ford V8 aircraft engines were made? This particular engine was in "limited production" for a while. These were mounted "backwards" in the airplane, and had a reduction gear built into the bell-housing to reverse the rotation in order to be compatible with "off-the shelf" propellers.
|
Stroker |
05-09-2017 @ 8:00 AM
|
|
|
Senior
Posts: 1460
Joined: Oct 2009
|

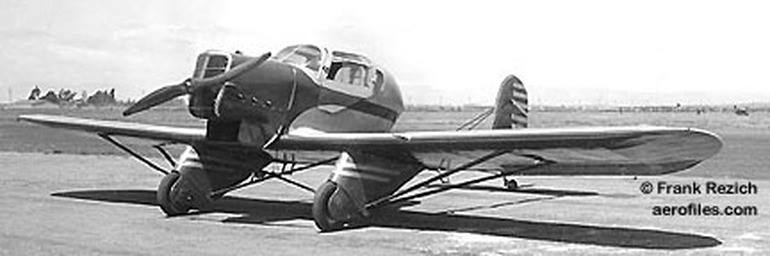

What's interesting to me is the intake manifold that mounts the carb "backwards". Ford supplied the engines as well for the 1935 McGaffey Airplane Development Company's little Aviate pictured below. This small plane featured a 1935 Ford grille as well as using Ford brake drums and a 1935 Ford radio.
This message was edited by Stroker on 5-9-17 @ 8:02 AM
|
3w2 |
05-09-2017 @ 5:42 PM
|
|
|
Senior
Posts: 835
Joined: Oct 2009
|
Hmmm. Normally aluminum oxide is not reddish-brown like that on the skirt of the block in your photo. Aluminum heads, sure, but the block given what in your photo appears to be iron oxide?
|
Stroker |
05-09-2017 @ 6:13 PM
|
|
|
Senior
Posts: 1460
Joined: Oct 2009
|
3w2: Like you, I don't KNOW. It has been "reported" in many aircraft publications as being an aluminum block. I'm actually looking for documentation, rather than "speculation". Someone "out there" has some answers, I'm sure. Like you, I believe that there appears to be "rust" in the area above the oil pan/block parting line area. Whether this is just the migration of a rust-stain is on my part just a guess.
This message was edited by Stroker on 5-9-17 @ 6:18 PM
|
TomO |
05-10-2017 @ 7:08 AM
|
|
|
Senior
Posts: 7252
Joined: Oct 2009
|
The engine pictured appears to be the one at the Rhinbeck Aerodrome. That engine has a cast iron block, aluminum heads and an aluminum oil pan according to articles about the Arrow Sport F. http://oldrhinebeck.org/aircraft-engines/ https://generalaviationnews.com/2015/07/13/in-search-of-the-700-airplane/
Tom
|
Stroker |
05-10-2017 @ 7:24 AM
|
|
|
Senior
Posts: 1460
Joined: Oct 2009
|
TomO. Sir, you NAILED it. Thank You for the information and link. A group of fellow aviators and I were "debating" this oddball engine, and I figured if I asked one of my fellow EV8'ers, they would know. Thank's again.
|
Stroker |
05-10-2017 @ 7:29 AM
|
|
|
Senior
Posts: 1460
Joined: Oct 2009
|
It turns out that they built 103 Arrow Sport Model F's, with CAST IRON Ford V8's. So..my original "premise" was faulty. TomO got me "straightened out" though, as only he could.
|
TomO |
05-11-2017 @ 6:57 AM
|
|
|
Senior
Posts: 7252
Joined: Oct 2009
|
Your are welcome. I remembered seeing that engine at the Aerodrome and Google helped me out. If you are ever in the NY eastern half in the summer months, stop and visit the Aerodrome. They put on interesting dog fights as well as having a great display of aviation history, mostly before WWII. I used to visit regularly in the last century, but don't get to that part of the country much since I retired. Tom
This message was edited by TomO on 5-11-17 @ 6:58 AM
|
4dFordSC |
05-11-2017 @ 1:12 PM
|
|
|
Member
Posts: 266
Joined: Oct 2009
|
Don't know if it was an Arrow or not, but my father told of flying a Ford flathead powered aircraft once early in his career and recalled that it was disturbingly underpowered. He and an acquaintance took off from the Oakland airport toward San Francisco one morning and skimmed the waves most of the way across the bay as they struggled to gain altitude with the SF skyline looming ever larger. They finally got high enough that he could turn around, and they immediately headed back to Oakland and landed without further ado. Having survived the experience, Dad went on to a 30+ year career as an airline pilot with United and Northwest.
|
Daryl Middlebrook |
05-11-2017 @ 2:11 PM
|
|
|
Member
Posts: 1
Joined: Aug 2015
|
For those interested-----I have a Ford aircraft engine. The cylinders are arranged in an "X" pattern around the crankshaft when looking from the front. There are 4 cylinders in the front row that form the "X" pattern. Then there are 4 more cylinders directly behind the front 4. Best described as an 8 cylinder twin row radial engine. Overhead camshafts on all cylinders. Dual ignition. Ford data plate on the engine. This experimental engine was built by Ford to power the Tri-Motor. According to a old gentleman that I met years ago, he test-flew the Tri-Motor with this engine. He said that it ran hot. Shook badly. And was WAAAY under-powered. This engine can be seen at the CURTISS museum in Hammondsport NY.
|
