EFV-8 Club Forum / General Ford Discussion / Multi Carb Intake & Generator Clearance Problems

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Multi Carb Intake & Generator Clearance Problems -- page: 1 2

BIRUDY

08-16-2022 @ 7:01 PM

reply profile send p.m.

Member
Posts: 33
Joined: Jun 2022

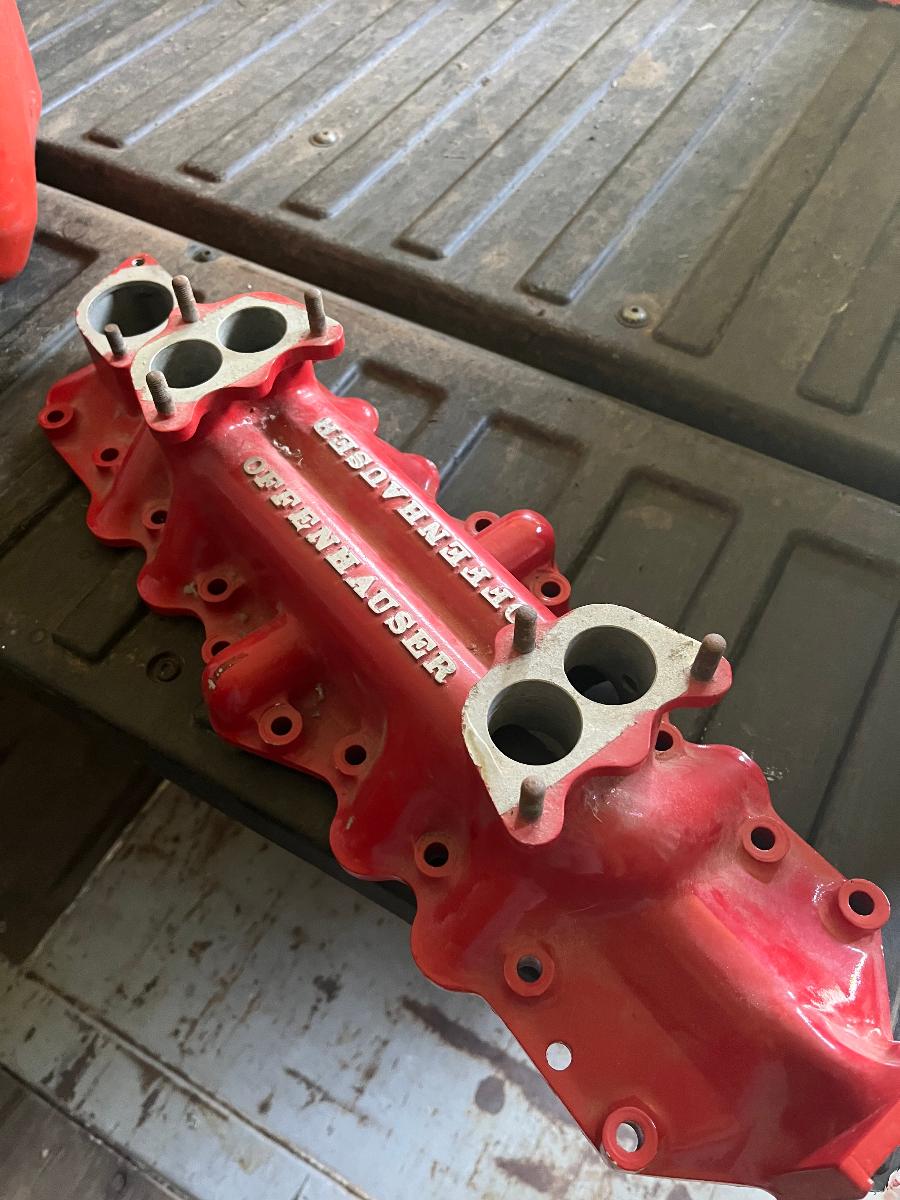

I have a 1937 21 stud flat head V8 with aluminum heads and want to install a 2 carb Offenhauser intake, but with this intake I will not be able to use my generator because of clearance issues..
What are reasonable options to solve this issue and what are the compromises ... with an offset bracket I understand I can use my generator but what does this mean for the cooling fan.. would a 6Volt alternator be a good option?

alanwoodieman

08-16-2022 @ 7:22 PM

reply profile send p.m.

Senior
Posts: 868
Joined: Oct 2009

with a set up like this most of the cars I have seen were running electric fans, with the offset gen or alt

BIRUDY

08-17-2022 @ 5:10 AM

reply profile send p.m.

Member
Posts: 33
Joined: Jun 2022

Yes thought about those options but not sure if I want to go about that route. Want to keep it a simple as possible.
Noticed MAC's has 6 volt, positive ground single wire with standard mount and pulley that appears to be able to retain the factory cooling fan.. Will call to get dimensions of the alternator as overall length is the determining factor.
Other option would be not to use the intake I have and et one that would accommodate the factory generator setup.

BIRUDY

08-17-2022 @ 5:28 AM

reply profile send p.m.

Member
Posts: 33
Joined: Jun 2022

Just checked with MAC's and it looks like they are not going to continue with this product or have it reproduced in the foreseeable future.. back to the drawing board .

37RAGTOPMAN

08-17-2022 @ 7:11 AM

reply profile send p.m.

Senior
Posts: 1963
Joined: Oct 2009

DID you try SPEEDWAY for your 2 2 intake, or JEGS ?
hope this helps 37Ragtopman

BIRUDY

08-17-2022 @ 7:45 AM

reply profile send p.m.

Member
Posts: 33
Joined: Jun 2022

will take a look

carcrazy

08-17-2022 @ 9:22 AM

reply profile send p.m.

Senior
Posts: 1671
Joined: Oct 2009

Use of the dual carb manifold with the units mounted close together greatly simplifies the installation.

carcrazy

08-17-2022 @ 9:38 AM

reply profile send p.m.

Senior
Posts: 1671
Joined: Oct 2009

Here is a manifold that may work for you.

https://www.summitracing.com/parts/ofy-1075/make/ford

cpipp01@aol.com

08-19-2022 @ 4:51 PM

reply profile send p.m.

New Member
Posts: 146
Joined: Oct 2009

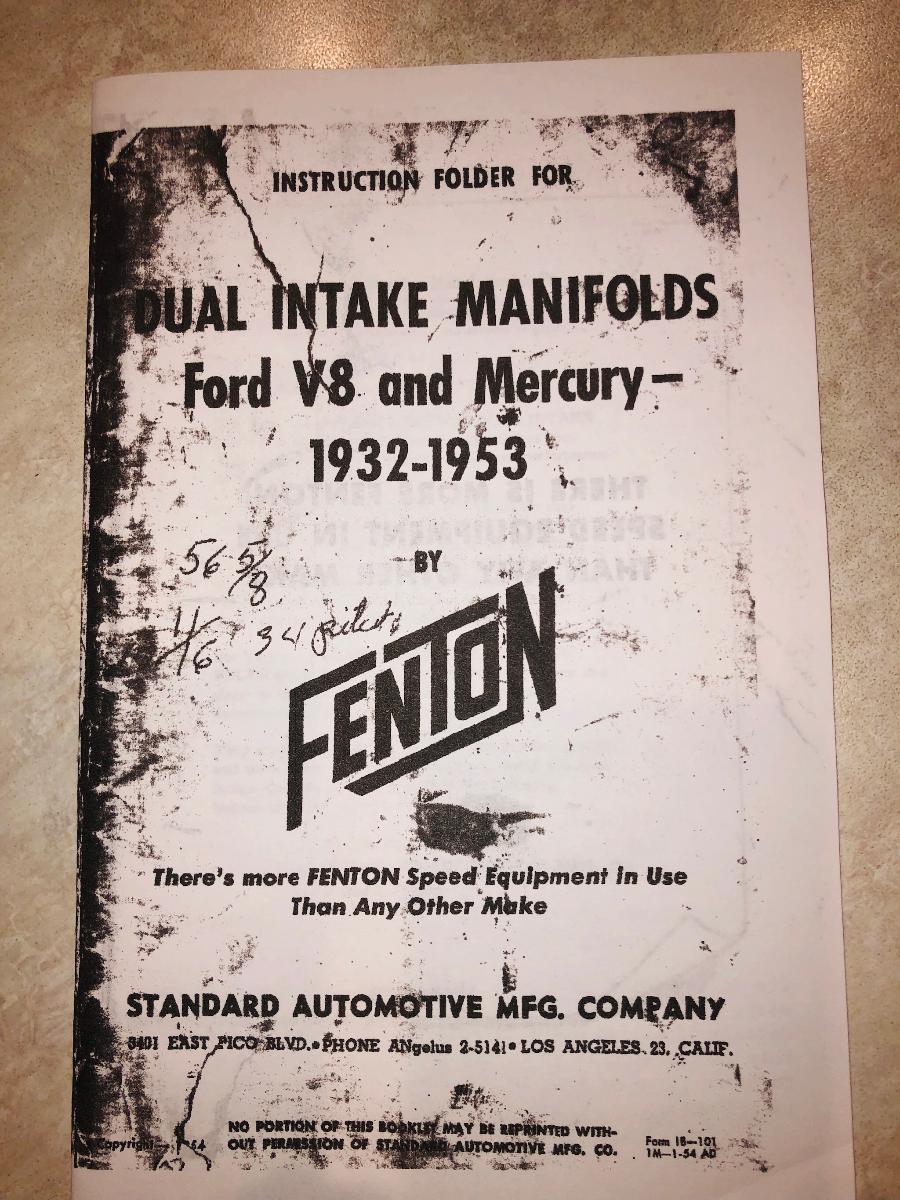

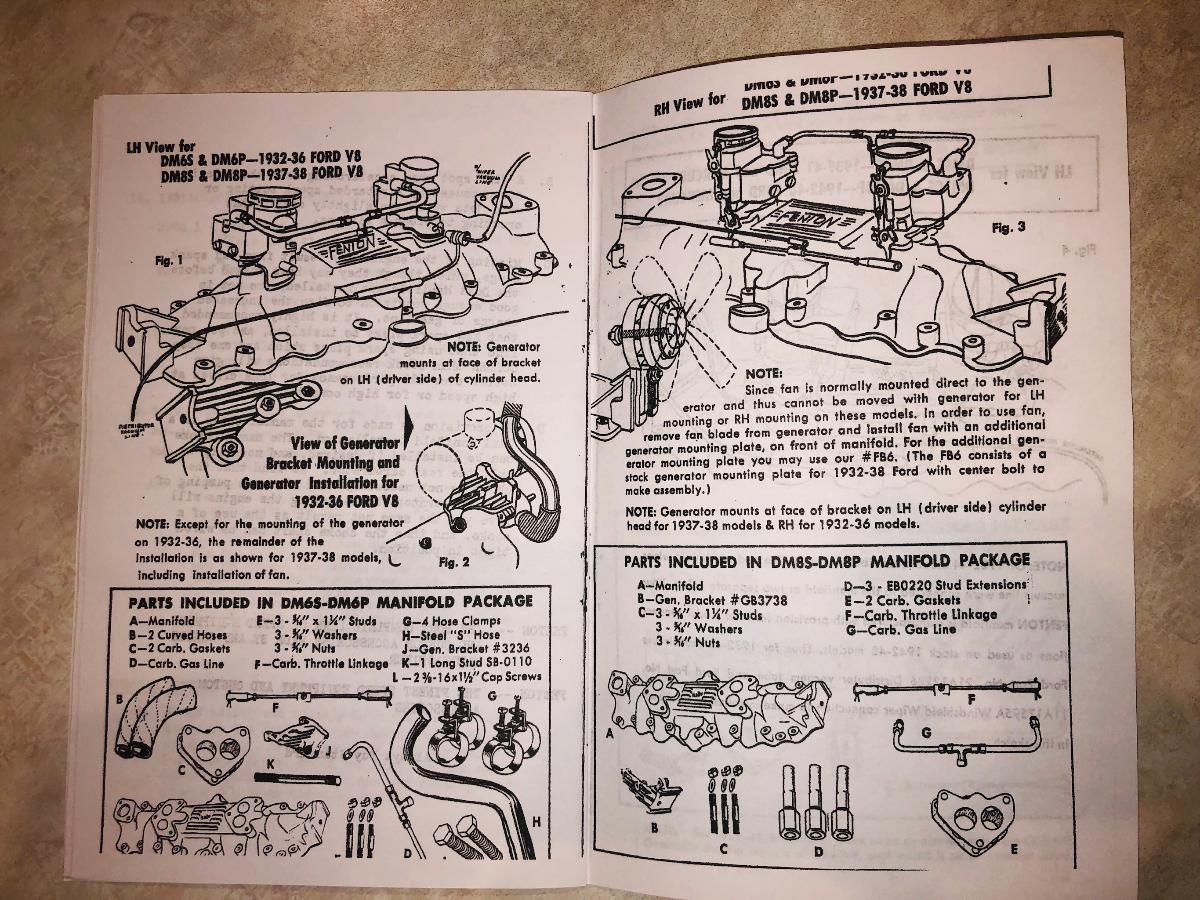

I have attached photos from a copy of a 24 page Fenton duel intake instruction folder. The folder covers 1932 - 53 Ford Mercury dual intake manifolds. I hope this helps.

BIRUDY

08-20-2022 @ 10:00 AM

reply profile send p.m.

Member
Posts: 33
Joined: Jun 2022

thanks ever so much.. Very helpful

<< previous || next >>

PAGE: 1 2
