EFV-8 Club Forum / General Ford Discussion / 41 Convertible, Door Height Adjustment

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 41 Convertible, Door Height Adjustment

Fhower

02-01-2021 @ 5:26 PM

reply profile send p.m.

Member
Posts: 32
Joined: Dec 2016

I have a 41 Convertible and the doors height appears to be off about an 1/8 of an inch. They work fine and the door gaps are pretty straight. Would like to correct if possible.

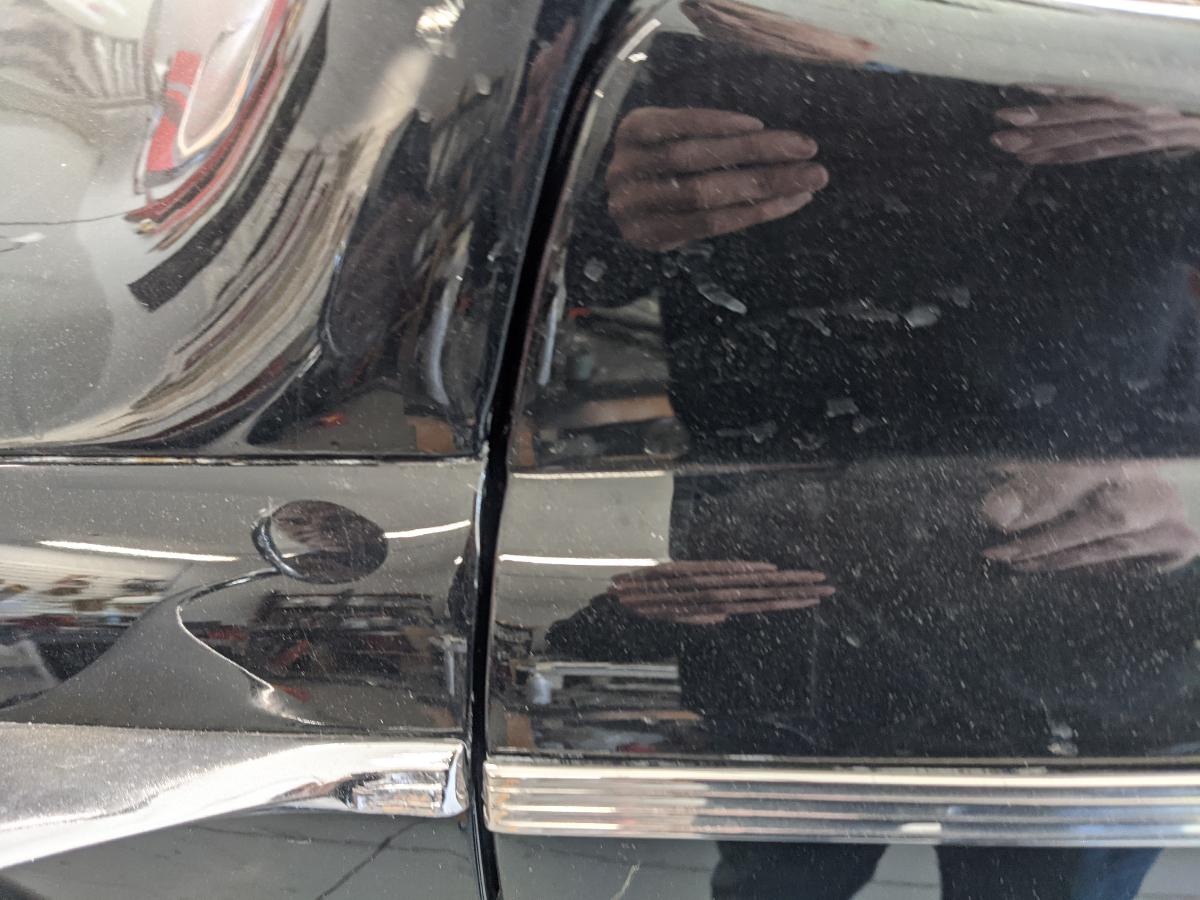

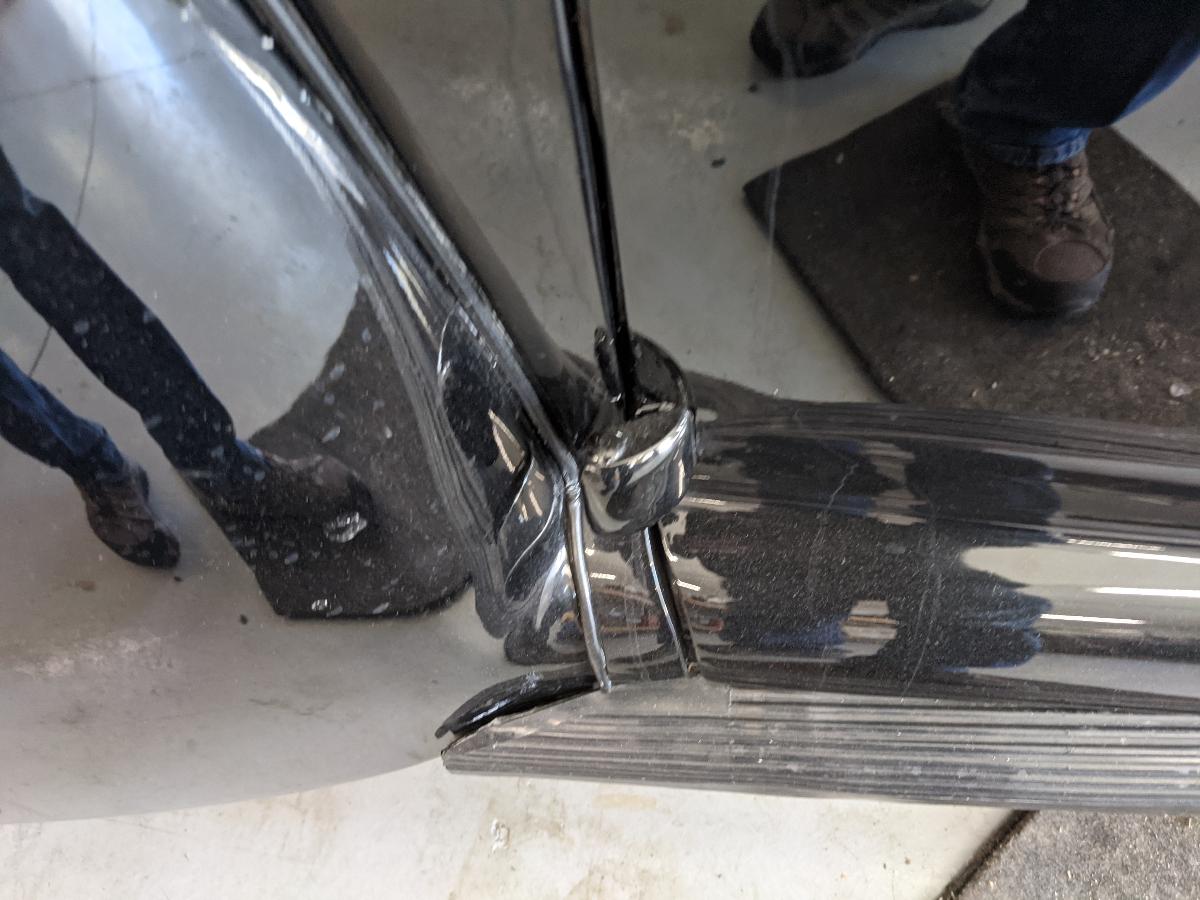

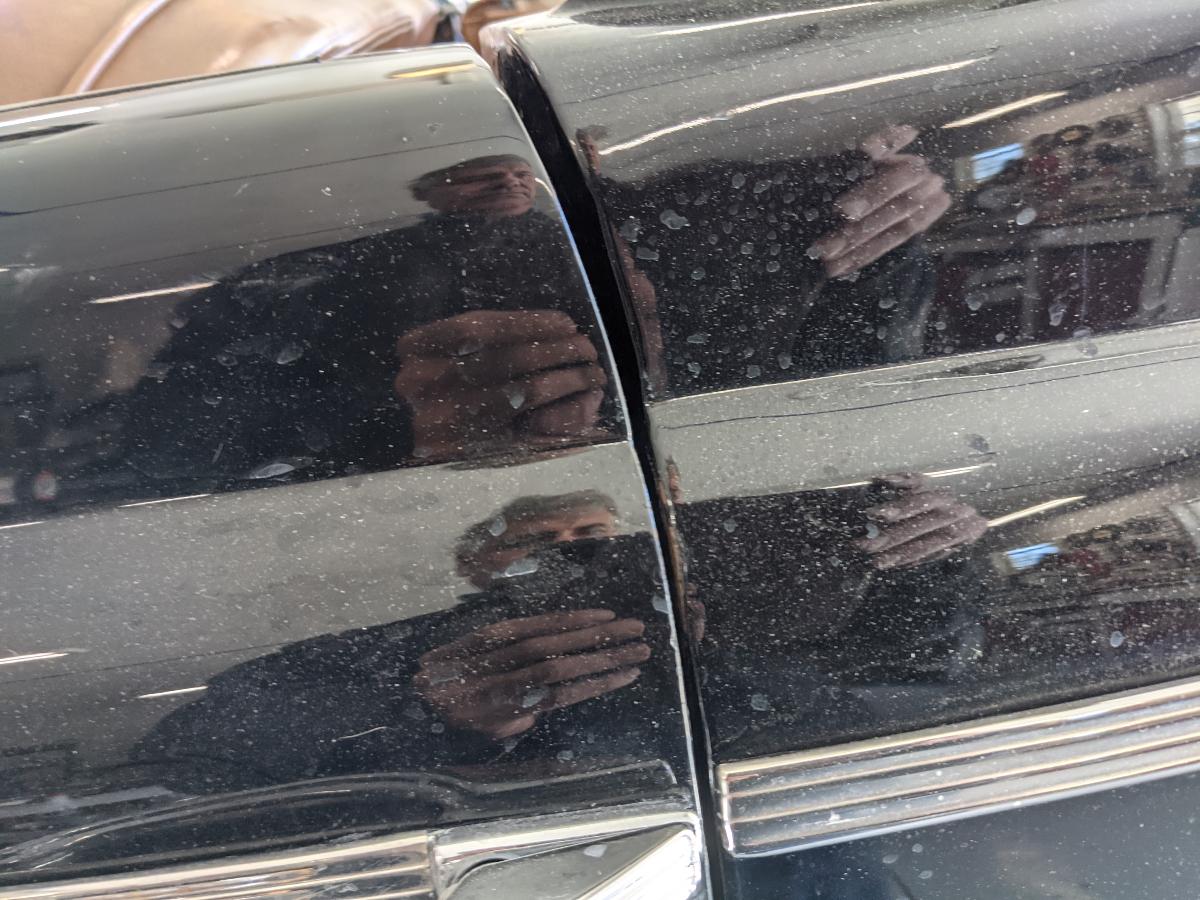

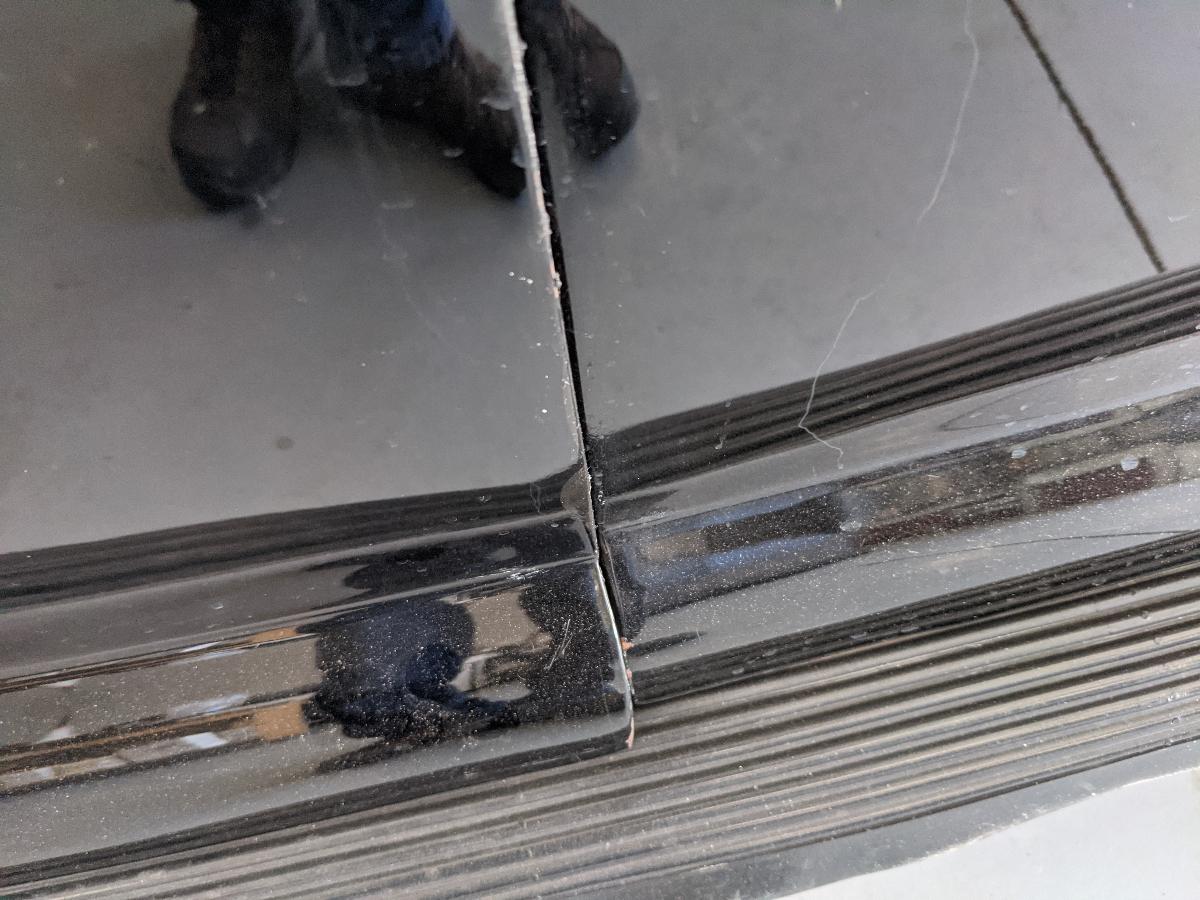

Any advice is much appreciated! Photos attached.

kubes40

02-02-2021 @ 8:04 AM

reply profile send p.m.

Senior
Posts: 3395
Joined: Oct 2009

I'd start by adding a shim beneath the B pillar. Start with a shim of about 1/8" thickness. See what that does. You may have to add.

Mike "Kube" Kubarth

Fhower

02-02-2021 @ 4:34 PM

reply profile send p.m.

Member
Posts: 32
Joined: Dec 2016

Thanks for the info I will give it a try. I have read the hinges are not adjustable

Best,

Fred

kubes40

02-02-2021 @ 5:27 PM

reply profile send p.m.

Senior
Posts: 3395
Joined: Oct 2009

Hinges can be bent but I prefer to do that prior to painting. I have found that the factory fit on 41 - 48 is typically poor. Especially '46 - '48.
If your gaps are even top to bottom and are about the same width at the A pillar and B pillar, I'll stick with my initial advice.

Was this car (body) removed the frame at some point? If so, how long ago?

Mike "Kube" Kubarth

Fhower

02-02-2021 @ 6:21 PM

reply profile send p.m.

Member
Posts: 32
Joined: Dec 2016

Mike,

I really don't know. I have been told the original restoration was performed in the 70's. I would assume the body was removed or mated to the frame. The body is in good condition, however the rest of the card needs work, wiring, springs, etc. I looked pretty on the surface, but i have found some issues underneath, Lessons learned.

Best,

Fred

kubes40

02-03-2021 @ 8:25 AM

reply profile send p.m.

Senior
Posts: 3395
Joined: Oct 2009

The only reason I'd asked is in an attempt to ascertain whether or not the body mount pads had been replaced and if so, how long ago.
If you find the old ones are dried and cracked, the fix may be simple. Let's hope

Mike "Kube" Kubarth
