EFV-8 Club Forum / General Ford Discussion / Cover Photo May/June V8 Times

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Cover Photo May/June V8 Times -- page: 1 2 3 4

deluxe40

06-16-2018 @ 10:41 AM

reply profile send p.m.

Member
Posts: 413
Joined: Oct 2009

Here's a picture of a '41 that I believe is original. This Sedan Delivery also had the full wood grained dash.

1937sedandelivery

06-16-2018 @ 7:50 AM

reply profile send p.m.

Senior
Posts: 501
Joined: Jul 2014

Good point. I didn't think to look at the Body Parts list book. I see those two strip listed on page 59. I also see 5 bows were used. The three in the back that attach to the wood framing are the same. There are two bows (different part numbers) listed, that must be in the front. I only have one bow installed and now am unsure of where the two bows go. Any way you can take a picture of the two front bows and where the are installed?
Thanks for your help.
Gregg
(p.s. sorry to hi-jack this thread. We can start another one if appropriate.)

This message was edited by 1937sedandelivery on 6-16-18 @ 7:52 AM

cpipp01@aol.com

06-16-2018 @ 5:37 AM

reply profile send p.m.

New Member
Posts: 147
Joined: Oct 2009

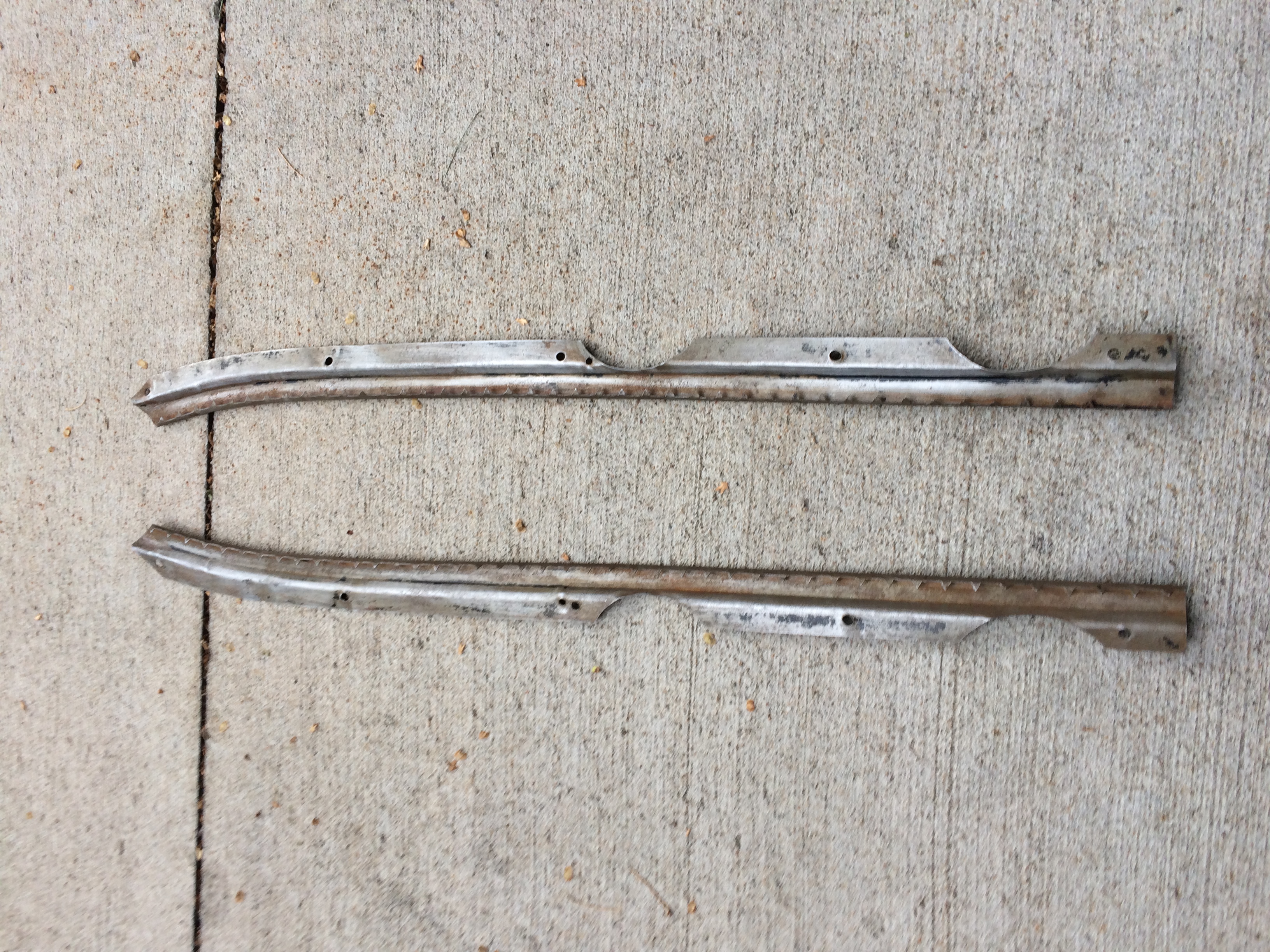

The 37 Ford body parts list calls for passenger car headliner retainers part numbers 78-736682/83 to be used on the sedan delivery. I do not think you would need the retainers if the headliner was cardboard. See attached photo.

1937sedandelivery

06-15-2018 @ 10:00 PM

reply profile send p.m.

Senior
Posts: 501
Joined: Jul 2014

You have peaked my interest. I have a 37 Sedan Delivery that soon will get upholstered. I am doing everything I can to make it original. I talked to Roy N. and he said the headliner was upholstery material. The Henry Ford book I have states that it was fine grade colonial cardboard. I have what I think are the original headliner ribs installed. Any way to settle what the original headliner material was???
Thanks,
gregg

trjford8

06-15-2018 @ 6:39 AM

reply profile send p.m.

Senior
Posts: 4228
Joined: Oct 2009

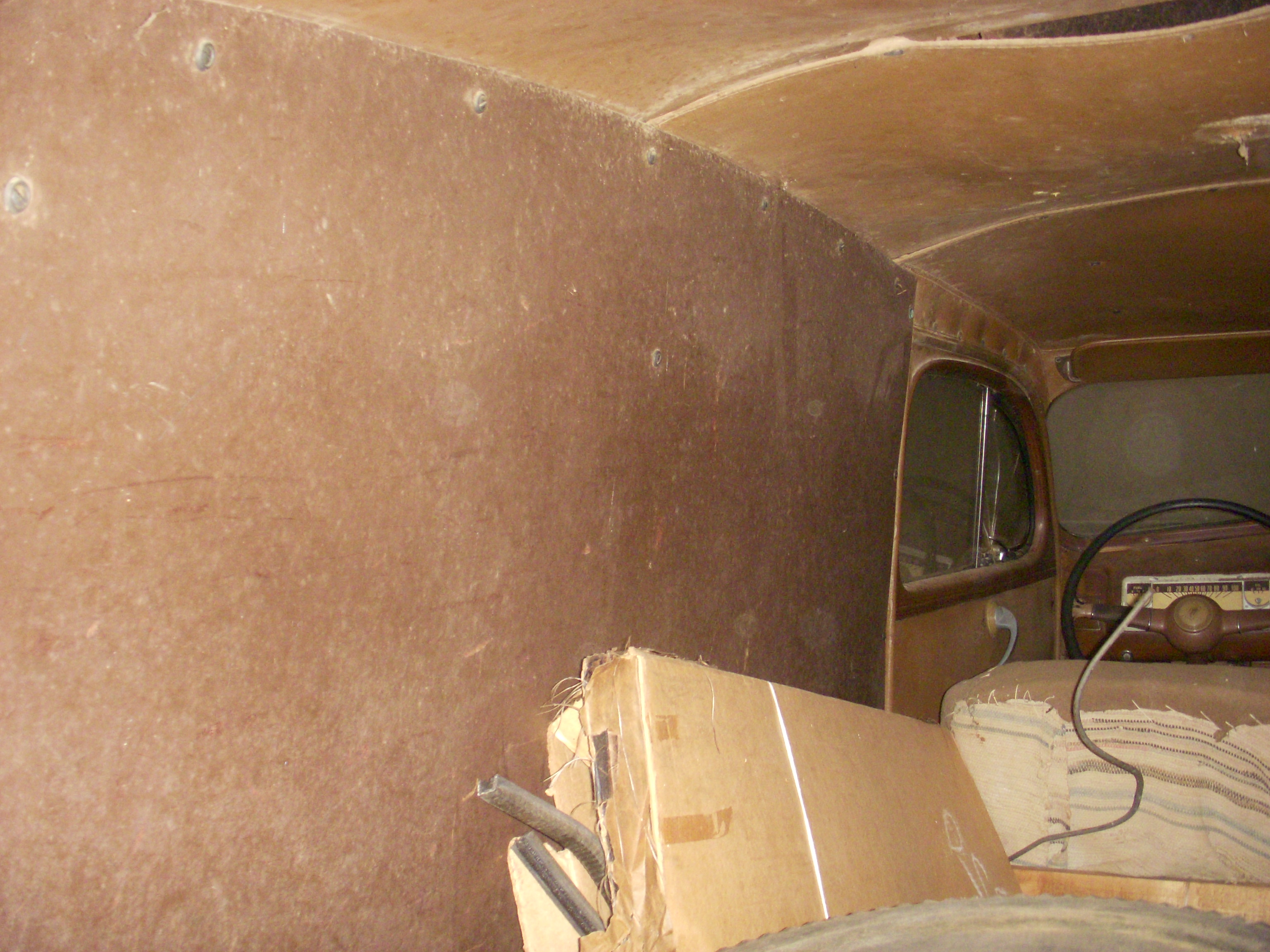

There's a sedan delivery in our area( owned by a friend) that has the same dash configuration as the one you had. Standard dash with deluxe gauges, deluxe knobs, standard glove box door and no trim strips. It also has the deluxe door handles and the deluxe front end. In looking at many sedan deliveries we also found that some had an actual headliner and others used the cardboard style headliner. I think there are a lot of unknowns with sedan deliveries.

This message was edited by trjford8 on 6-15-18 @ 6:43 AM

deluxe40

06-13-2018 @ 7:33 PM

reply profile send p.m.

Member
Posts: 413
Joined: Oct 2009

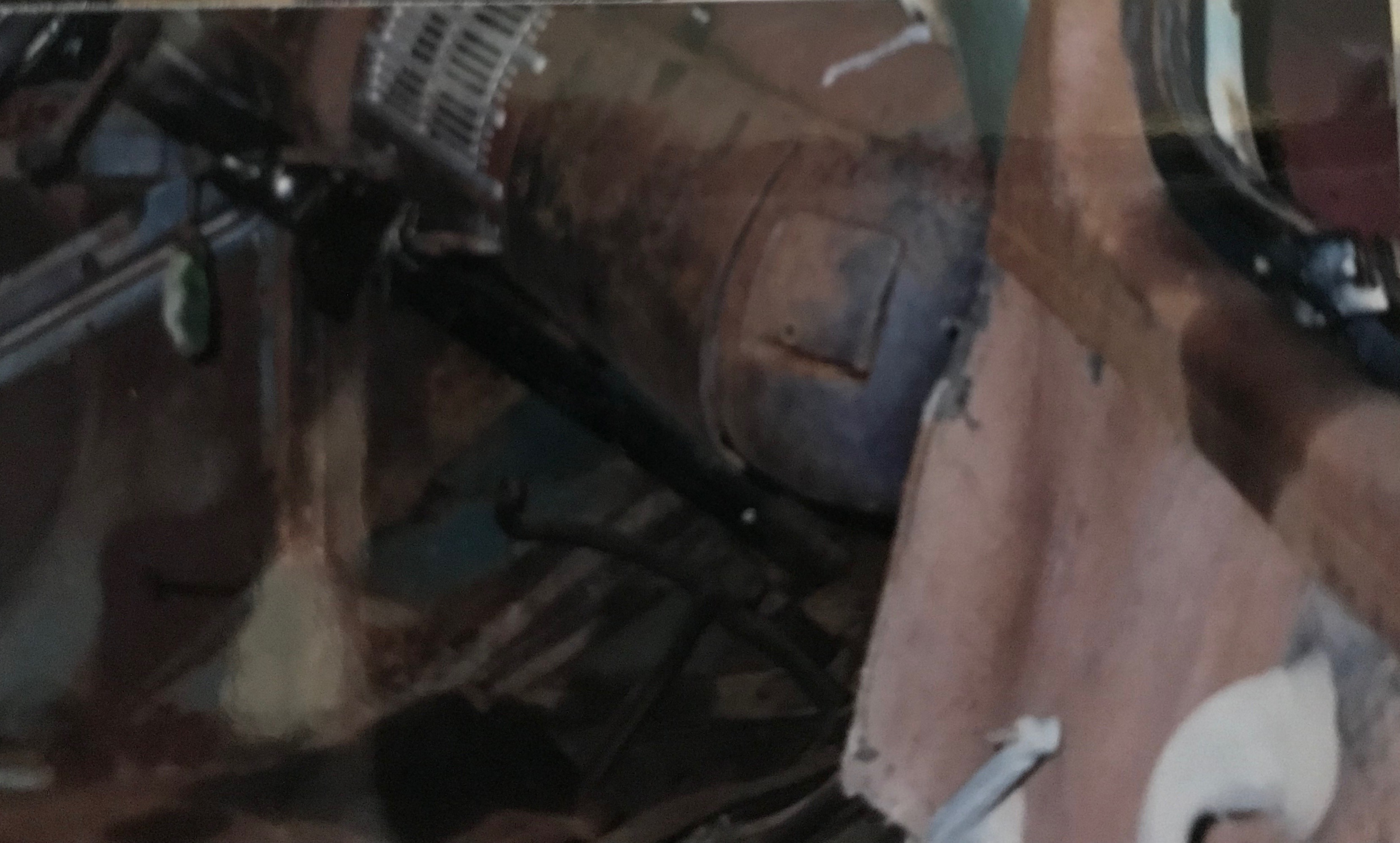

A '40 Delivery I once owned had a Deluxe speedometer, door handles, dash knobs and a Deluxe hood and grille. However, it had a "standard" glove box door with no clock and no holes in the dash for the small chrome strips above and below the ash trays. The Delivery came from Hawaii and did not look like it had ever been a hot rod. Still had the stock splash pans in the engine compartment.

deluxe40

06-13-2018 @ 7:22 PM

reply profile send p.m.

Member
Posts: 413
Joined: Oct 2009

Joe's truck is a Panel Truck, rather than a Sedan Delivery. It is configured like a pickup and is correct.

Chris.NZ

06-13-2018 @ 4:22 PM

reply profile send p.m.

Member
Posts: 49
Joined: Oct 2009

And " Delivery" is incorrectly spelt on the cover page.

06-13-2018 @ 10:01 AM

reply profile send p.m.

Senior
Posts: 1262
Joined: Nov 2009

While reading the latest edition of the V8 Times I was drawn to the advertisement on page 13 for Joe's Antique Auto Parts. Curious to know if the Sedan Delivery pictured in the ad is correct....

http://www.joesantiqueauto.com/catalog.pdf

This message was edited by MG on 6-13-18 @ 10:13 AM

BUCKAWHO

06-11-2018 @ 2:22 PM

reply profile send p.m.

Member
Posts: 96
Joined: Feb 2016

Hi...I'll tell y'all one thing....I'd sure make room in my barn for it !!! BT
