Discussion Topic: Door Lock Installation

rstaver

09-30-2013 @ 12:12 PM

reply profile send p.m.

Member
Posts: 1
Joined: Sep 2012

I have a 1934 Ford Tudor. The door lock is keyed and mounted on the passenger door. A square shaft goes into an appropriate place on the door latch. My question is, what holds the key cylinder and shaft in place? None of the photos I have shows this detail. The key cylinder isn’t threaded so you can’t put a nut on from the backside. So I’m wondering how it is fastened so it doesn’t just vibrate out. Any ideas?

deuce_roadster

09-30-2013 @ 12:18 PM

reply profile send p.m.

Member
Posts: 284
Joined: Oct 2009

The door lock cylinder is in a metal tube that has a set screw that you will see the head of by opening the door and looking at the edge of the door lined up with the lock. The head of this screw is near the door skin. Expect it to be rusted, you may have to drill it out and rethread the set screw part if it is in good enough shape. Good luck.

deuce_roadster

09-30-2013 @ 12:19 PM

reply profile send p.m.

Member
Posts: 284
Joined: Oct 2009

duplicate post deleted

This message was edited by deuce_roadster on 9-30-13 @ 12:20 PM

Don Rogers

09-30-2013 @ 6:11 PM

reply profile send p.m.

Senior
Posts: 504
Joined: Oct 2009

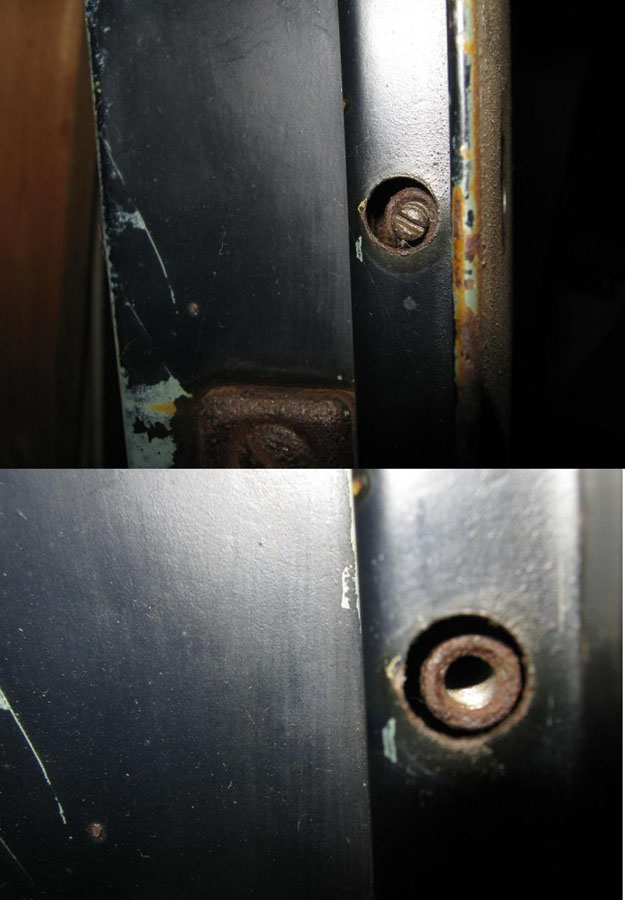

Here's some photos of the set screw and tube on the edge of the door.

3w2

09-30-2013 @ 7:47 PM

reply profile send p.m.

Senior
Posts: 835
Joined: Oct 2009

Don,

I believe that the original slotted set screws were headless, unlike the round head screw shown in the photo. The Ford hardware number was 89803-S7.

Dave

Don Rogers

09-30-2013 @ 8:28 PM

reply profile send p.m.

Senior
Posts: 504
Joined: Oct 2009

Dave, You are correct about the set screw being headless. I believe that the photo shows a headless screw some what rounded on the end.

trjford8

10-01-2013 @ 5:29 PM

reply profile send p.m.

Senior
Posts: 4214
Joined: Oct 2009

I normally replace the original set screw with an allen set screw.
