EFV-8 Club Forum / General Ford Discussion / Engine identification

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Engine identification

rsvanam

02-15-2021 @ 12:38 PM

reply profile send p.m.

Member
Posts: 3
Joined: Feb 2021

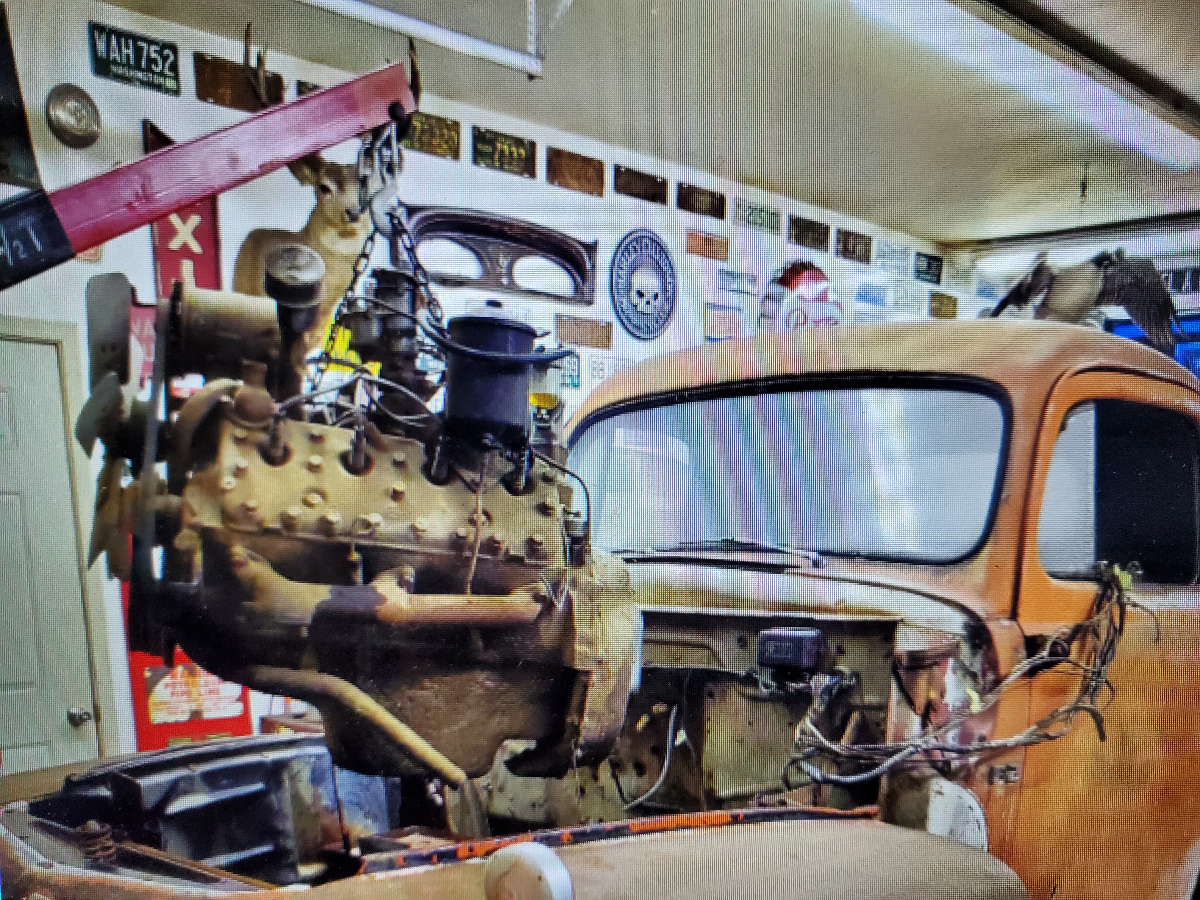

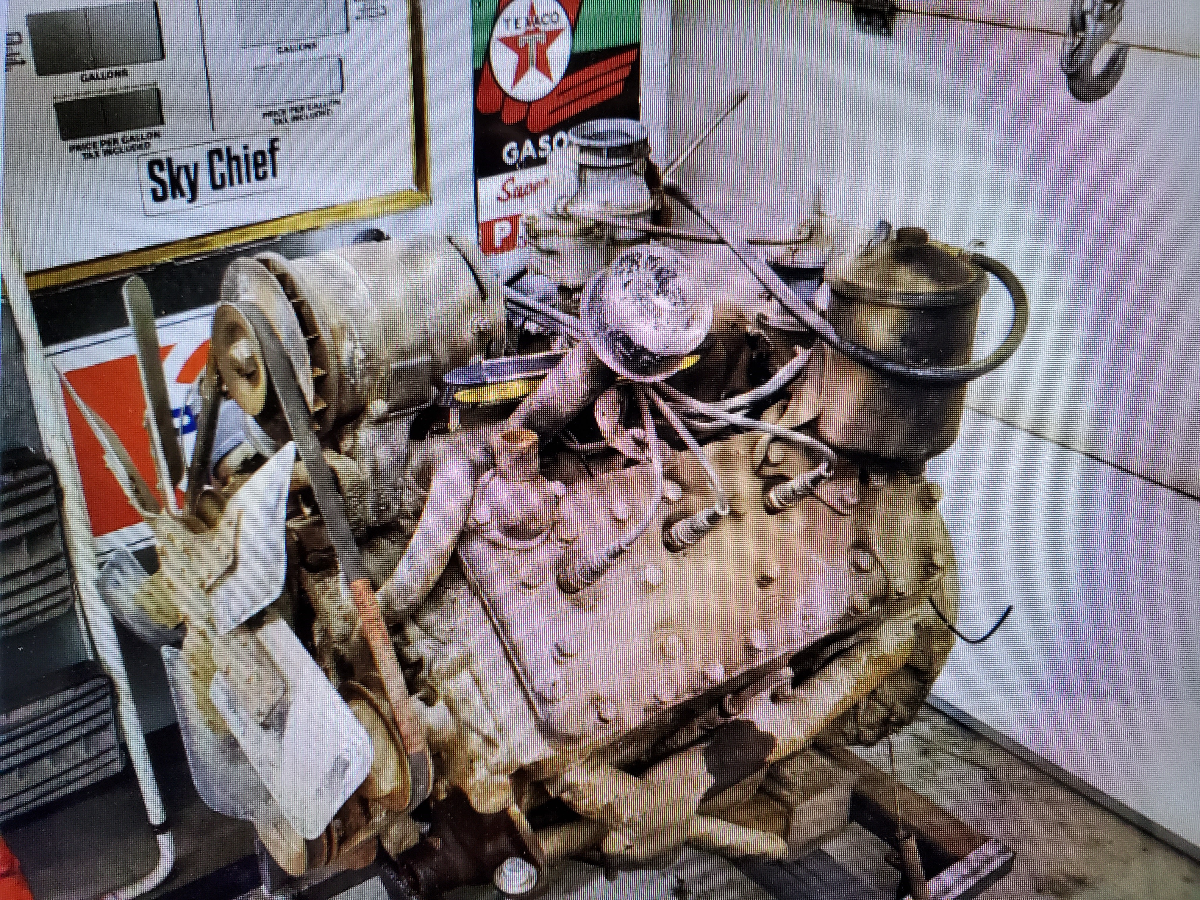

I am having trouble identifying this engine. Pulled from a 49 F2, it has no casting numbers on the heads, only FORD ovals, and only 2 numbers and a letter stamped in the block back edge. 24 head bolts, front dist and bell housing unbolts. I haven't pulled the head and checked bore and stroke yet. I was told it was a 239. Any input would be appreciated.

Bob

This message was edited by rsvanam on 2-15-21 @ 4:35 PM

pauls39coupe

02-15-2021 @ 4:11 PM

reply profile send p.m.

Member
Posts: 205
Joined: Jul 2014

Looks like an 8BA style motor common in trucks from 1948-1953, or cars from 1949-53. It would be 239 cubic inches. The ignition wires are aftermarket, and the carb may be passenger car. It may be the original engine from your F-2, but it is hard to say what was replaced in the last 70+ years.

rsvanam

02-15-2021 @ 4:38 PM

reply profile send p.m.

Member
Posts: 3
Joined: Feb 2021

I agree that its prob a 8BA, was wondering why the heads have no numbers on them at all and what head they may be?

alanwoodieman

02-15-2021 @ 4:59 PM

reply profile send p.m.

Senior
Posts: 868
Joined: Oct 2009

look to see if the heads are canadian--could be aluminum!

51504bat

02-16-2021 @ 7:33 AM

reply profile send p.m.

Member
Posts: 253
Joined: Apr 2020

It doesn't have a truck pan on it. But it has truck pumps and what appears to be a truck 1/2 bell housing.

______________
No signature

rsvanam

02-16-2021 @ 11:36 AM

reply profile send p.m.

Member
Posts: 3
Joined: Feb 2021

Checked the heads are not aluminum. I'm mainly wondering why the heads have no casting numbers.

sarahcecelia

02-16-2021 @ 5:48 PM

reply profile send p.m.

Senior
Posts: 1186
Joined: Mar 2013

It has a truck cooling fan (multi blades), and I agree it is a 239, 8ba, 100 horse power 1949-1953.

Regards, Steve Lee

trjford8

02-17-2021 @ 6:44 AM

reply profile send p.m.

Senior
Posts: 4214
Joined: Oct 2009

Could be Ford generic replacement heads?
