EFV-8 Club Forum / General Ford Discussion / 1937 open car radio speaker

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 1937 open car radio speaker

OH37FORD

09-09-2016 @ 9:25 AM

reply profile send p.m.

Member
Posts: 4
Joined: Sep 2016

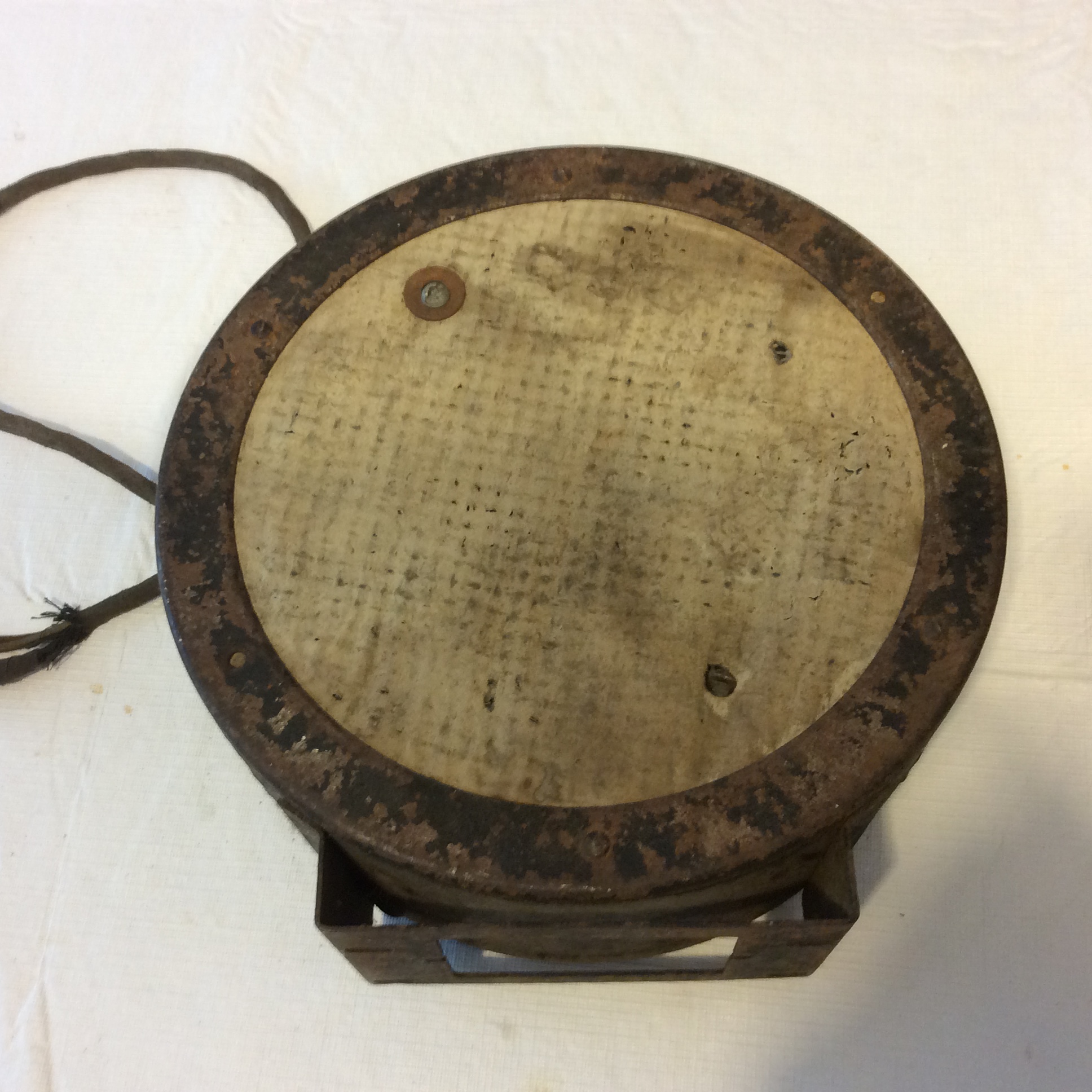

I have what I believe is a 1937 Ford open car radio speaker .
The plug from the speaker to the chassis looks correct, also
the speaker housing is finished in the same type of material.
There is cloth covering the front of the speaker with an open back.
Speaker has a female threaded boss for a 3/8 bolt or stud for
mounting in rear. The measurements are 3 1/2 deep with a
diameter of 9 3/4". The speaker is a Magnavox,
can not read model number, at 6" in diameter. I would like an
opinion.
Thanks

This message was edited by OH37FORD on 9-9-16 @ 9:40 AM

wmsteed

09-09-2016 @ 8:05 PM

reply profile send p.m.

Senior
Posts: 613
Joined: Oct 2009

I doubt very much that the "Magnavox speaker you have is a correct unit for a '37 Ford.
As I recall the '37 radios are generally Philco and are very similar to the '36 radios. Actually I think the box is the same, where-as the heads differ in shape and style. The '37 head has a rotating V8 for a dial.
The open car radios I have seen for '36-37 mount to the front of the radio receiver box, above the steering column.

Bill
36 5 win delx cpe

juergen

09-17-2016 @ 5:06 AM

reply profile send p.m.

Member
Posts: 256
Joined: Jan 2010

From :The 1937 Ford Book":

"The open car speaker, 78-18808B, was enclosed in a cylindrical black crinkle finish metal case, 8 5/8 inch in diameter and four inches deep."

The assembly has a circular ring about 1/3 of the way in the case and 4 tabs attaching it to the case extending to a 4 pointed star within the circle.

So no, you do not have a genuine Ford speaker for a 37

OH37FORD

09-18-2016 @ 1:07 AM

reply profile send p.m.

Member
Posts: 4
Joined: Sep 2016

Thanks for the information.

<< previous || next >>
