Looking for a diagram of wiper linkage (right side) and a possible source for what may be missing on mine. Paul in CT 40 DeLuxe
|
Carcheologist |
01-16-2022 @ 7:36 AM
|
|
|
New Member
Posts: 132
Joined: Jan 2016
|
Here is a link to the parts diagram for a '46, not exactly the same, but it is very similar to the '40. Maybe it will help you discover what parts are missing on yours. https://i1059.photobucket.com/albums/t424/craigmca/Ford%20Technical/DSCN1736_zps91138f46.jpg
|
TomO |
01-16-2022 @ 9:17 AM
|
|
|
Senior
Posts: 7256
Joined: Oct 2009
|
The 40 linkage is different from the later cars. Here is a link to a PDF copy of the Green book http://norgv8club.org/all-dcouments-indexed/category/16-parts-diagrams The diagram for the 1940 wipers is on page 637. If you don't want the file on your computer, you should be able to open it with your browser. I use Firefox and it will open the file when I click on DOWNLOAD. Section 7 has the page that you want. Tom
This message was edited by TomO on 1-16-22 @ 9:18 AM
|
37RAGTOPMAN |
01-16-2022 @ 9:43 AM
|
|
|
Senior
Posts: 1962
Joined: Oct 2009
|
Paul 40 Ford I believe you have the chrome stantions posts outside, there is a left and right, the linkage is differnt lengths., if my memory is right they attach to the bell cranks on the motor, with a which looks like a 2 funny washer with a spring between them, the linkage arms just slips over the posts, and the washers with the spring locks them on, hope this helps, 37Ragtopman, Maine
|
40 Coupe |
01-17-2022 @ 6:03 AM
|
|
|
Senior
Posts: 1678
Joined: Oct 2009
|

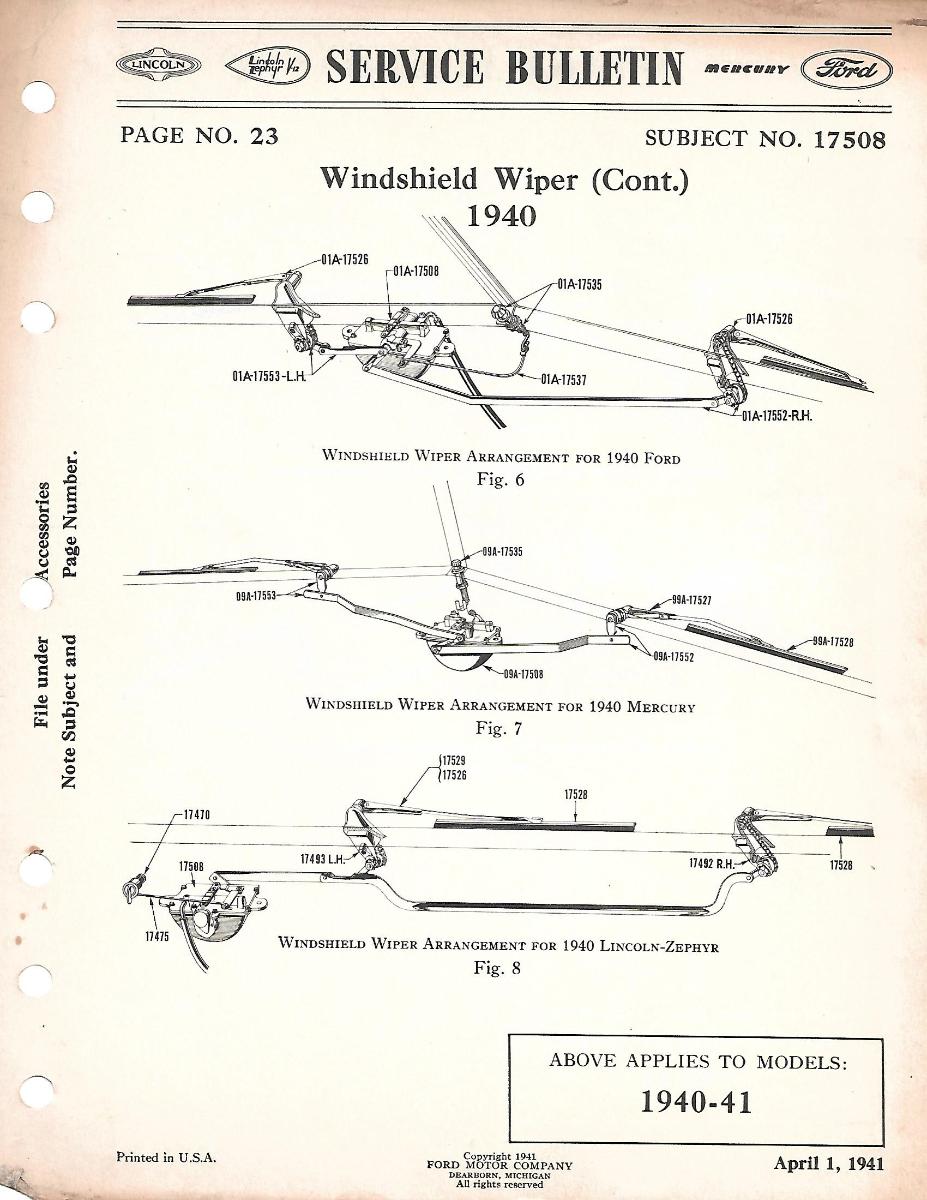

Here ya go. What part are you missing?????
This message was edited by 40 Coupe on 1-17-22 @ 6:04 AM
|
1931 Flamingo |
01-17-2022 @ 10:21 AM
|
|
|
Member
Posts: 388
Joined: Nov 2019
|
I'm missing 81A-17552-R.H. and the spring loaded clips mentioned above. Paul in CT Thank you for the diagram.
|
fortyford |
01-17-2022 @ 5:23 PM
|
|
|
Member
Posts: 218
Joined: Nov 2009
|
Paul,how good are your transmissions on each tower?Is this the clip you are speaking of? https://www.macsautoparts.com/windshield-wiper-transmission-arm-clip-from-arm-to-motor-ford-49-10543-1.html?utm_source=google&utm_medium=cpc&adpos=&scid=scplp49-10543-1&sc_intid=49-10543-1&gclsrc=aw.ds&gclid=CjwKCAiA55mPBhBOEiwANmzoQmZJM5tLJCs5cYWsw55Mb86hgehz4fdPzkWqnQONYPGqya_aGnNNwBoCiJAQAvD_BwE Not sure exactly what you are looking for?You can pretty much get everything you need from suppliers.
This message was edited by fortyford on 1-18-22 @ 6:53 AM
|
40 Coupe |
01-18-2022 @ 6:39 AM
|
|
|
Senior
Posts: 1678
Joined: Oct 2009
|
Bob Drake had the closed car wiper transmissions with linkage. Many aftermarket suppliers have the spring loaded retainer.
|
trjford8 |
01-18-2022 @ 8:57 AM
|
|
|
Senior
Posts: 4218
Joined: Oct 2009
|
I have a good used right side linkage arm and a wiper tower that needs to be chromed.. Send me a PM if you still need one.
|
1931 Flamingo |
01-18-2022 @ 10:08 AM
|
|
|
Member
Posts: 388
Joined: Nov 2019
|
To the above. Towers in good shape. Not the clip I need. Trying to reset to do PM's email me, please, at pnelson658@aol.com Paul in CT
|
