EFV-8 Club Forum / General Ford Discussion / Replacing door glass

   Reply to this DiscussionReply to Discussion | Start new discussionNew Discussion << previous || next >>
Posted By Discussion Topic: Replacing door glass -- page: 1 2

Printer-friendly Version  send this discussion to a friend  new posts last

rogbell
04-24-2016 @ 3:13 PM
New Member
Posts: 106
Joined: Dec 2009

I have a '36 5 window coupe and need to replace the passenger glass. I've removed the garnish molding and trim panel but cannot see how to extract the glass. There doesn't seen to be any way to free the glass channel from the sliding arm at the bottom. Help!

nelsb01
04-24-2016 @ 7:29 PM
Senior
Posts: 983
Joined: Oct 2009

If you have one of Dennis Carpenters Ford parts catalog, there was a very excellent description about how to remove and replace door glass. Not sure what year catalog it was, but the pictures and description should be of help.
One suggestion is that you get yourself a set of 'gripper' gloves. Will protect the skin on the hands from becoming home for several bandages.

TomO
04-25-2016 @ 7:06 AM
Senior
Posts: 7256
Joined: Oct 2009

You can find information on replacing the glass on VanPeltz website. It is mainly for the the models after 1940, but should be of some help to you.

http://vanpeltsales.com/FH_web/flathead_drawings_body.htm

Tom

40cpe
04-25-2016 @ 7:08 AM
Member
Posts: 474
Joined: Jan 2010

I don't know about the '36, but on my '38 there is a shoulder bolt that is a stop to prevent the regulator arm from moving to the center so they can be removed from the channel. Look for obstructions to the movement of the arm(s) and remove the bolt from the regulator.

trjford8
04-25-2016 @ 1:07 PM
Senior
Posts: 4218
Joined: Oct 2009

Your door is fairly open on the bottom. Put the widow about 2/3 of the way up. Unscrew the regulator and push it inward so the crank mechanism clears the metal panel and lower the entire assembly. Once it is down into the door bottom you can slide the assembly off the track and remove it from the door. Now the glass is at the bottom and you should be able to remove the window and track from the door opening.

fenbach
04-25-2016 @ 5:06 PM
Member
Posts: 227
Joined: Dec 2009

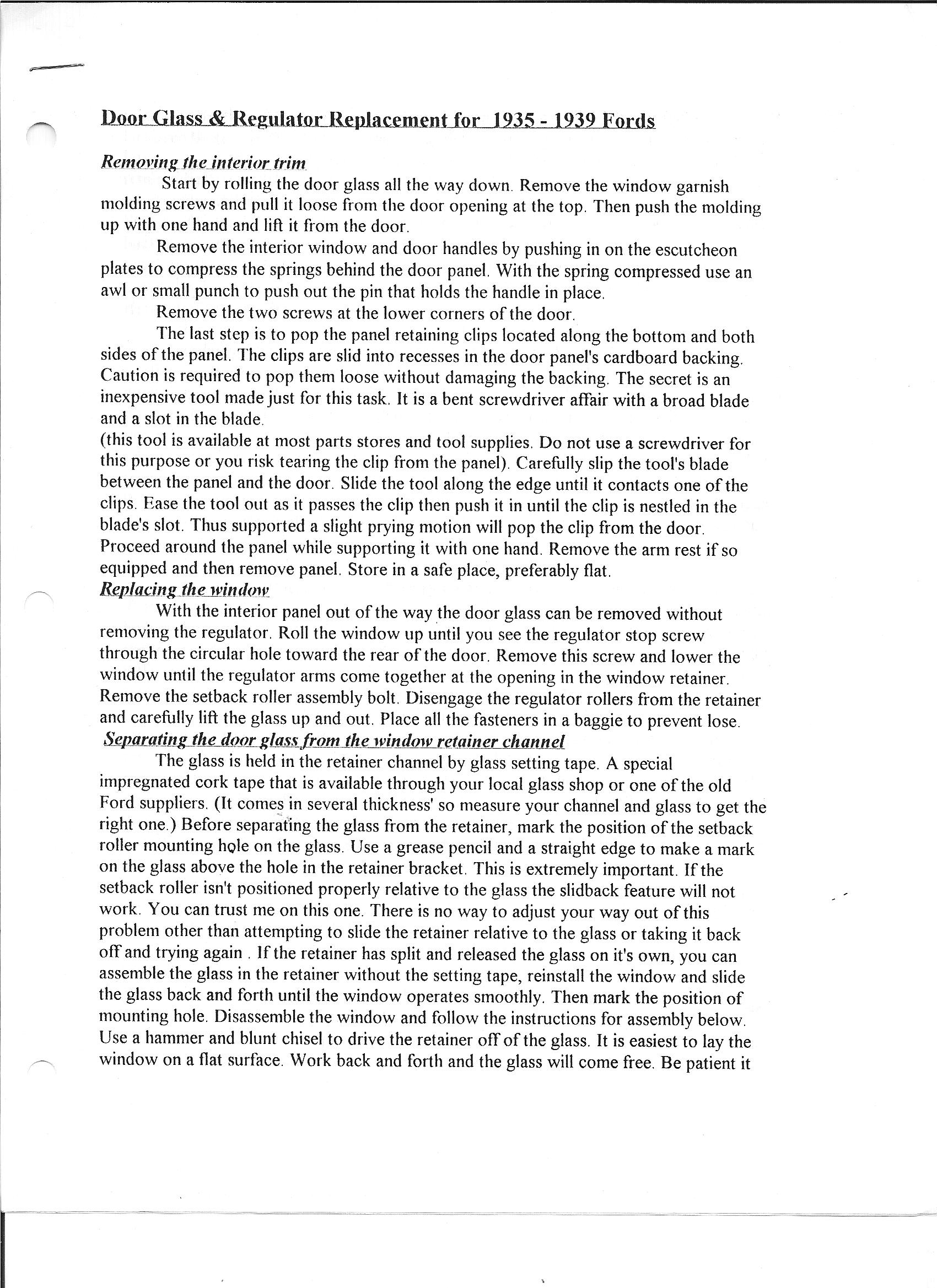

trjford8's instructions are simple. but if you want more detail, I attached a couple .pdf files. I've long since forgotten where I found them and who wrote them up.
see my second post for the second half of the instructions.

fenbach
04-25-2016 @ 5:07 PM
Member
Posts: 227
Joined: Dec 2009

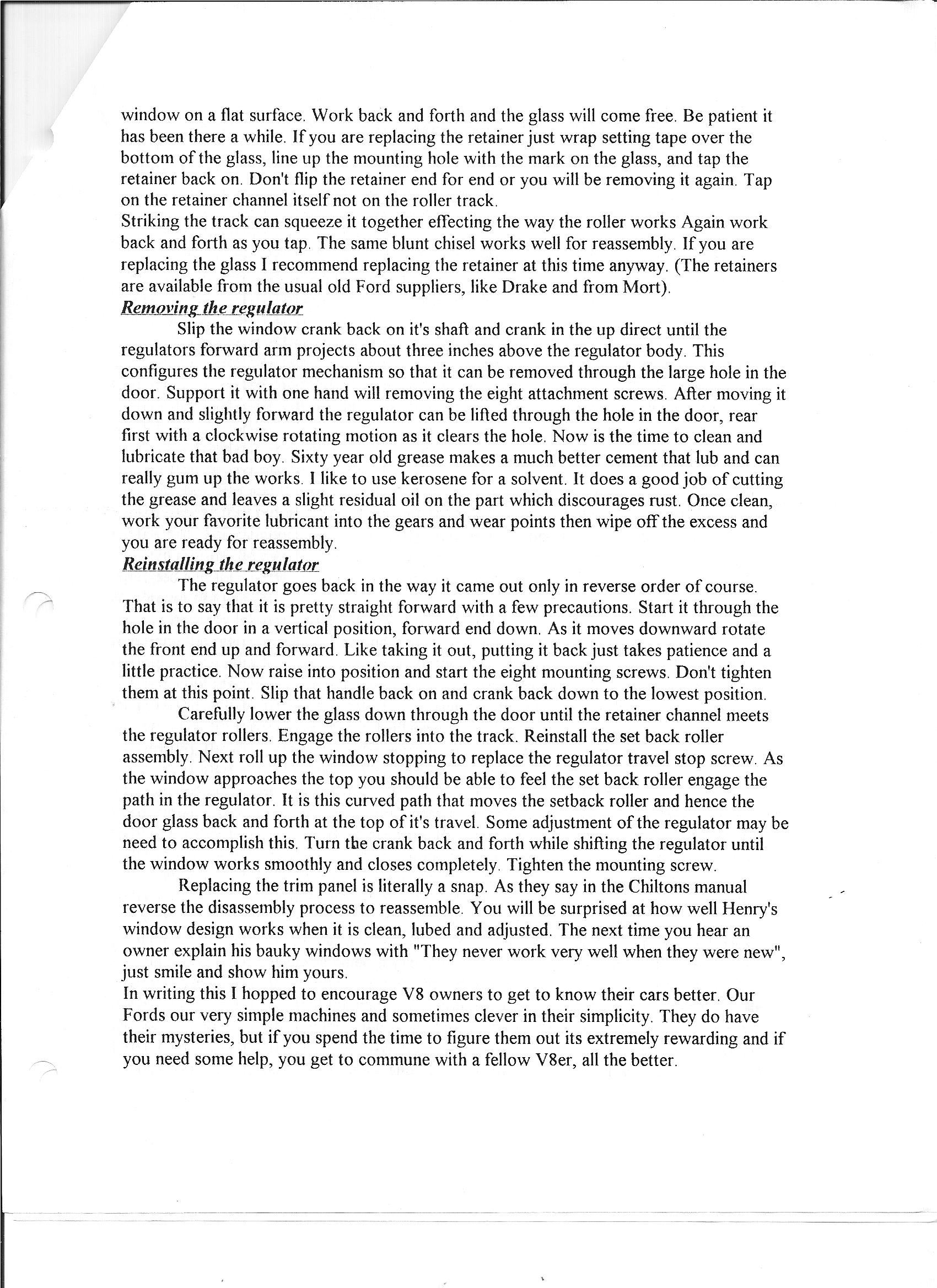

part 2
and if that's not enough, I'll post 3 more files with pictures.

This message was edited by fenbach on 4-25-16 @ 5:10 PM

fenbach
04-25-2016 @ 5:11 PM
Member
Posts: 227
Joined: Dec 2009

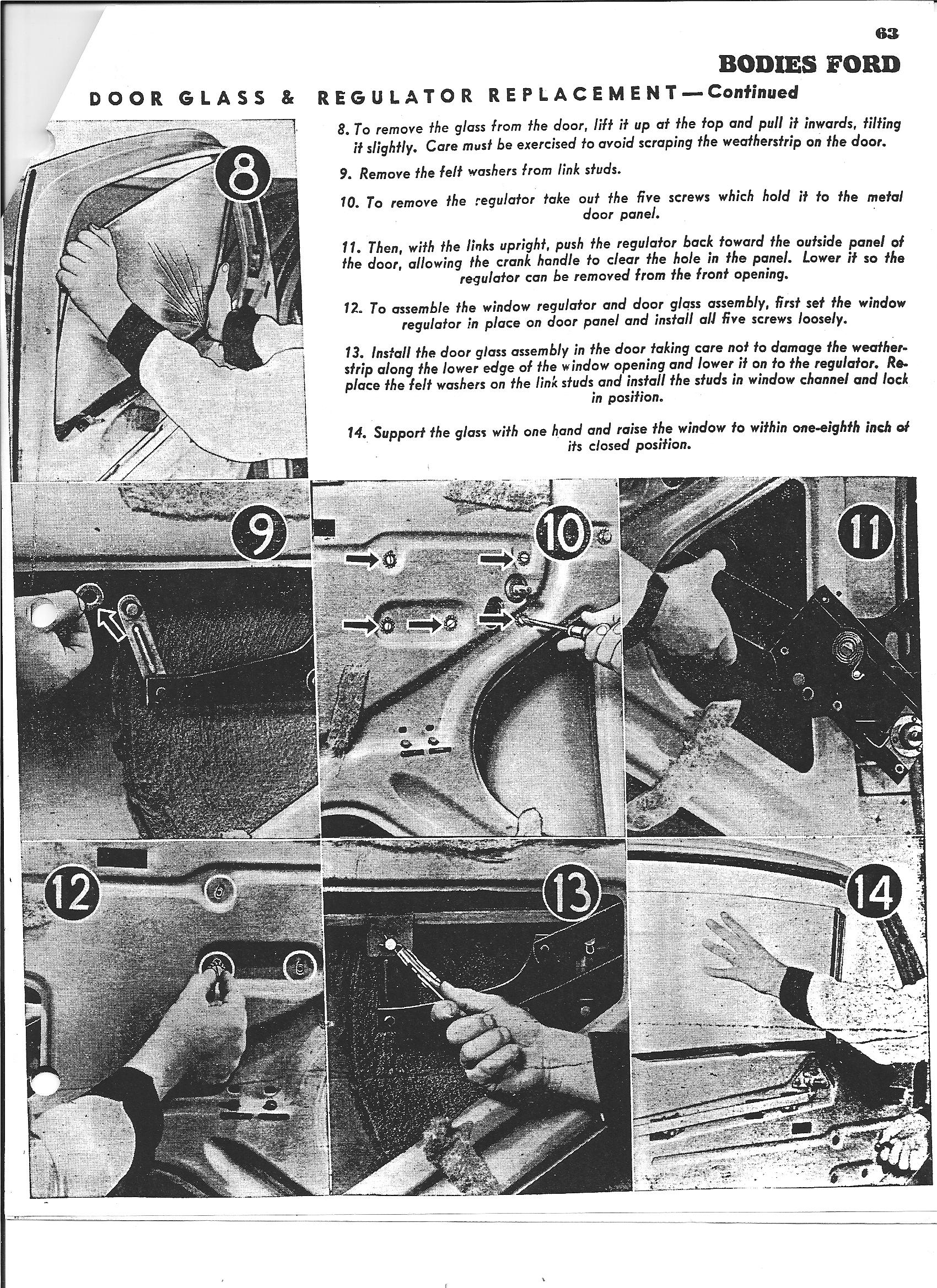

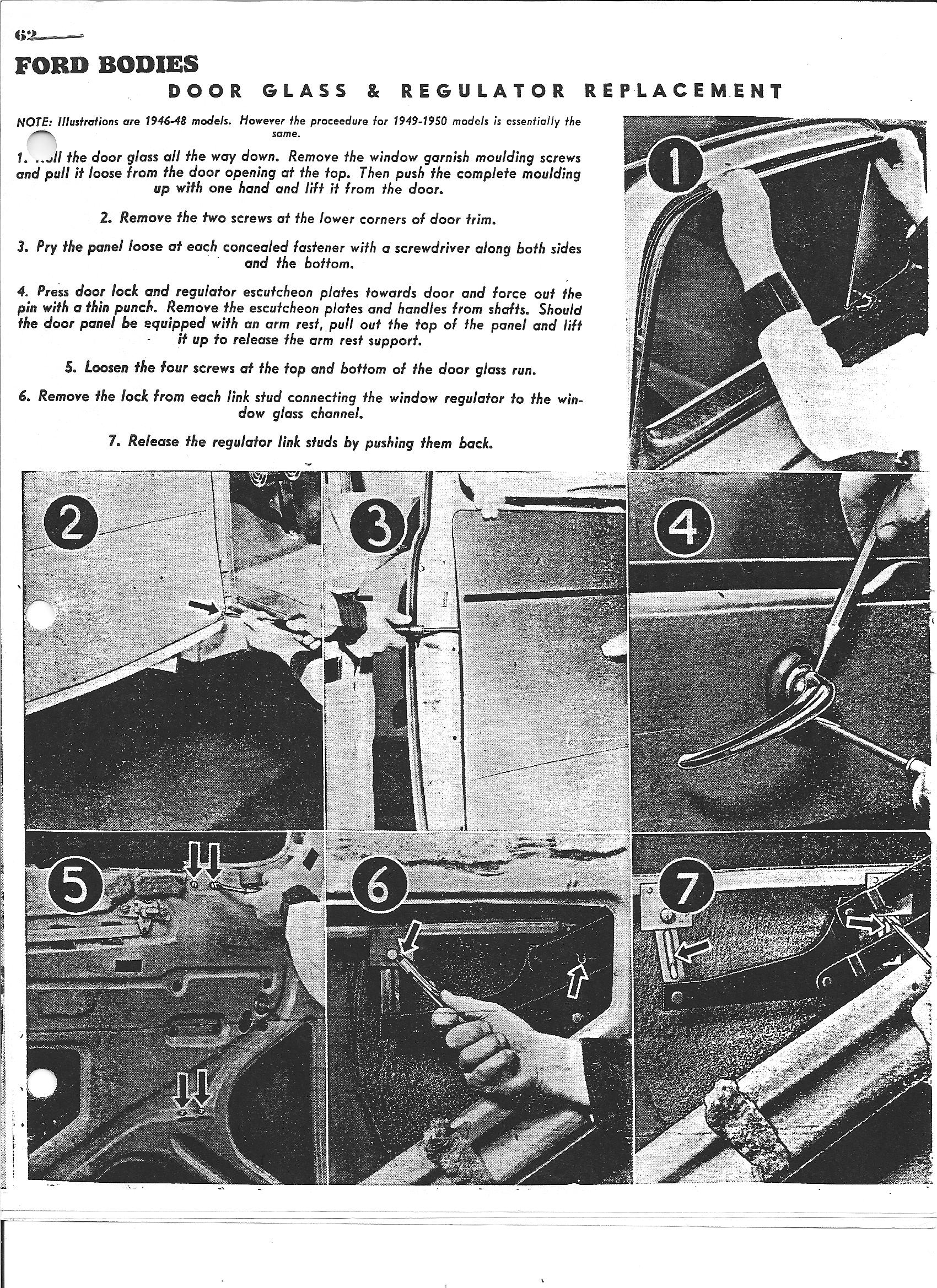

page 1. again, no idea where this came from.

This message was edited by fenbach on 4-25-16 @ 5:12 PM

fenbach
04-25-2016 @ 5:12 PM
Member
Posts: 227
Joined: Dec 2009

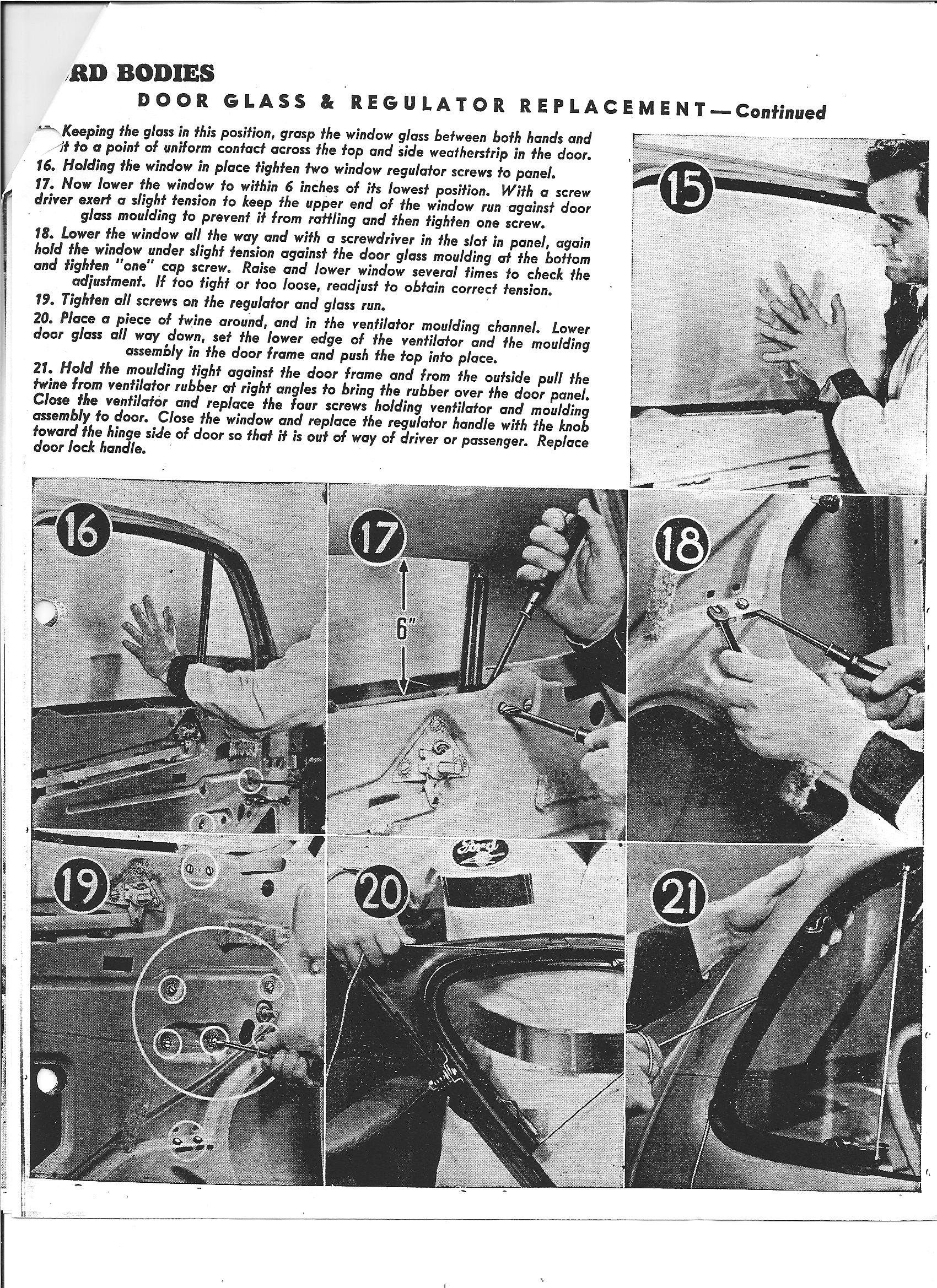

page 2

fenbach
04-25-2016 @ 5:13 PM
Member
Posts: 227
Joined: Dec 2009

page 3. that's all folks
