EFV-8 Club Forum / General Ford Discussion / crankshaft gear removal

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: crankshaft gear removal -- page: 1 2

MrHenderson

10-21-2024 @ 3:39 PM

reply profile send p.m.

Member
Posts: 19
Joined: Jul 2024

I have a bare engine on the 36 chassis. I need to pull the front crankshaft gear off, and brother do I need a hint.
The pan is off, and I'm staring at a gear. What now, I don't see any way.
The picture is WHY I need it off.

pauls39coupe

10-21-2024 @ 6:44 PM

reply profile send p.m.

Member
Posts: 206
Joined: Jul 2014

Why do you need to pull the crank gear? I can't tell from the photo. If you do, the crank needs to come out of the block and a gear puller attached to the gear. You may need to use a bearing puller on the back side of the gear then attach a gear puller to it. K.R. Wilson made a tool for the job, but they are hard to find.

MrHenderson

10-22-2024 @ 4:57 PM

reply profile send p.m.

Member
Posts: 19
Joined: Jul 2024

Thanks for your thoughts. I guess I don't have to take it off. Is it pressed on AND has a key? I thought it might be work around. My issue is with the timing take a look at the cam gear placement. I think it is incorrectly installed.
The engine starts dependably and runs-but rough. After I opened it up I set up #1 TDC comp. That is the picture if I uploaded correctly. Note the cam timing mark UP, as well as the crank mark. Is that right?
The engine was overhauled in '77 but I am just now getting to finish the vehicle. I think the factory cam timing mark is the 1/4" "notch" in line with the distributor groove.

This message was edited by MrHenderson on 10-22-24 @ 4:59 PM

carcrazy

10-22-2024 @ 10:23 PM

reply profile send p.m.

Senior
Posts: 1699
Joined: Oct 2009

You do not need to remove your crankshaft gear! You just need to rotate your crankshaft one revolution to have the crankshaft gear and the camshaft gear timing marks line up correctly for TDC on #1 cylinder power stroke. You have them shown at the TDC position of #1 cylinder intake stroke.

40 Coupe

10-23-2024 @ 4:29 AM

reply profile send p.m.

Senior
Posts: 1697
Joined: Oct 2009

The crank rotates twice for every revolution of the cam. The timing marks do not line up at TDC which is typical for the early flat head . You are correct the cam gear timing mark is at 12:00 you can also see the small scratch by the gear teeth as well as the mark on the ID of the gear. The mark on ID of the cam gear should line up with the small scratch in the face of the cam which is about 5:00 from your photo.
Ford used K R Wilson tools and they made a crank shaft gear puller as well as installation tool. If you want to remove the cam gear suggest drilling the ID of the gear next to the cam. This usually releases the press and allows the cam gear to be removed.

This message was edited by 40 Coupe on 10-23-24 @ 5:22 AM

MrHenderson

10-26-2024 @ 6:05 AM

reply profile send p.m.

Member
Posts: 19
Joined: Jul 2024

So are you saying that the cam gear is oriented incorrectly, as I believe?
There is a small scratch on the camshaft at the cam gear. (a little hard to see)
Is the tiny triangle shaped mark @ 5 o'clock a factory mark? I used it when I reinstalled the camshaft.
That made the valves closed at ignition point, but the intake is late according to the procedure in the FORD chassis repair manual. (checks cam position by flywheel teeth)

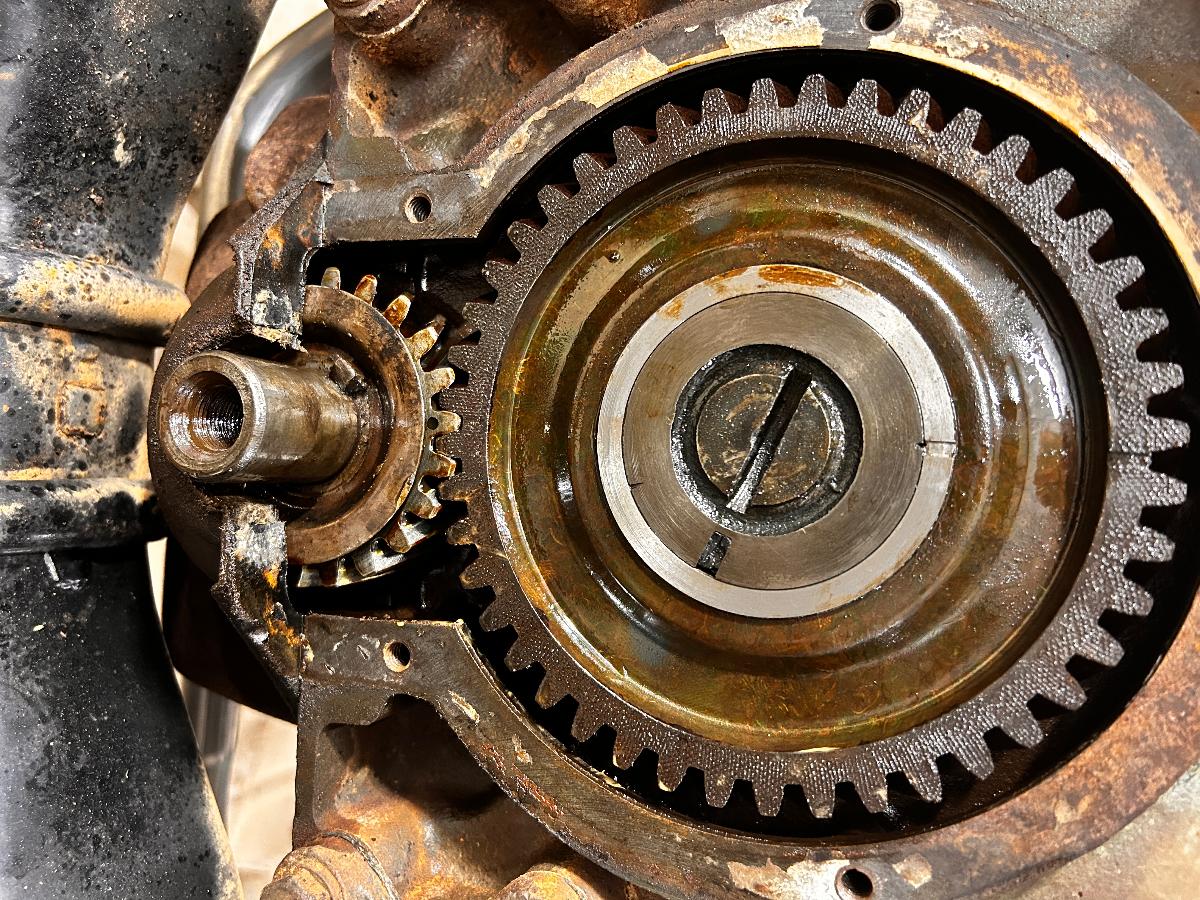

This picture is the position I used to reassemble the engine. I don't think it meets the "approximately three teeth before TDC ex." as it is described in the chassis manual. But it starts instantly, runs with 18" vacuum, and sounds so good after 47 years. The difference is that I never had to raise the distributor timing plate all the way up back then.

Bottom line for me is this, and tell me if I'm wrong. The maximum incorrect assembly of the cam gear to camshaft is 1 tooth. So it could be less. I stopped adjusting with both valves closed at TDC ready to intake. Will moving it one more tooth be worth the trouble?

I feel good!
thanks!

This message was edited by MrHenderson on 10-26-24 @ 10:07 AM

40 Coupe

10-27-2024 @ 6:26 AM

reply profile send p.m.

Senior
Posts: 1697
Joined: Oct 2009

Your second photo has a red line on the cam face timing mark, it is just a scratch mark. The cam face timing mark should align with the cam gear inner timing mark. The cam gear outer mark should align with the crank gear timing mark the two timing marks will be adjacent to each other not 180 degrees apart. You have to remove the cam gear to get the marks aligned.

kirkstad

10-27-2024 @ 10:45 AM

reply profile send p.m.

New Member
Posts: 193
Joined: Jul 2017

I believe that "carcrazy" is correct!

TomO

10-27-2024 @ 11:14 AM

reply profile send p.m.

Senior
Posts: 7274
Joined: Oct 2009

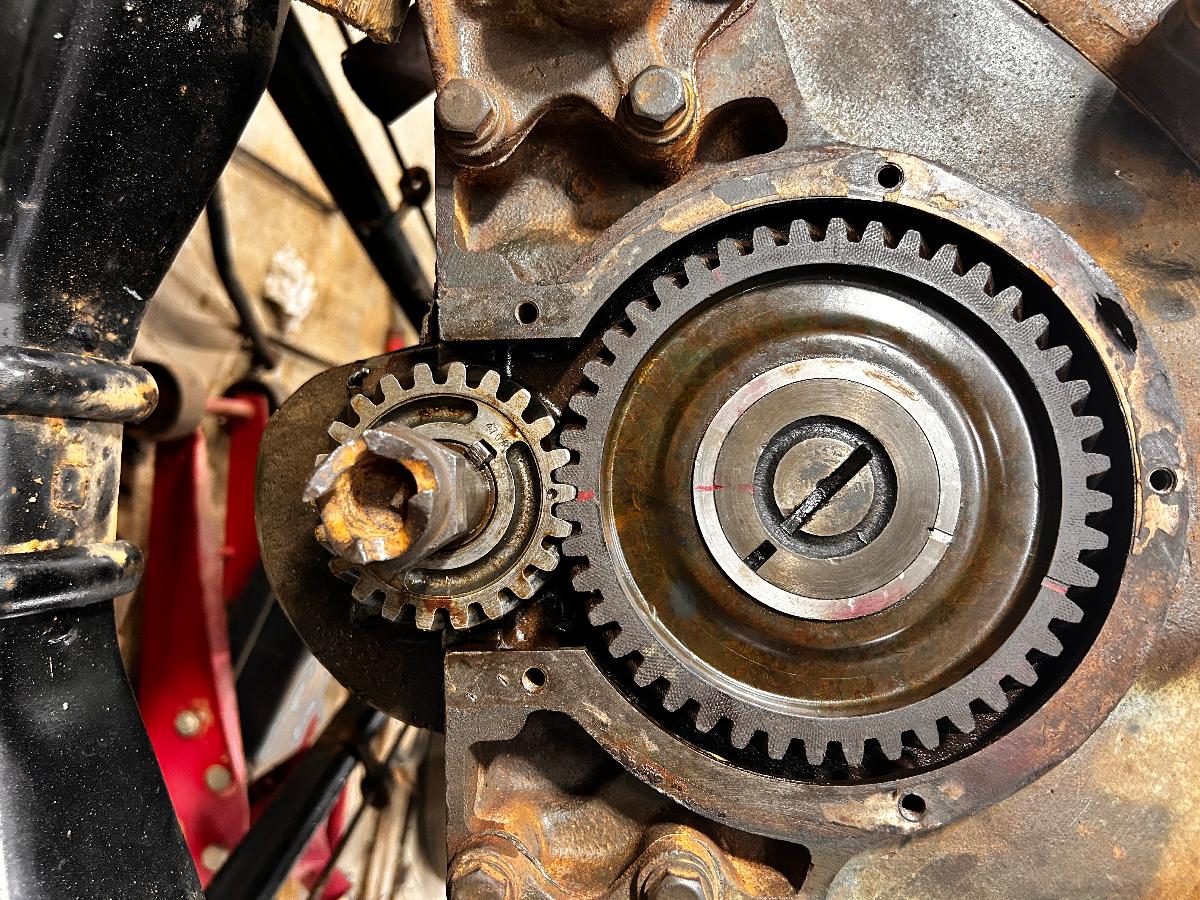

This should make it more clear. The red marks align the cam gear with the camshaft and the green marks align the camshaft with the crank gear.

Tom

This message was edited by TomO on 10-27-24 @ 11:20 AM

MrHenderson

10-27-2024 @ 12:11 PM

reply profile send p.m.

Member
Posts: 19
Joined: Jul 2024

TomO, I wish I could edit the pictures like that. That makes it crystal clear because I was already concerned (sure) that the engine shop incorrectly pressed the gear on the camshaft. (In 1977)
I can make that correction in an afternoon, But I don't have an afternoon this week. I will report back though because the adjustment from first picture to second picture made a lot of difference in the start and run. Now I just need Henrietta to idle like she used to.
But one more thing. The slot in the cam with your red dot is more aligned with a tooth than a valley. I think that means I can't get it perfect. Should I put the crank tooth with a dot, one valley before or one after the aligned tooth. I hope that makes sense.
Thank you all for you comments and great editing.
Brad

This message was edited by MrHenderson on 10-27-24 @ 12:22 PM
