Posted By |
Discussion Topic:
1938 Starter Installation
-- page:
1
2
|
|
Dream38v8 |
11-12-2023 @ 10:14 AM
|
|
|
New Member
Posts: 178
Joined: May 2016
|
I tried to start my '38 Fordor Deluxe yesterday. The engine would not turnover and all I heard was a hi pitch sound. The consensus among my local early Ford friends is the bendix is not operating (spring broke?). One of fellow Ford enthusiast gave me a starter / bendix assembly from a '39 Ford. My questions: Are the two starter assemblies interchangeable and what issues will there be removing and installing the starter assembly? The last question is would it be a better solution to get my original starter assembly rebuilt and by who?
Ray
|
1931 Flamingo |
11-12-2023 @ 10:19 AM
|
|
|
Member
Posts: 391
Joined: Nov 2019
|
Before trying to replace the starter get your buddies to come over and put the car in gear (probably 3rd) and try rocking the car back and forth. It should "release" the Bendix. Always worrked on my Model A. Paul in CT
|
Dream38v8 |
11-13-2023 @ 12:35 PM
|
|
|
New Member
Posts: 178
Joined: May 2016
|
1931 Thank you. We rocked the car in 3rd. We heard a small ping as the Bendix released. The car started and I went for a short ride. Is the anything I can do to stop that from happening again? Again thank you!
Ray
|
Kens 36 |
11-13-2023 @ 1:34 PM
|
|
|
Member
Posts: 352
Joined: Oct 2009
|

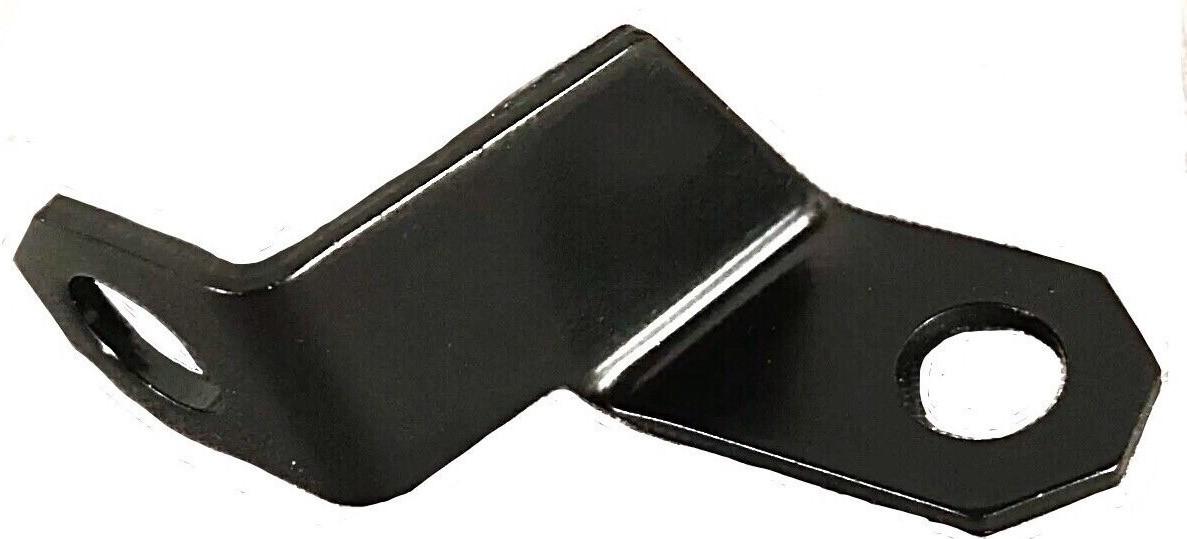

Ray, For starters (please forgive me) make sure the little bracket is present between the oil pan and the rear bolt of the starter. It helps stabilize the starter. If it is missing, it is available from any of the usual vendors. Ken
|
JayChicago |
11-13-2023 @ 9:41 PM
|
|
|
Member
Posts: 493
Joined: Jan 2016
|
"The engine would not turnover and all I heard was a hi pitch sound." Why would it make a hi pitch sound if the bendix was locked-up? I would think that would be the sound of a starter motor spinning, bendix not engaging the ring gear.
|
Dream38v8 |
11-14-2023 @ 5:39 AM
|
|
|
New Member
Posts: 178
Joined: May 2016
|
Jay, yes it was the armature spinning. See my reply above.
Ray
|
JayChicago |
11-14-2023 @ 8:47 AM
|
|
|
Member
Posts: 493
Joined: Jan 2016
|
Then why did rocking the car do anything?
|
1931 Flamingo |
11-14-2023 @ 9:35 AM
|
|
|
Member
Posts: 391
Joined: Nov 2019
|
Don't know but it works. Paul in CT
|
Dream38v8 |
11-14-2023 @ 12:22 PM
|
|
|
New Member
Posts: 178
Joined: May 2016
|
Ken, the starter bracket is missing. How important is the bracket? I found one online and I can order it later today.
Ray
|
Kens 36 |
11-14-2023 @ 12:50 PM
|
|
|
Member
Posts: 352
Joined: Oct 2009
|
Ray, Most would consider it quite important and it may prevent the problem you just had. The starter is very heavy and this bracket is insurance to keep it aligned correctly. Ken
|
