Posted By |
Discussion Topic:
Hand Crank
-- page:
1
2
|
|
46coupe |
11-02-2022 @ 12:07 PM
|
|
|
Member
Posts: 271
Joined: Oct 2015
|
i have the book. I was told that it was possibly a dealer option in Dec of 45 when the car was built. Even if it wasn't an option for the customer, I'd like to find one to try on my car and add to my tool collection.
|
42wagon |
11-02-2022 @ 6:03 AM
|
|
|
Senior
Posts: 584
Joined: Oct 2009
|
You should get the 41 t0 48 Ford book which has a chapter on tools. You will find that a hand crank was not one of the tools furnished with the car.
|
46coupe |
11-01-2022 @ 12:49 PM
|
|
|
Member
Posts: 271
Joined: Oct 2015
|
Thanks all for your input. I just thought it would be great to find one to put with my tool display. I've had experience using a crank handle on model Ts. My thumb is always pointing to the engine when I am gripping a crank handle. Yes, there is an opening at the bottom of the radiator to fit a crank handle. It's a early 46 so maybe the crank handle was offered as a option by the dealer? Thanks again for the help and the pictures. Brad
|
kubes40 |
11-01-2022 @ 11:04 AM
|
|
|
Senior
Posts: 3395
Joined: Oct 2009
|

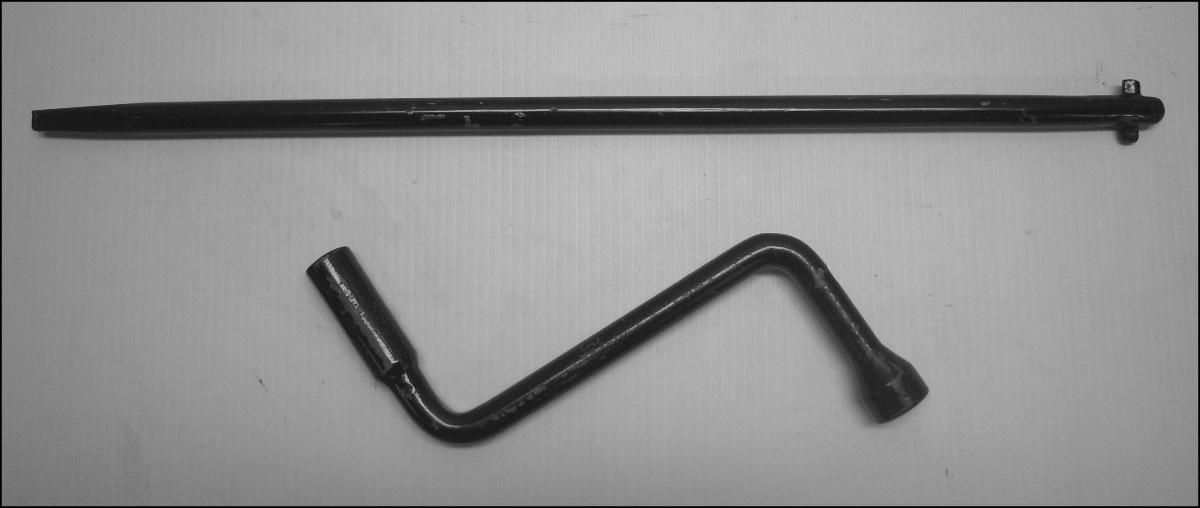

A thin wall deep socket is readily available and will fit over the bolt in the end of the crankshaft. I doubt it will fit through the opening n the grille or the radiator. By (at least) 1940, the extension rod and respective crank were service parts. In other words, they were NOT included in the factory tool kit. I have attached a photo of the two pieces. i am not certain of the rod length for '46.
Mike "Kube" Kubarth
|
carcrazy |
11-01-2022 @ 9:01 AM
|
|
|
Senior
Posts: 1653
Joined: Oct 2009
|
Should have mentioned, turn ignition off before turning engine over with a wrench. Make it much easier to turn by also removing all of the spark plugs.
|
37RAGTOPMAN |
11-01-2022 @ 6:02 AM
|
|
|
Senior
Posts: 1958
Joined: Oct 2009
|
using a socket [ if you can find one that fits over the ratchet nut ] is maybe ok for turning the engine over but NOT for STARTING, The crankshaft nut is a ratchet nut , this means if you use for starting, once the engine starts it disengages the starting hand crank . and be sure NEVER WRAP your thumb around the starting crank, because of kick back maybe a FORD CATALOG with photos would help, they are free, C&G and others hope this helps 37Ragtopman I enclosed a PHOTO of the ratchet nut 6319 this may help you can see it only works one way to the right, direction of engine
This message was edited by 37RAGTOPMAN on 11-1-22 @ 9:31 AM
|
kubes40 |
11-01-2022 @ 6:01 AM
|
|
|
Senior
Posts: 3395
Joined: Oct 2009
|
Carcrazy, the issue with your method is should the engine start, well, expect at minimum a broken finger.
Mike "Kube" Kubarth
|
carcrazy |
10-31-2022 @ 8:08 PM
|
|
|
Senior
Posts: 1653
Joined: Oct 2009
|
Are there holes in your radiator and grille to accept a hand crank? If there are and you want to use the hand crank to turn the engine over, you can get a deep well socket wrench to fit on the crank pulley ratchet bolt. You could then insert an extension shaft through the holes in the grille and radiator to turn the engine.
|
46coupe |
10-31-2022 @ 6:49 PM
|
|
|
Member
Posts: 271
Joined: Oct 2015
|
Thanks, Kube
|
kubes40 |
10-31-2022 @ 3:52 PM
|
|
|
Senior
Posts: 3395
Joined: Oct 2009
|
Also, by 1946, the crank was no longer standard issue and if desired, would be supplied by the dealership.
Mike "Kube" Kubarth
|
