EFV-8 Club Forum / General Ford Discussion / 1948 Ford Super Deluxe Coupe Shocks

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 1948 Ford Super Deluxe Coupe Shocks -- page: 1 2

51woodie

10-07-2022 @ 1:14 PM

reply profile send p.m.

Senior
Posts: 516
Joined: Jan 2017

J Ommert. Have yousortrd out the shock issue? How about an update.

51woodie

10-02-2022 @ 10:50 AM

reply profile send p.m.

Senior
Posts: 516
Joined: Jan 2017

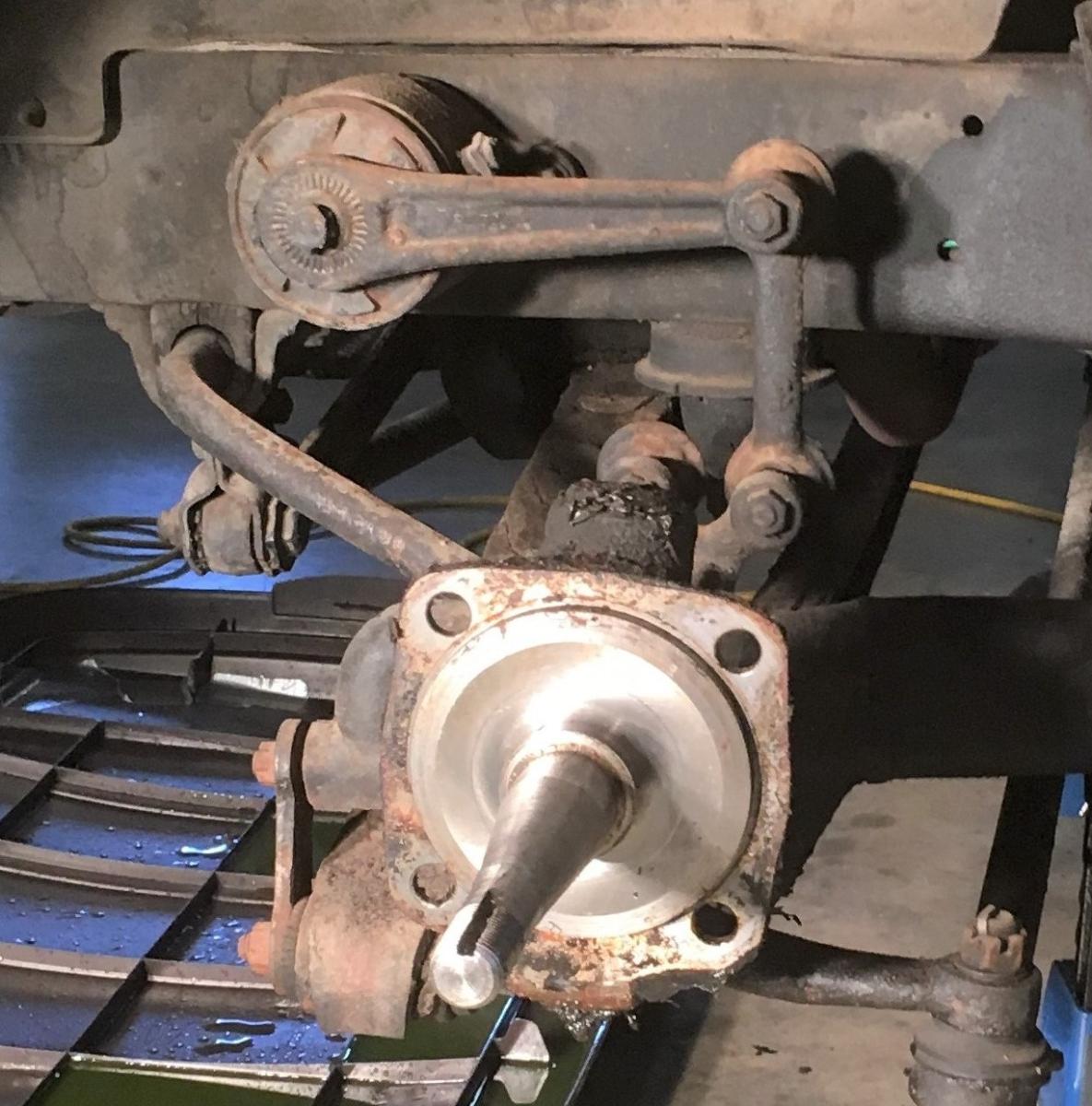

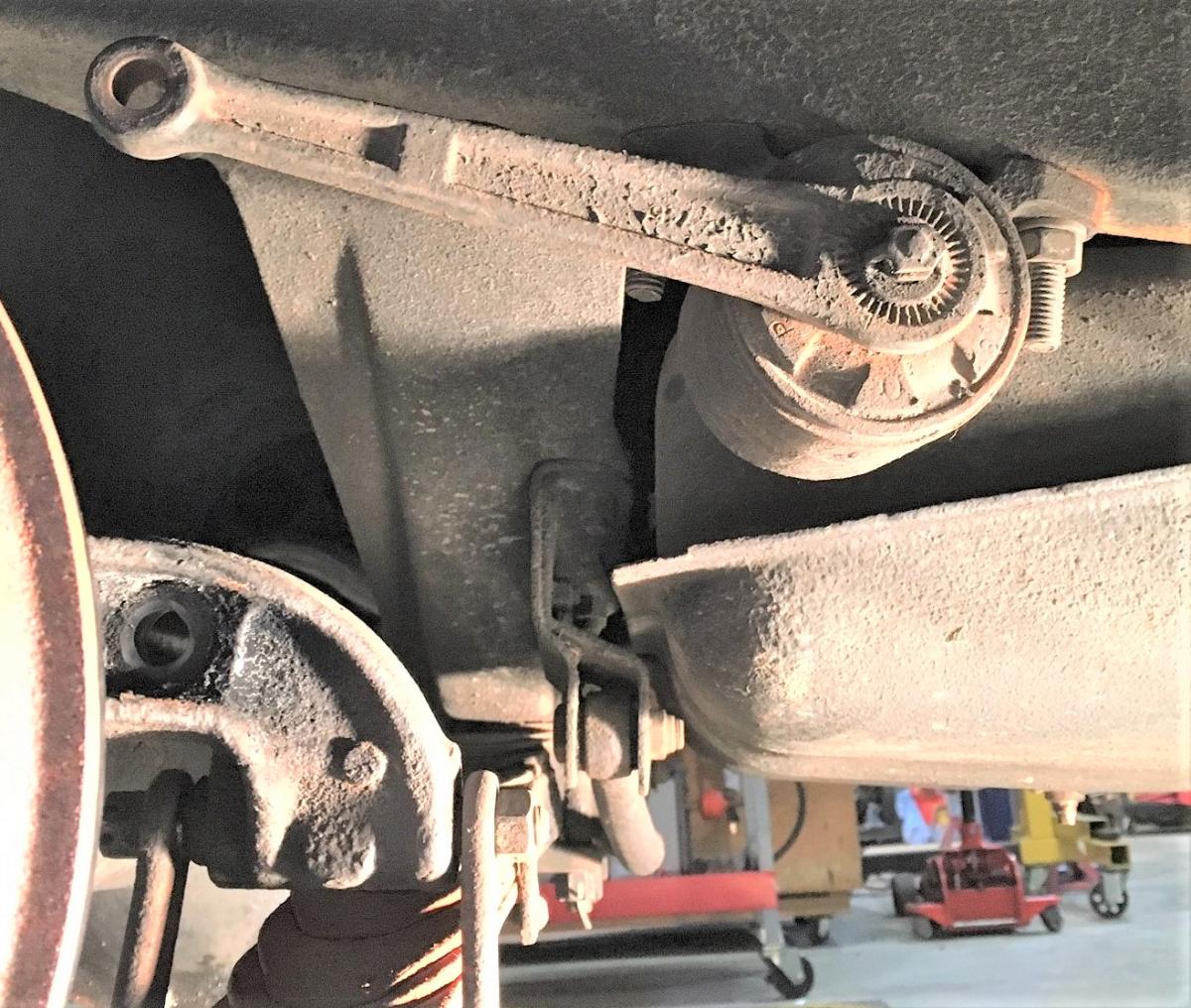

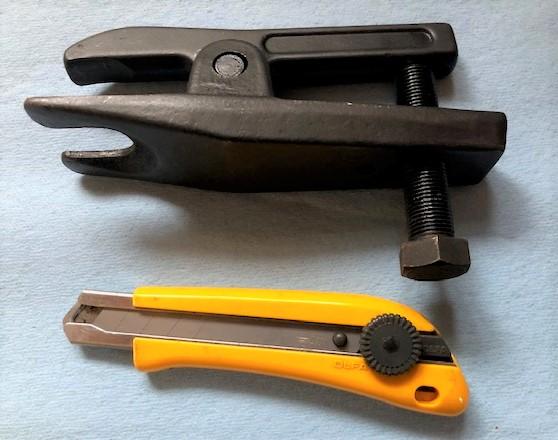

These are what I have on my '46 Super Deluxe. They must have been rebuilt at one time by a previous owner, as they work and don't leak. I had to replace the rear shock arm to axle connecting links, as the were worn. I moved the shock arms while they were disconnected, and there was good resistance. The tool I used to disconnect the links is (shown) available from Harbor Freight. The knife is for size reference only.

supereal

10-01-2022 @ 9:18 AM

reply profile send p.m.

Senior
Posts: 6819
Joined: Oct 2009

I used the shock absorber kits on my '47 that I obtained from C&G. (800) 266-0740. The front kit is 11A-18224. The rear is 11A-18125. The kits come with the shocks and mounts. It is unsafe to drive with weak or missing shock absorbers.

woodiewagon46

09-23-2022 @ 10:01 AM

reply profile send p.m.

Senior
Posts: 704
Joined: Nov 2012

42 deluxe, I do remember reading about 1947-1948 hoods with no hood ornament. It was only for a short period of time during the '47- '48 changeover. Hot rodder's must have wanted those hood's so they didn't have to fill any holes when they "nosed" their car.

1942deluxe

09-22-2022 @ 1:56 PM

reply profile send p.m.

Member
Posts: 97
Joined: Oct 2009

Woodiewagon 46, one of the 12 42-48 Fords I've owned was a 1948 Super Deluxe Tudor with Houdaille shocks. In all other aspects was normal 1948 Ford. Probably the most unusual car I had was a 1947 Ford "bull nose" (no hood ornament). Never saw one before I bought the car nor after I sold it. If the car used tube shocks would it have holes in the front axle to mount the lower bushing/bolt or was another method of attachment used?

This message was edited by 1942deluxe on 9-22-22 @ 4:22 PM

woodiewagon46

09-22-2022 @ 11:50 AM

reply profile send p.m.

Senior
Posts: 704
Joined: Nov 2012

According to the 1941-1948 Ford Book offered by the V-8 Club, at some point during the 1947 production run, Ford started using tubular shock absorbers for "Partial Production Only", meaning that the lever action Houdaille Shock absorbers were in the process of being replaced. Some early 1947 car's are known to use the new tubular shock's, while some car's built in the later part of the year were still using the lever type shock. All 1948 Fords were supposedly equipped with direct action tube type shock absorbers although some specimens continue to surface with Houdaille shocks. I would bet that your car came from the factory with the tube type shock. Do not assume that because you have holes punched in the frame that your car had the early shock's, because the new tube type, upper shock bracket used two of the original holes that the lever shocks used. P.S. if you don't have the V-8 Club Book it's highly recommended.

1942deluxe

09-21-2022 @ 6:48 PM

reply profile send p.m.

Member
Posts: 97
Joined: Oct 2009

This style of shock can be rebuilt. They are an adjustable shock unlike the tube shocks. New Old Stock can be found on Fordbarn and Ebay along with this site. If I recall correctly the numbers on the front arms are F924 and the rear are F881. There is a right and left also if I am remembering correctly.

This message was edited by 1942deluxe on 9-21-22 @ 6:50 PM

J Ommert

09-21-2022 @ 6:11 PM

reply profile send p.m.

Member
Posts: 2
Joined: Aug 2022

Yes..this is what I see Thanks

42wagon

09-21-2022 @ 4:33 PM

reply profile send p.m.

Senior
Posts: 585
Joined: Oct 2009

The shock that 42Deluxe has a picture of is what the early 48s had and of course looks nothing like a modern tubular shock. Apparently at some point in the 48 year Ford changed over to tubular shocks. You should find one or the other as it is doubtful that the car would not have any.

FordFreak

09-21-2022 @ 3:58 PM

reply profile send p.m.

New Member
Posts: 116
Joined: Nov 2013

That is a beautiful '48 coupe, & welcome to the site!! - F F

1937 Ford Coupe
1952 Ford F1 Pickup
1965 Falcon Sprint
