EFV-8 Club Forum / General Ford Discussion / 1935 ford

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 1935 ford -- page: 1 2 3

Mpgp1999

07-13-2022 @ 3:58 PM

reply profile send p.m.

Member
Posts: 16
Joined: Jun 2022

I am looking for a spare motor to rebuild. It has to be a 35.

40 Coupe

06-30-2022 @ 5:36 AM

reply profile send p.m.

Senior
Posts: 1701
Joined: Oct 2009

Horn rod OD=0.370", Tube OD=0.420 and ID=0.395" These measurements are approximate. Look to see if tube is oval or round or if rod is bent or oval. If you have an original temperature gauge it can be rebuilt. Look to John Wolf & Co. in Willoughby , OH Often a poor rebuild and the red liquid will fade to clean when exposed to sunlight.

This message was edited by 40 Coupe on 6-30-22 @ 5:45 AM

carcrazy

06-30-2022 @ 12:11 AM

reply profile send p.m.

Senior
Posts: 1703
Joined: Oct 2009

Replacement temperature gauges for 1935 Fords are hard to find. You can have your original gauge rebuilt by Yesteryear Ford Parts at www.yesteryearfordparts.com, Order phone 800-728-0762 or Technical questions phone 517-676-4416.

Mpgp1999

06-29-2022 @ 10:24 PM

reply profile send p.m.

Member
Posts: 16
Joined: Jun 2022

I am looking for a temperature gauge mine has broken and leaked all the fluid out

Mpgp1999

06-29-2022 @ 10:23 PM

reply profile send p.m.

Member
Posts: 16
Joined: Jun 2022

Is it possible that the horn rod diameter is too large. I removed the tube from the bottom and was unable to fit it over the horn rod on the bench

40 Coupe

06-29-2022 @ 5:18 AM

reply profile send p.m.

Senior
Posts: 1701
Joined: Oct 2009

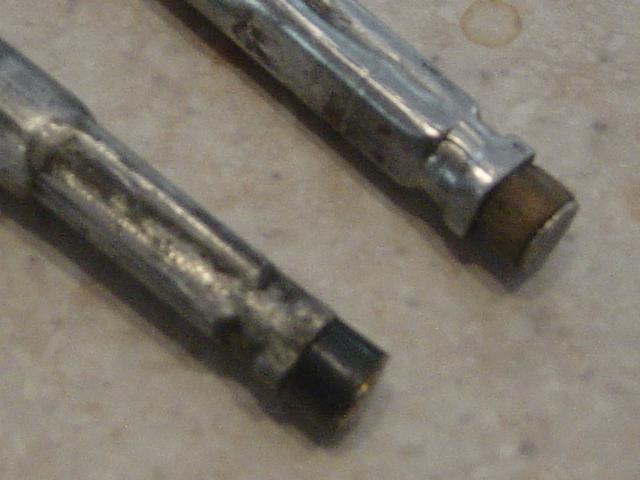

The horn rod goes from the top of the steering wheel all the way through the steering box and into the light switch, which is mounted to the bottom of the steering box. Turning the center of the steering wheel will turn the horn rod and light switch to various positions to allow high beam headlights, low beam, parking lights an off position. The rod has to be very straight to go through the steering inner column without interfearance. The tube at the bottom of the steering box prevents the lubricant in the box from leaking out. The horn rod can be inserted first and then the plate with the tube can be placed over the rod and bolted to the bottom of the steering box. Make sure the tube is secure in the plate! It is best to solder the tube to the plate to prevent lube leaking into the light switch. The horn rod has a wire through it to contacts at the horn button and at the bottom of the rod (bottom contact shown below). When the horn button is pushed the wire becomes grounded and the ground is applied to the center contact of the light switch where the horn wiring is attached. The horns have battery polarity on one wire and with the second wire becoming grounded the horns are energized.
Some people are quick to criticize but don't let that prevent you from asking questions on this form! Many here are willing to assist you.

Mpgp1999

06-28-2022 @ 9:41 PM

reply profile send p.m.

Member
Posts: 16
Joined: Jun 2022

Yes it’s in the mail.

trjford8

06-24-2022 @ 6:53 AM

reply profile send p.m.

Senior
Posts: 4242
Joined: Oct 2009

Have you purchased the V-8 Club's 35-36 Ford book or the V-8 Club's engine book? Both books will help you understand the car and the engine. Obviously you are new to these old Fords and you need all the basic knowledge you can get by reading. It also helps you ask specific questions. Both books mentioned can be purchased in the left menu of this site in the "On-Line Store".

Mpgp1999

06-23-2022 @ 7:54 PM

reply profile send p.m.

Member
Posts: 16
Joined: Jun 2022

I am trying to locate the oil pump. I would like to add a filter.

Mpgp1999

06-23-2022 @ 7:54 PM

reply profile send p.m.

Member
Posts: 16
Joined: Jun 2022

Apparently I have not been smoking the good stuff. I was under the impression that the horn rod controlled the advance. This car is 10 years newer than anything I have worked on in the past. I was not sure what the horn rod is supposed to do. The horn rod will not go all the way down the steering column. There is a tube coming from the bottom of the steering box prevents the rod from protruding out. I also do not know how to hook up the horn to the button.

<< previous || next >>

PAGE: 1 2 3
