EFV-8 Club Forum / General Ford Discussion / Overdrive Solenoid Question

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Overdrive Solenoid Question

stephenca118

10-28-2021 @ 2:04 PM

reply profile send p.m.

Member
Posts: 2
Joined: Oct 2021

New guy here. I have a 53 customline all original stock. Changing out the 3 speed for a ford 3 speed with O/D. Original 6 volt. I got a solenoid with the transmission that came out of a 55 t-bird. The solenoid should have 2 wires coming out of it, but it only has the one blue. Anyone have any idea where the other wire attaches. Thank you in advance. Steve

This message was edited by stephenca118 on 10-28-21 @ 2:05 PM

Dan Duszkiewicz

10-28-2021 @ 3:35 PM

reply profile send p.m.

Member
Posts: 15
Joined: Sep 2020

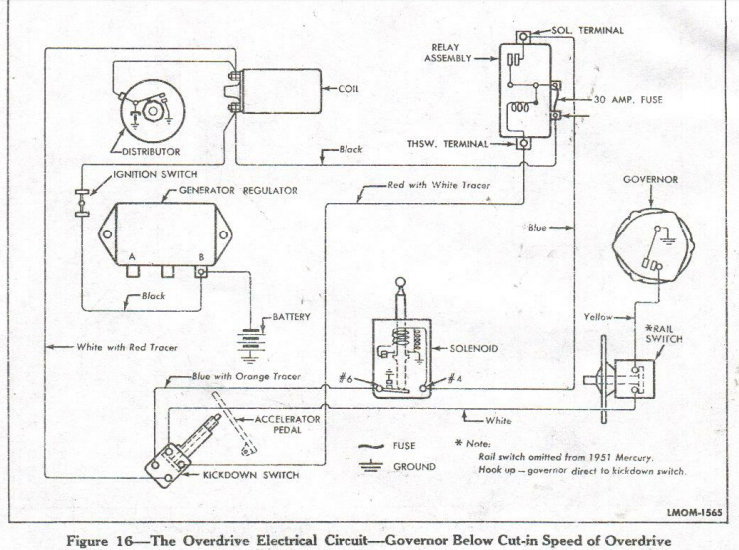

See attached wiring schematic for the OD system. Hopefully this helps.

40cpe

10-28-2021 @ 5:09 PM

reply profile send p.m.

Member
Posts: 475
Joined: Jan 2010

As the schematic shows, the solid blue wire is the power in wire to activate the solenoid. The solenoid should activate wth power to the blue wire with the case grounded. The missing wire goes to a grounded switch that temporarily shorts the ignition for kickdown. If the solenoid is operational, the OD will kick in without the 2nd wire, you just won't have the conventional kickdown into straight drive.

stephenca118

10-29-2021 @ 5:15 AM

reply profile send p.m.

Member
Posts: 2
Joined: Oct 2021

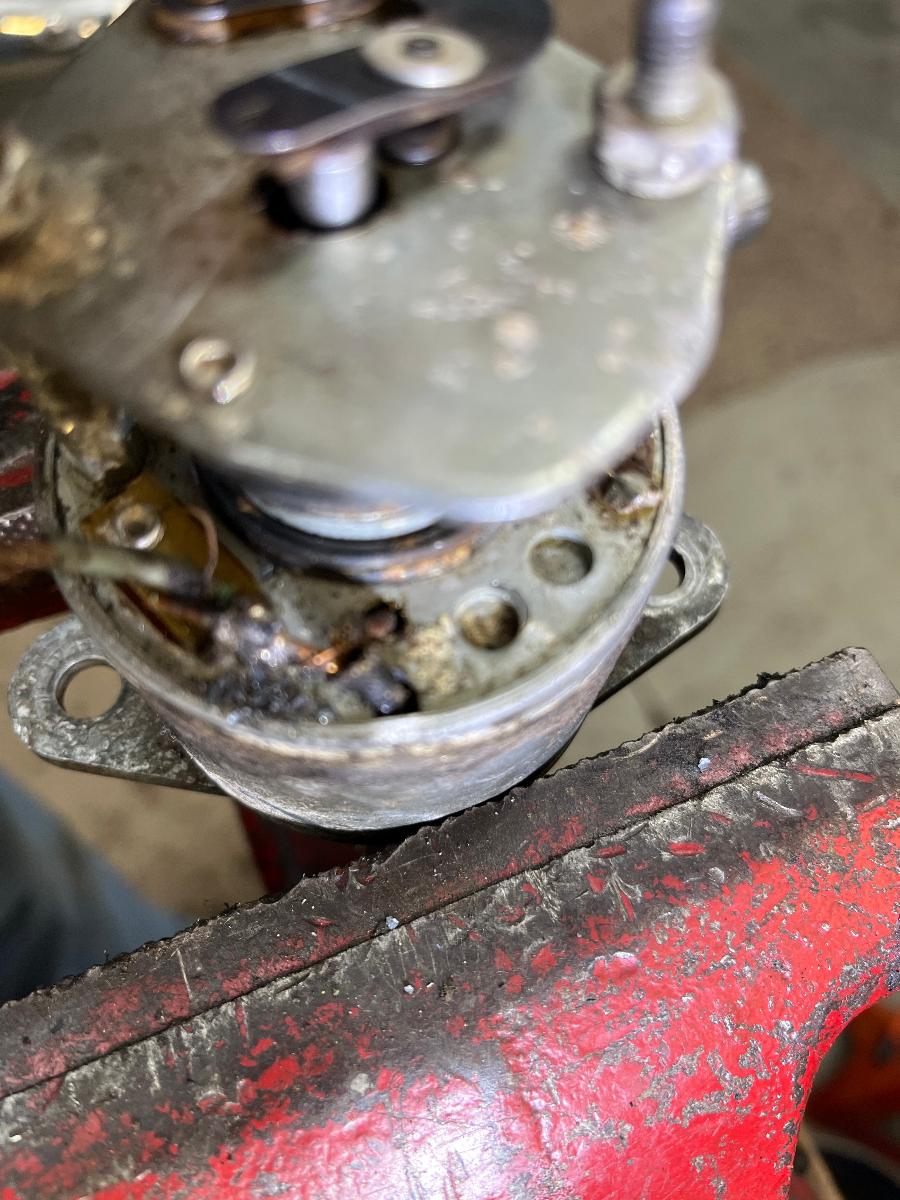

Thank you very much for the replay and the diagram. I tried to test it and it indicates dead short. If you look close at the center picture there are two wires coming through the plate soldered together to become the blue wire. I am thinking it should be the larger blue and the smaller the red? Or would one be the pull down and the other the hold down?
I will separate the two and retest.
Thank you again for the reply.

Dan Duszkiewicz

10-29-2021 @ 8:04 AM

reply profile send p.m.

Member
Posts: 15
Joined: Sep 2020

Here is a link to a discussion on the Fordbarn forum regarding this subject. See post #28 (second from last) for a description of the solenoid operation. These are rebuildable.

https://www.fordbarn.com/forum/showthread.php?t=230779&showall=1

sarahcecelia

10-30-2021 @ 8:44 AM

reply profile send p.m.

Senior
Posts: 1193
Joined: Mar 2013

What does "Governor Below Cut-in Speed of Overdrive" mean??

Dan Duszkiewicz

10-30-2021 @ 9:58 AM

reply profile send p.m.

Member
Posts: 15
Joined: Sep 2020

It means the governor's speed (vehicle speed as it is driven by the transmission output shaft) is below the speed needed to close the contact and complete the ground circuit. Completing this ground allows the relay to energize the solenoid. Usually the minimum vehicle speed is around 27mph although this has been known to vary (Borg Warner stated 20-32 mph depending on vehicle manufacturer).
