Posted By |
Discussion Topic:
1937 floor boards
|
|
mzahorik |
10-07-2021 @ 11:19 AM
|
|
|
Member
Posts: 209
Joined: Nov 2009
|
I'm to the point of replacing the floor boards in my 37 4dr. I had to make some new boards and I have the rubber seals. My question is does the inspection plate go over the floor boards or under. Seems that everything fits better with the inspection plate under the floor boards, but that seems bckwards. Mike
|
1937sedandelivery |
10-07-2021 @ 11:47 AM
|
|
|
Senior
Posts: 501
Joined: Jul 2014
|

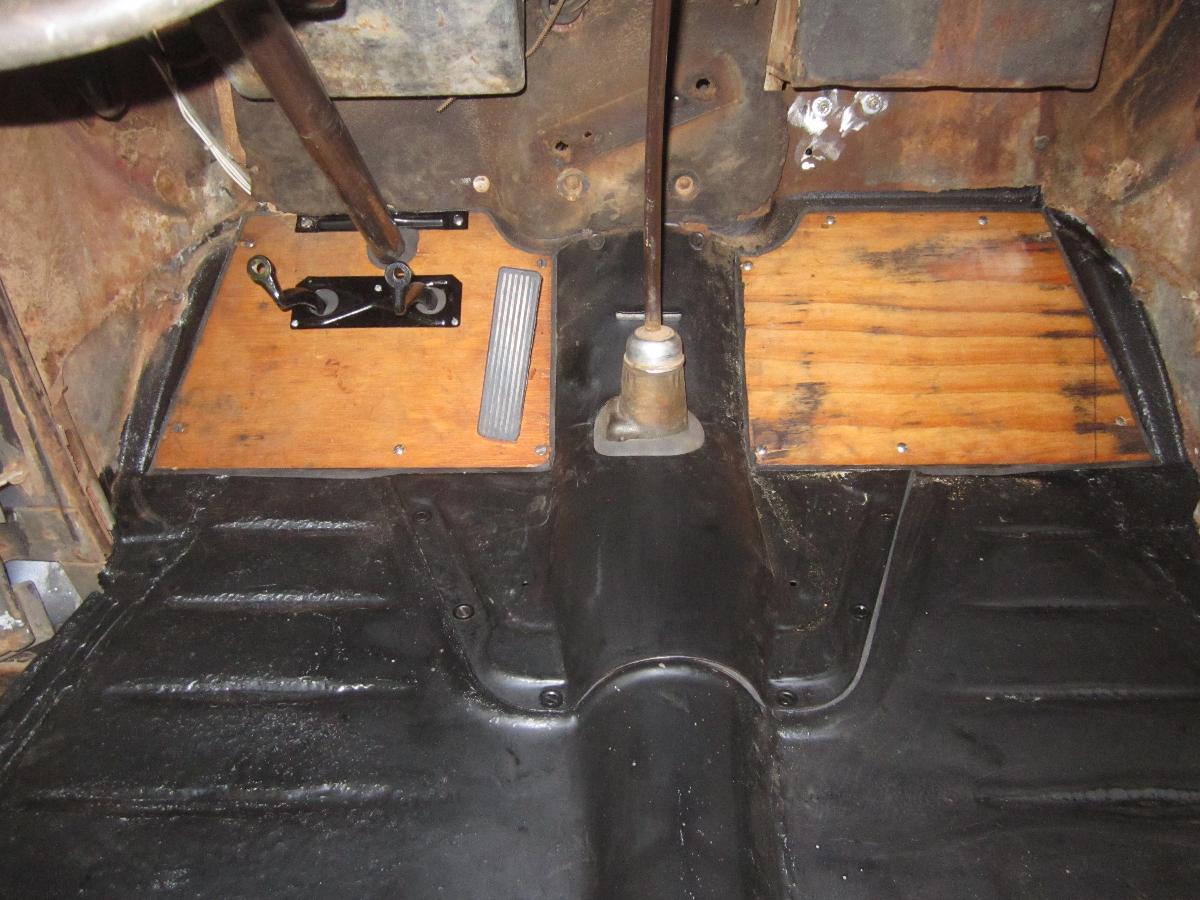

Mike, Not sure I understand what the "inspection plate" is. Attached is a pic of my 37 Fordor floorboards. gregg
|
mzahorik |
10-07-2021 @ 11:57 AM
|
|
|
Member
Posts: 209
Joined: Nov 2009
|
I meant the cover over the transmission. Just called it an inspection plate, because you can inspect the under stuff. Thanks for the picture. Looks like you have to remove the floor boards to get this plate off, no matter what you call it. Thanks, Mike
|
trjford8 |
10-07-2021 @ 12:55 PM
|
|
|
Senior
Posts: 4218
Joined: Oct 2009
|
Transmission cover goes in first and then the wood floorboards. The trans cover also has a seal where it mates to the steel floor pans and transmission tunnel.
|
1937sedandelivery |
10-07-2021 @ 1:29 PM
|
|
|
Senior
Posts: 501
Joined: Jul 2014
|

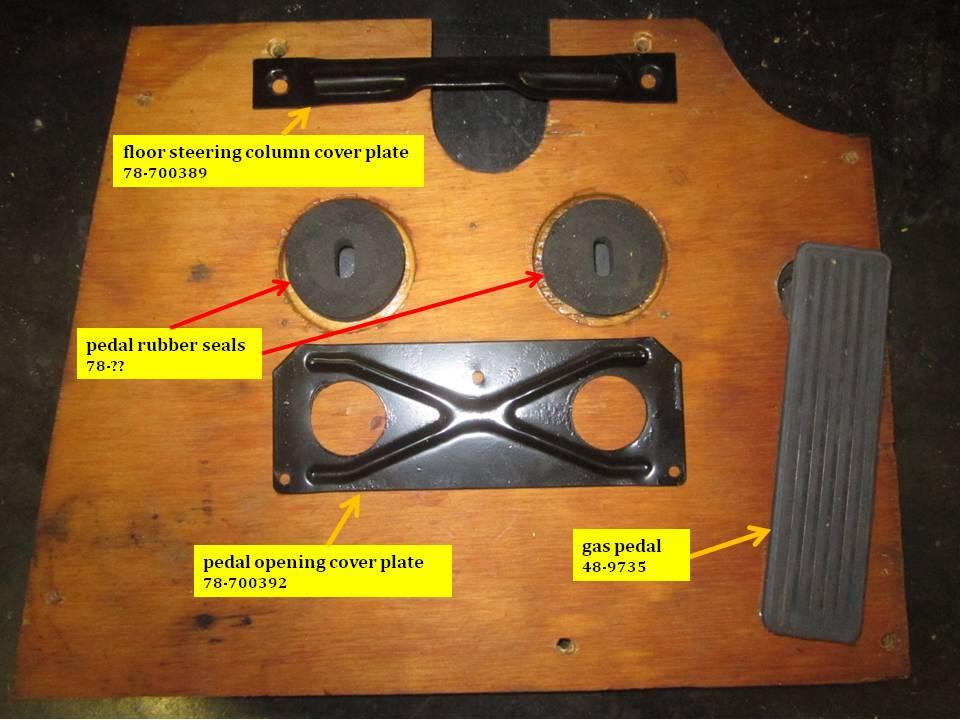

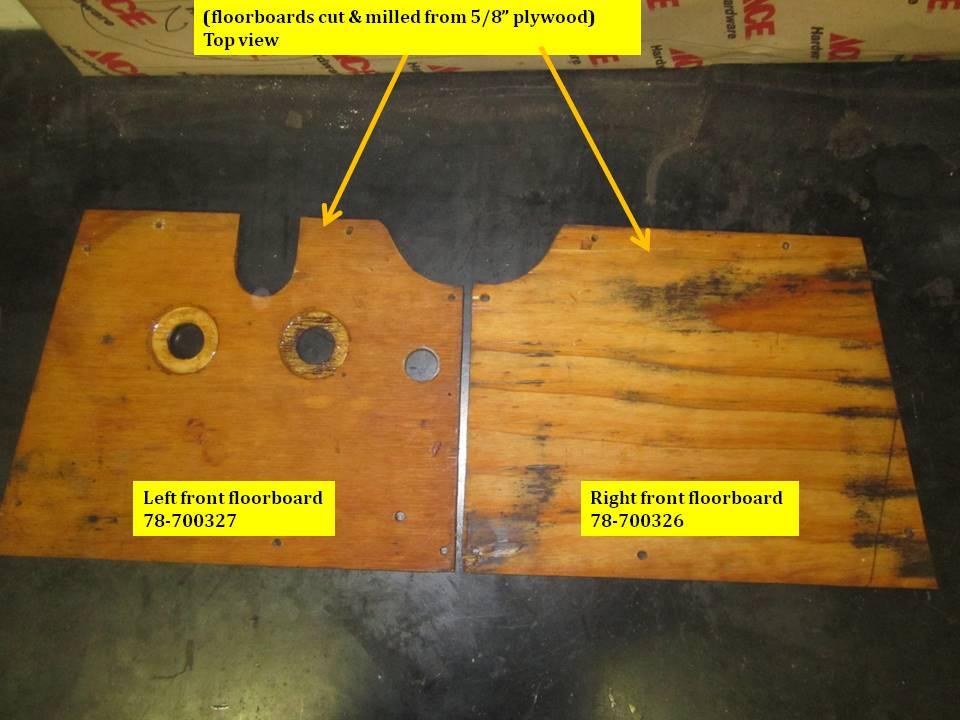

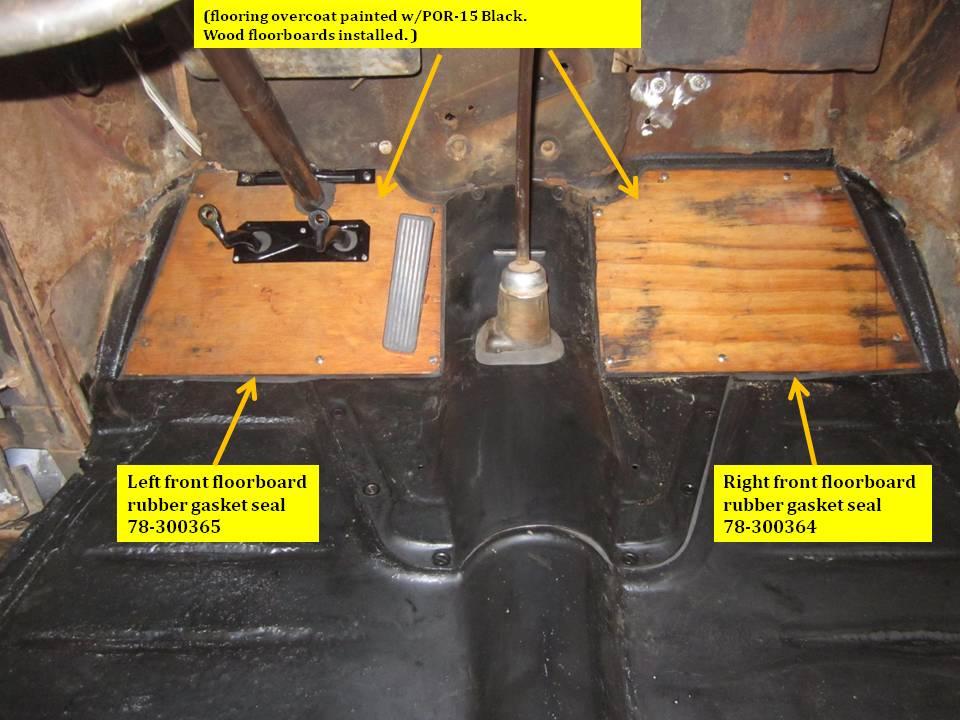

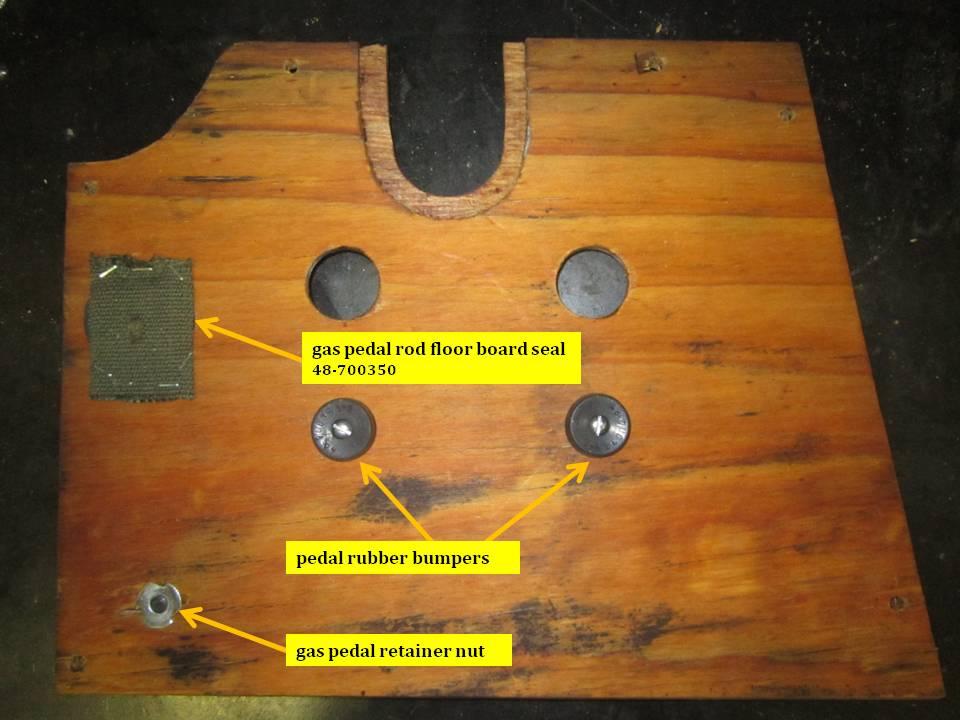

And here are a few more pics. gregg
|
mzahorik |
10-08-2021 @ 2:43 PM
|
|
|
Member
Posts: 209
Joined: Nov 2009
|
Thanks for the pictures, very helpful, Mike
|
