1937 sedan all headlight beams quit
-- page:
1
2
|
|
trjford8 |
09-28-2021 @ 6:15 AM
|
|
|
Senior
Posts: 4218
Joined: Oct 2009
|
Sounds like a complete new wire harness is in order for your car. It's cheap insurance.
|
feufeu |
09-25-2021 @ 3:29 PM
|
|
|
Member
Posts: 2
Joined: Jul 2020
|

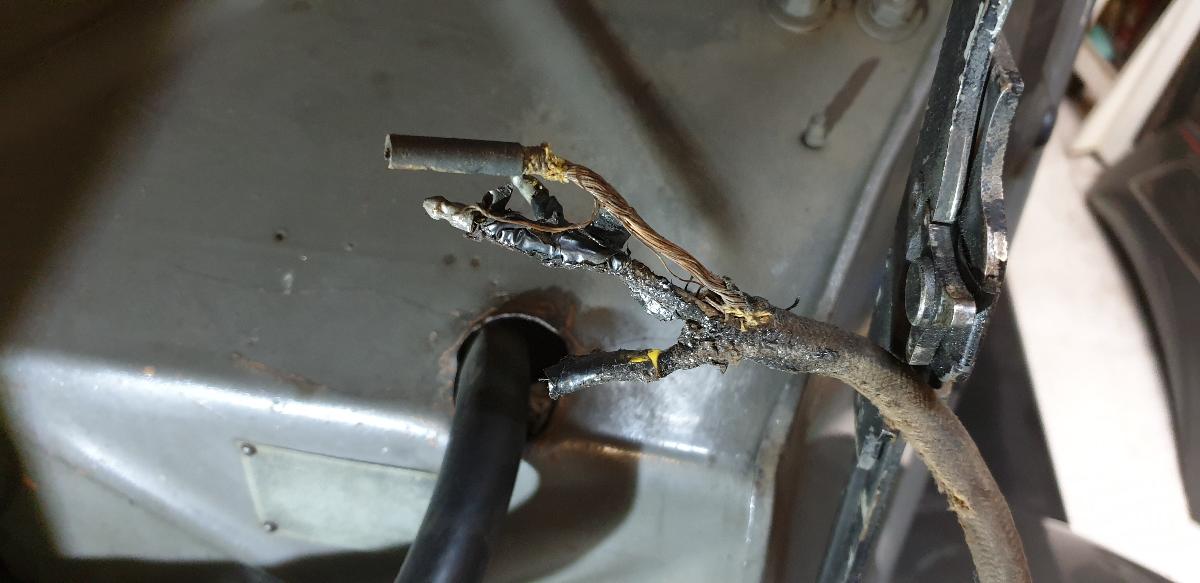

Hi men, an other diag that, i hope, will help you! My advice if the wires are original, replace them if you on't want to burn the car... a picture to illustrate ...
|
bradshari@aol.com |
09-24-2021 @ 9:39 PM
|
|
|
Member
Posts: 20
Joined: Sep 2021
|
Hi everybody. You solved my problem! I taped the end of a dead end wire in that area and replaced the 20 amp fuse and all the lights work! I have to try to figure out what those various open ended wires were/are for. They come out of the various harnesses that are in those cloth conduits and it is hard to say where they even originate. That rats nest under the dash is just a jumbled mess of wires from the add on turn signals and fog lights and 2 gauges that the previous owner wired. Also a toggle switch for the speedometer and other original gauge cluster instead of the original switch on the dash under the radio. I never knew turn signals had so many wires. I did buy the 1937 book. It is really fun to study it and then go out into the garage and check my car. The car is pretty original. You folks are great! Thank you for you time and expertise! Brad. I am going to post another problem now. 2 Nd gear problem.
|
JM |
09-24-2021 @ 8:03 AM
|
|
|
Senior
Posts: 823
Joined: Oct 2009
|
Also, before you plug in that new fuse...you need to find that short and fix that, otherwise you'll blow any fuse you plug in that fuse holder.
John
|
cpipp01@aol.com |
09-24-2021 @ 7:02 AM
|
|
|
New Member
Posts: 146
Joined: Oct 2009
|
You might consider purchasing The Ford V8 Clubs 1937 Ford Book. It does not answer every question but it will help under stand your car. See attached.
|
37RAGTOPMAN |
09-24-2021 @ 6:37 AM
|
|
|
Senior
Posts: 1962
Joined: Oct 2009
|
hi is it possible to post a few photos, of what you are dealing with,? if the wires have been nibbled on ,[ RAT'S NEST ] it would be best to replace the wiring, for a safe ride, and reliable ride, my 2 cents 37Ragtopman
This message was edited by 37RAGTOPMAN on 9-24-21 @ 6:55 AM
|
alexthecarguy |
09-23-2021 @ 9:08 PM
|
|
|
Member
Posts: 13
Joined: Aug 2021
|
Have you managed to solve the problem?
|
bradshari@aol.com |
09-23-2021 @ 6:58 PM
|
|
|
Member
Posts: 20
Joined: Sep 2021
|

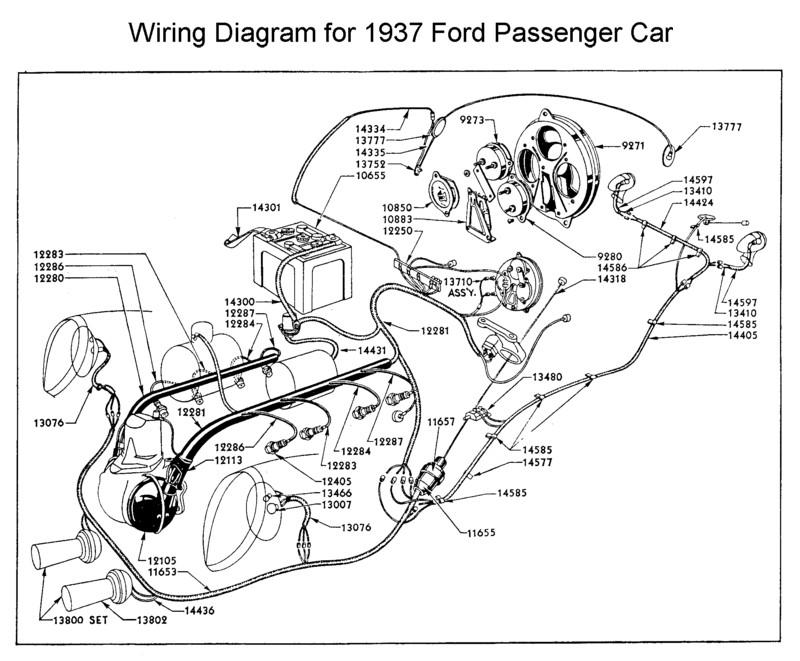

Also , thank you for the wiring diagram and the picture of the resistor and the warning not to touch it. I think I better disconnect the battery ground when I am not with the car so it doesn’t catch on fire and burn the house down! I tried one of those battery switch lever devices for one day . With it closed I didn’t have enough energy to start the car. Besides those occasional amputated wires here and there the wires behind the dash look like a rats nest. It has add on turn signals and gauges.
|
bradshari@aol.com |
09-23-2021 @ 6:47 PM
|
|
|
Member
Posts: 20
Joined: Sep 2021
|
Thank you ! I found that fuse. I didn’t even know it existed. I pulled it out. It looks spent. Intact but all gr eyed out looking. I will go to NAPA tomorrow for a new one. I wonder what I shorted. I do have some dead end wires here and there that I have no idea what they went to in the old days. I really appreciate your help.
|
1937sedandelivery |
09-23-2021 @ 7:44 AM
|
|
|
Senior
Posts: 501
Joined: Jul 2014
|
This message was edited by 1937sedandelivery on 9-23-21 @ 8:32 AM
|
