EFV-8 Club Forum / General Ford Discussion / Installing armrest 39 Standard

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Installing armrest 39 Standard -- page: 1 2

Gary M.

03-13-2021 @ 2:30 PM

reply profile send p.m.

Member
Posts: 218
Joined: Oct 2009

Hi guys, I want to install front door armrests on my 39 Tudor Standard . They were never on this car since new. I'm not sure how they mount. Does anyone have a diagram showing how ? I'm also installing a passenger side sun visor since the car never had one. Can I assume that there is a mounting bracket under the headliner ? It feels like there is but not sure. Any advice would be great. Thanks .....

kubes40

03-13-2021 @ 3:01 PM

reply profile send p.m.

Senior
Posts: 3406
Joined: Oct 2009

Gary, there are three holes behind the headliner that will accept the visor bracket screws. I suggest you feel for them and when you think you have them, push a pin through just to be certain. The "large" hole in the body (behind the liner) that is meant for clearance of the bracket pivot is more easily felt. Once you are confident you have found it, you'll need to slit the liner with a razor.
Installing the arm rest(s) is going to be a bit trickier as your door panels will not have clearance holes in the backing for ease of figuring the proper location of the three screws that secure the rest to the door panel.
I trust you have the necessary bracket with the arm rest(s).

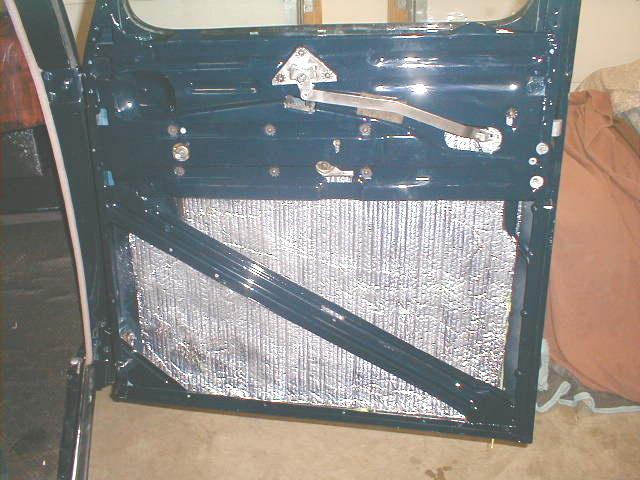

There's a "slot" in the inner door structure that the arm rest brace slips down - in to. In my photo, you can see it in the approximate middle, at the very bottom of the inner structure.

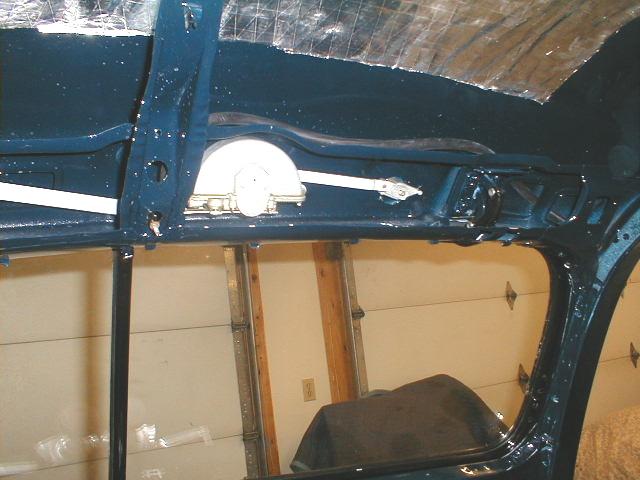

In the second photo, to the far right, you can see the holes for the visor.

Mike "Kube" Kubarth

Gary M.

03-13-2021 @ 4:42 PM

reply profile send p.m.

Member
Posts: 218
Joined: Oct 2009

Actually I do not have the brackets for behind the door panel. From your pics it looks like once the armrest is mounted to the door panel with the backing plate, the backing plate itself hooks over the support on the door then the door panel gets remounted. Yes it will be difficult to figure out exactly where the armrest is placed. Hopefully I can find a diagram of the exact placement of the screw holes. Thanks for the info !!

carcrazy

03-13-2021 @ 4:46 PM

reply profile send p.m.

Senior
Posts: 1667
Joined: Oct 2009

If your car was originally built as a standard model there may not be a bracket above the headliner for the RH sun visor.

Gary M.

03-13-2021 @ 5:07 PM

reply profile send p.m.

Member
Posts: 218
Joined: Oct 2009

It is there, I located it by pressing against the headliner.

kubes40

03-13-2021 @ 5:42 PM

reply profile send p.m.

Senior
Posts: 3406
Joined: Oct 2009

There are provisions for two visors in all '39 passenger car models .

Mike "Kube" Kubarth

cpipp01@aol.com

03-14-2021 @ 5:54 AM

reply profile send p.m.

New Member
Posts: 146
Joined: Oct 2009

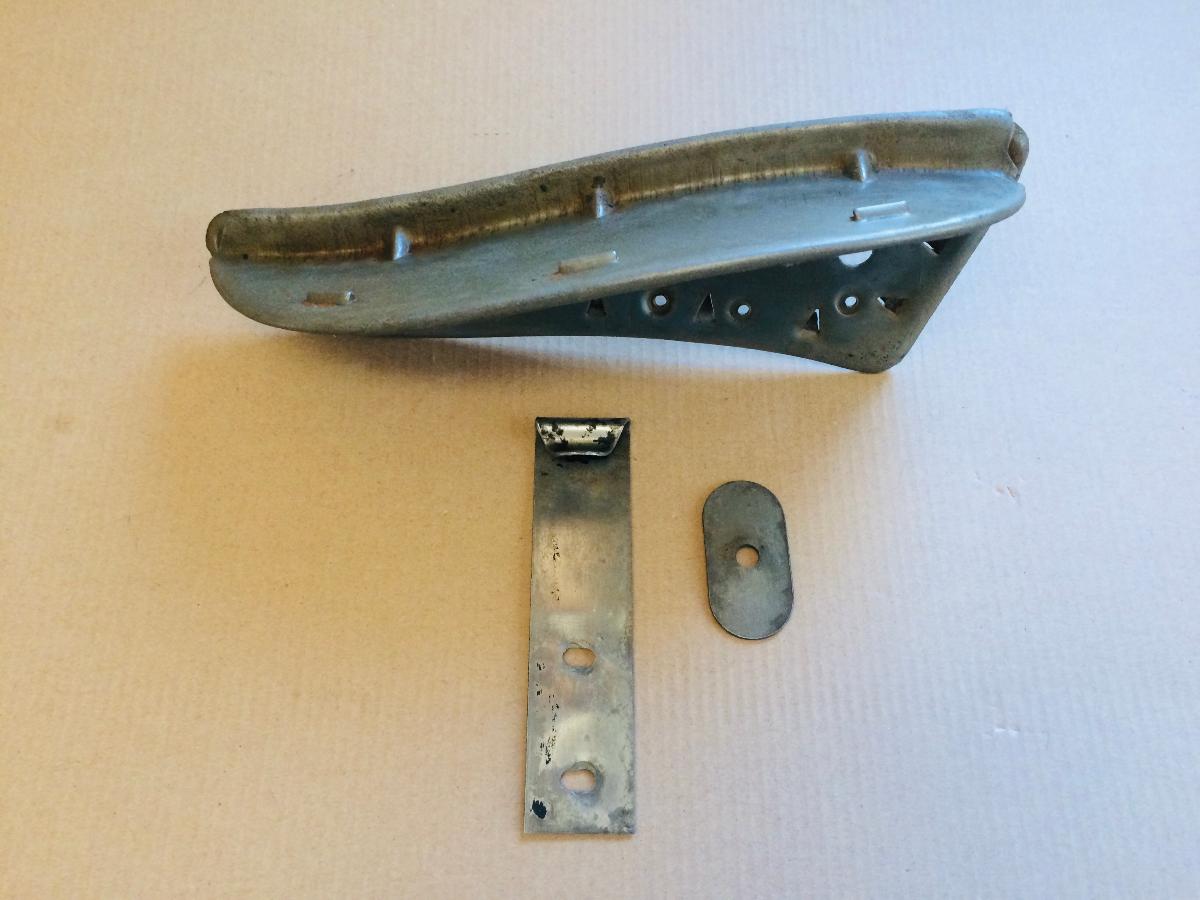

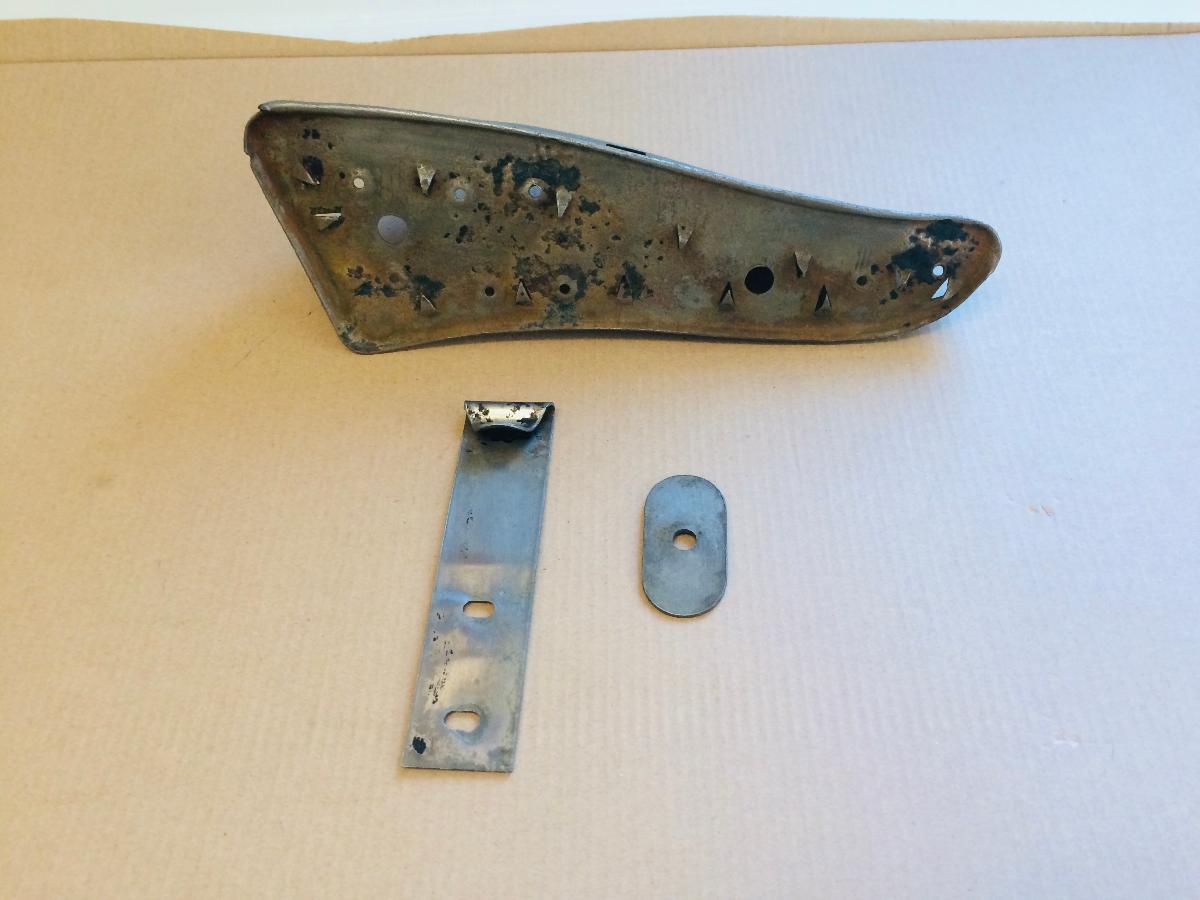

See attached photo it shows mounting brackets.

Gary M.

03-14-2021 @ 8:17 AM

reply profile send p.m.

Member
Posts: 218
Joined: Oct 2009

Wow, thanks, very helpful ! The person I bought my car from installed a Lebaron Bonny interior. Do you know if the replacement door panels would have a drill hole template printed on the backside of the panel ? I have not yet removed the panel. Thanks...

kubes40

03-14-2021 @ 8:37 AM

reply profile send p.m.

Senior
Posts: 3406
Joined: Oct 2009

They may. If I were to bet, I'd offer 75% odds the holes are there.

Mike "Kube" Kubarth

Gary M.

03-14-2021 @ 11:12 AM

reply profile send p.m.

Member
Posts: 218
Joined: Oct 2009

Thanks!! Also, I've never taken off the door handle or the window crank. What holds them on ?
