Posted By |
Discussion Topic:
Wiring Harness 1936 Ford
|
|
ojaijim42.com |
01-30-2021 @ 3:37 PM
|
|
|
Member
Posts: 9
Joined: Nov 2020
|
The wiring harness on my 1936 Ford Model 68 needs to be replaced. I purchased a harness from Mac's, but need instructions. Particularly, removing the harness from the end of the steering column.
|
nelsb01 |
01-30-2021 @ 8:53 PM
|
|
|
Senior
Posts: 982
Joined: Oct 2009
|
Do you have the Ford Reference Book for 1936 Ford V-8? Some call it the Owner's Manual. That has the wiring diagram in it. The harness at the end of the steering column is a twist and pull off attachment. Clean it up and you should see an 'L' stamping in the casing. Twist it slightly and then it should pull off. Once cleaned, put on some 'gripper' gloves and that will help you twist it off.
|
fordv8j |
01-31-2021 @ 8:27 AM
|
|
|
New Member
Posts: 176
Joined: Jan 2015
|
check if the wire ends are soldered; if not they should be
|
37RAGTOPMAN |
01-31-2021 @ 8:30 AM
|
|
|
Senior
Posts: 1958
Joined: Oct 2009
|
be sure to check all the bullet ends to make sure they are all soldered, so will not pull out and cause problems down the road and make sure they are the correct gauge wire, 37Ragtopman I used RHODE ISLAND wiring, comes with complete diagram
|
cpipp01@aol.com |
02-01-2021 @ 8:23 AM
|
|
|
New Member
Posts: 146
Joined: Oct 2009
|

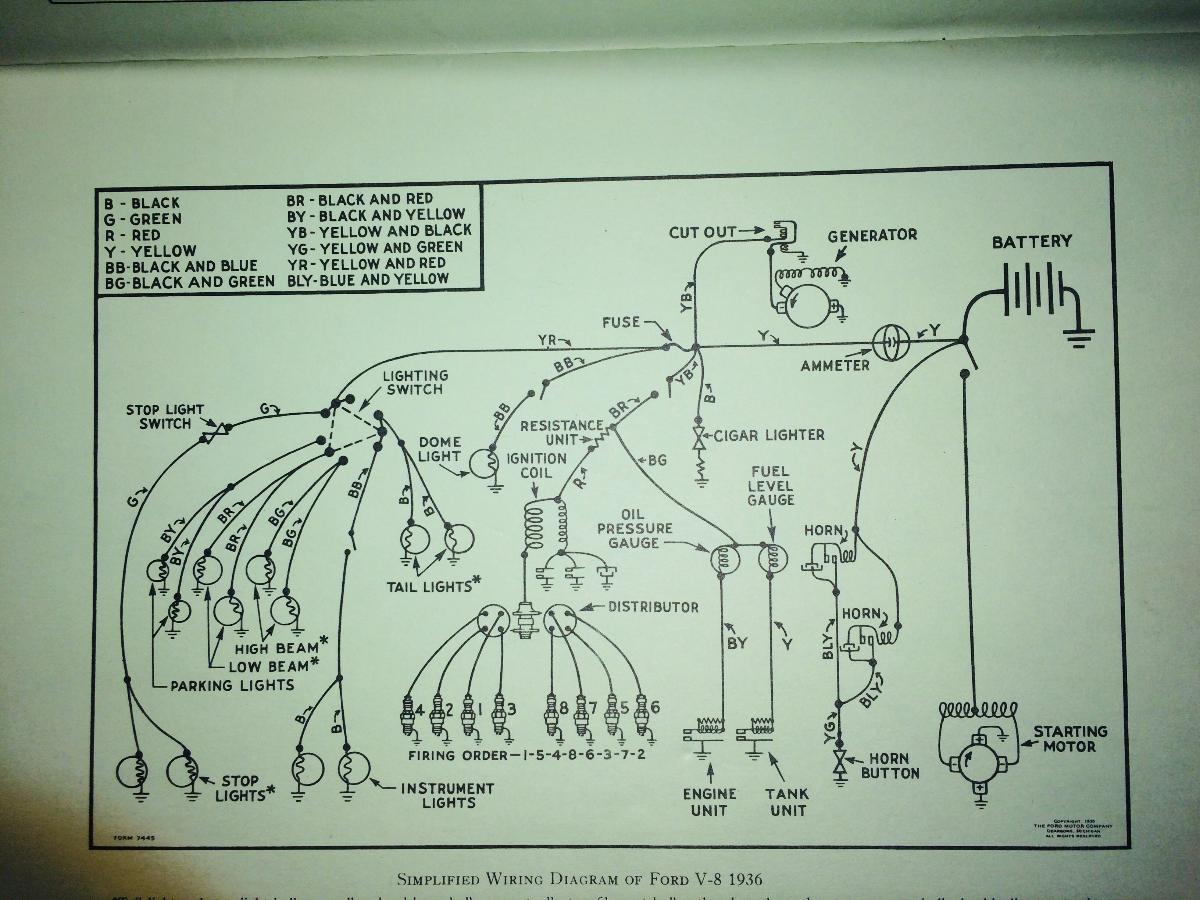

See attached.
|
cpipp01@aol.com |
02-01-2021 @ 12:15 PM
|
|
|
New Member
Posts: 146
Joined: Oct 2009
|

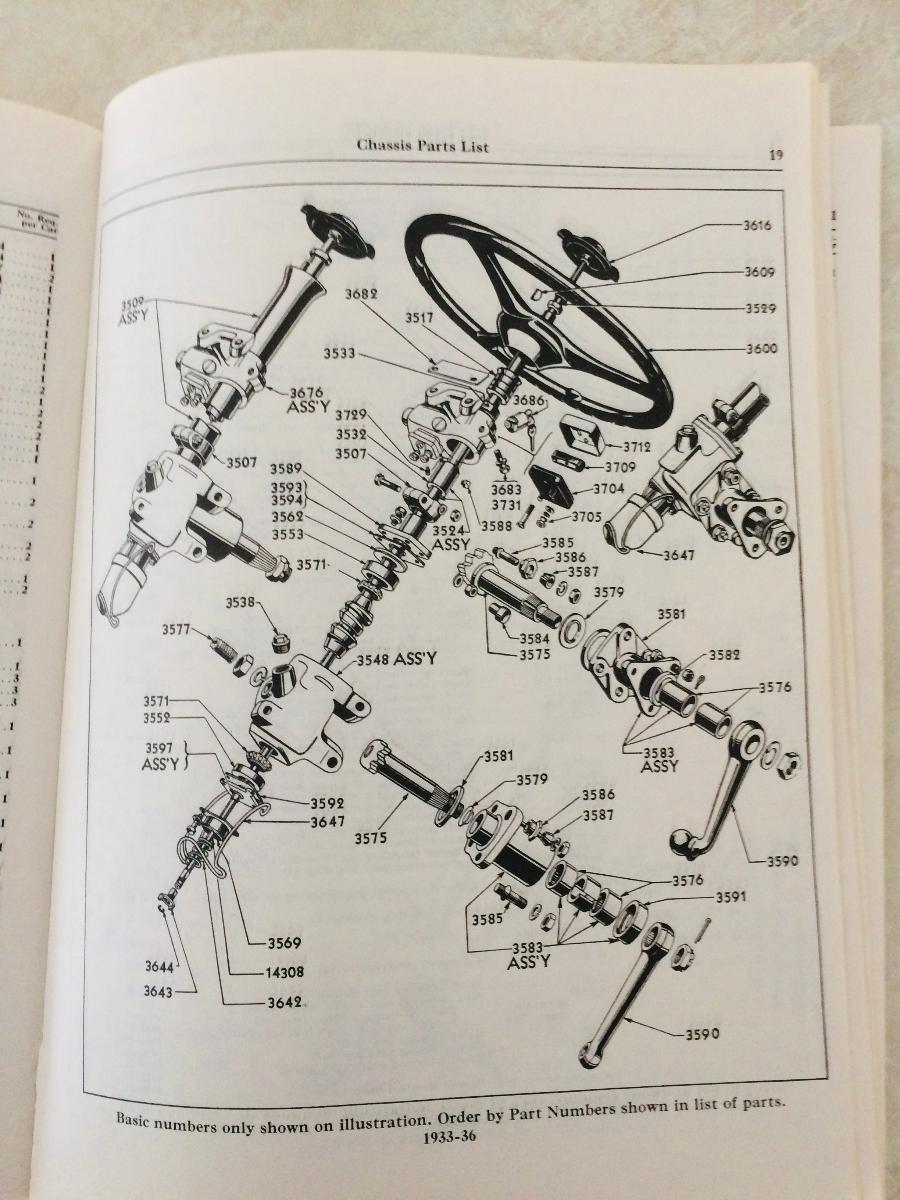

See attached.
|
