EFV-8 Club Forum / General Ford Discussion / Side Stripe on 1937 Ford V8 Phaeton

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: Side Stripe on 1937 Ford V8 Phaeton -- page: 1 2

ravi.avalur

09-25-2018 @ 12:21 AM

reply profile send p.m.

Member
Posts: 53
Joined: Aug 2010

I am currently repainting my 1937 Ford V8 Phaeton convertible. The car was supplied in Bright Vineyard Green and I am re-painting it the same color with the help of spray-out cards that I had purchased from the Autocolor Library.

I would like to understand what the correct color, width and appearance of the side stripe should be and what line it follows below the bonnet and along the edge of the trunk. Any images or illustrations would be wonderful.

ford38v8

09-25-2018 @ 9:27 AM

reply profile send p.m.

Senior
Posts: 2765
Joined: Oct 2009

Ravi, 1937 Fords having body color M-1751 Bright Vineyard Green were striped with M-744 Silver.
The stripe was 3/32" wide, and began at about 3/8" behind the trailing point of the grille, took a sweeping dip to 1/2" below the belt line, and continuing on that line, following the contour of the body accent line below the deck lid, and back to the grille on the opposite side.

Alan

ravi.avalur

09-25-2018 @ 11:47 PM

reply profile send p.m.

Member
Posts: 53
Joined: Aug 2010

Thank you Alan, that is very useful indeed ! You wouldn't have an illustration or photographs that exemplify the correct stripe would you? Much appreciated

ford38v8

09-26-2018 @ 12:00 AM

reply profile send p.m.

Senior
Posts: 2765
Joined: Oct 2009

Ravi, Have you purchased the V8 Club's 1937 book? There are photos in there that perfectly illustrate the stripe, and will answer many other questions you surely have about your '37 Ford. Go to the Home Page on this website, then Online Store. All the Club's books are accessed from that location.

Alan

3w2

09-26-2018 @ 4:47 PM

reply profile send p.m.

Senior
Posts: 843
Joined: Oct 2009

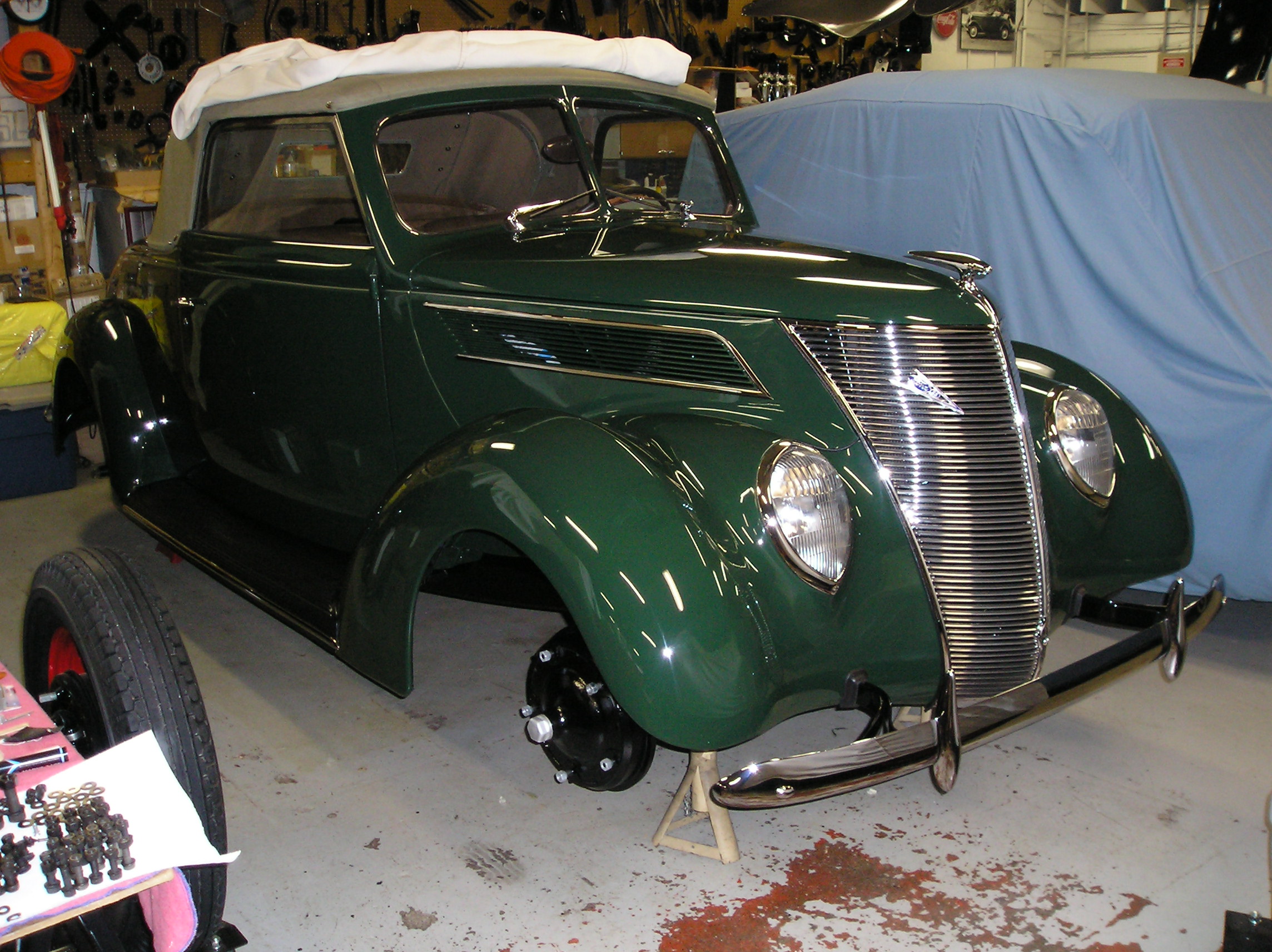

The attached may be helpful, at least for the front half of the stripe as it is the same for all U.S.-built '37 passenger cars.

ravi.avalur

09-26-2018 @ 9:45 PM

reply profile send p.m.

Member
Posts: 53
Joined: Aug 2010

Yes, in fact I did buy the 37 Ford book in 201o when I began the project.

The paint shop that is doing the paint job for me now has the book but work will only allow me to return home and to the paint shop in a few weeks. By any chance, would you be able to tell me which page the stripe is best illustrated on ? I could then ask the paint shop to check it before they start the work. Much appreciated !

ford38v8

09-26-2018 @ 10:03 PM

reply profile send p.m.

Senior
Posts: 2765
Joined: Oct 2009

Ravi, I would not allow a paint shop to stripe a garbage can. That is something that takes a lot of practice to get it right, and there are those who specialize in striping. Wait till you get your car back and ask for references before you hire someone to perform that delicate task.

Alan

ravi.avalur

09-26-2018 @ 10:05 PM

reply profile send p.m.

Member
Posts: 53
Joined: Aug 2010

Thanks you ! Very similar to mine, two doors less, a cabriolet I assume? I am taking a print out of this and comparing it to the stripe that that I currently have on the car (this picture was taken last year). I must repaint certain panels so thought it best to correct the stripe now if needs be. Mine seems to be slightly different , your opinion much appreciated.

09-26-2018 @ 11:06 PM

reply profile send p.m.

Senior
Posts: 1261
Joined: Nov 2009

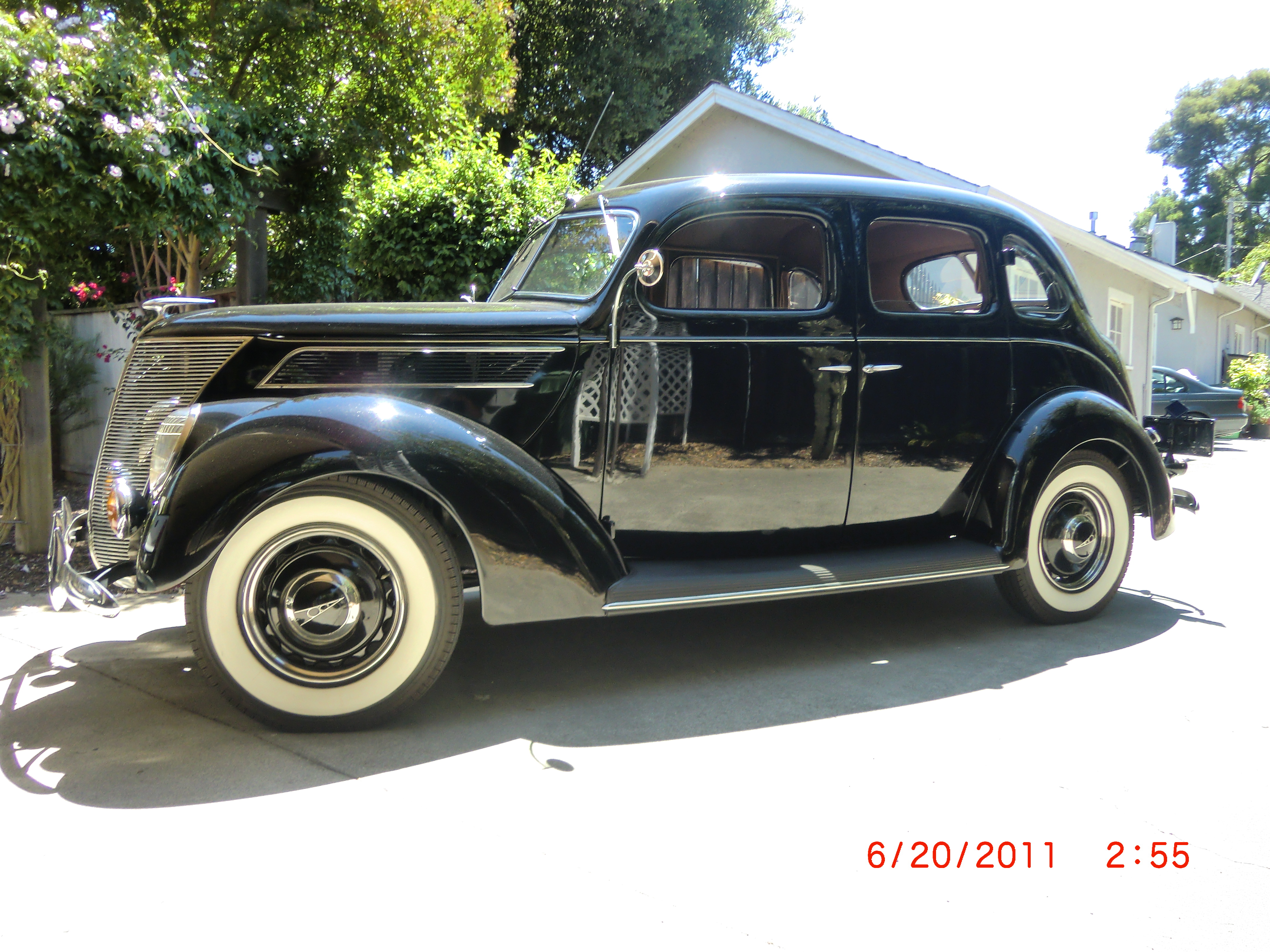

Here's a picture of a Fordor Touring Sedan that may be helpful....

ravi.avalur

09-27-2018 @ 10:48 PM

reply profile send p.m.

Member
Posts: 53
Joined: Aug 2010

The paint shop is part of a specialist car restoration workshop (the best we have here in New Delhi).

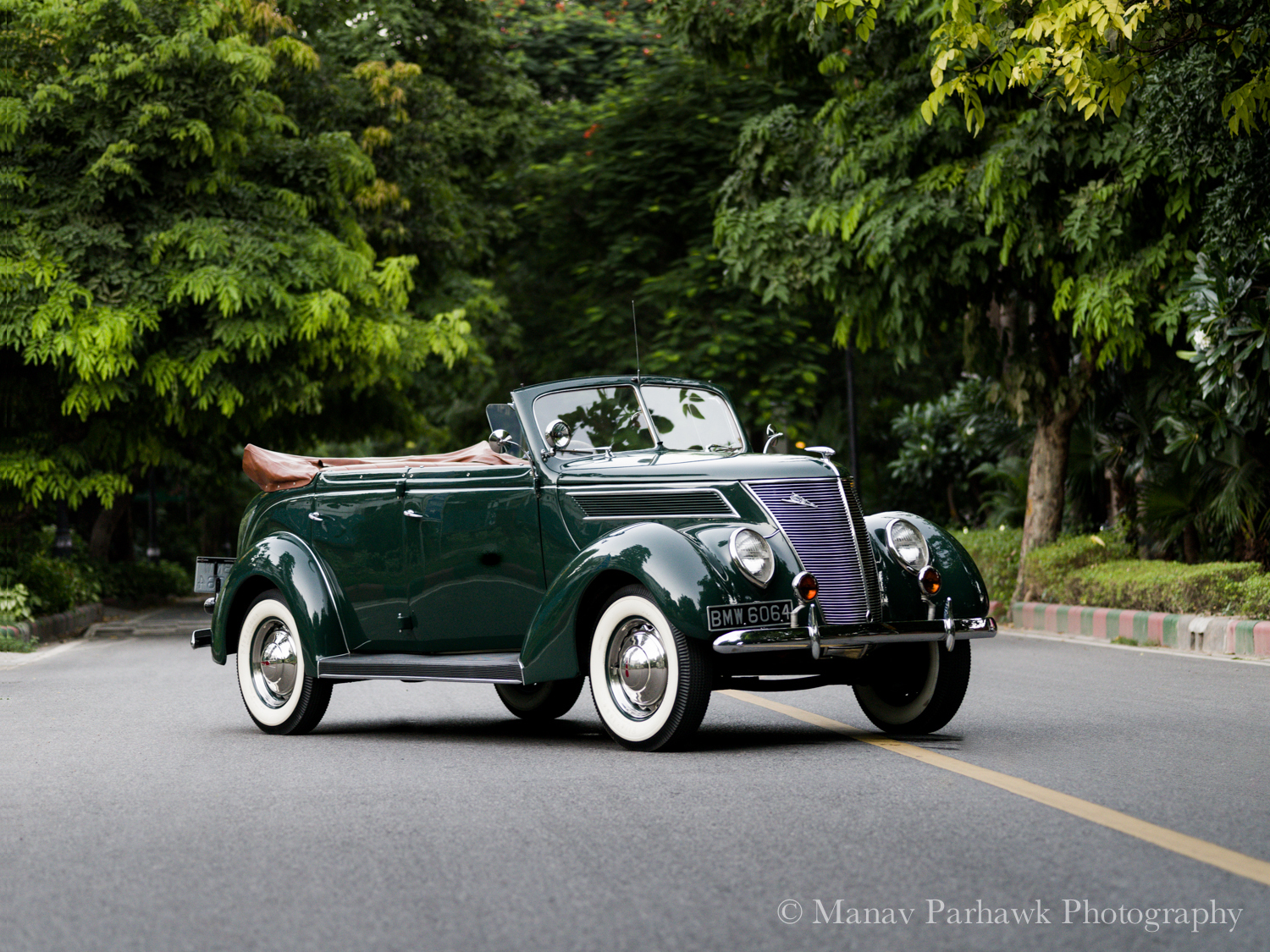

Be that as it may, I am concerned because he hasn't much experience with Ford V8s. Would be very grateful if you could have a look at the stripe on the car in the picture and let me know whether it is correct or , if not, what could be improved. I will have to guide them as they are best facility I have locally.

If that picture isn't clear enough, I have many more.

I am very grateful to you for sharing your expertise. If you ever come out to India, I'd be happy to take you for a drive.
