EFV-8 Club Forum / General Ford Discussion / 42 Fordor front axle bent?

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 42 Fordor front axle bent?

Mtpockets335

01-14-2018 @ 3:55 AM

reply profile send p.m.

Member
Posts: 18
Joined: Aug 2017

Greetings All

I am restoring a 1942 Fordor, and I have a query for all the front end specialists out there.

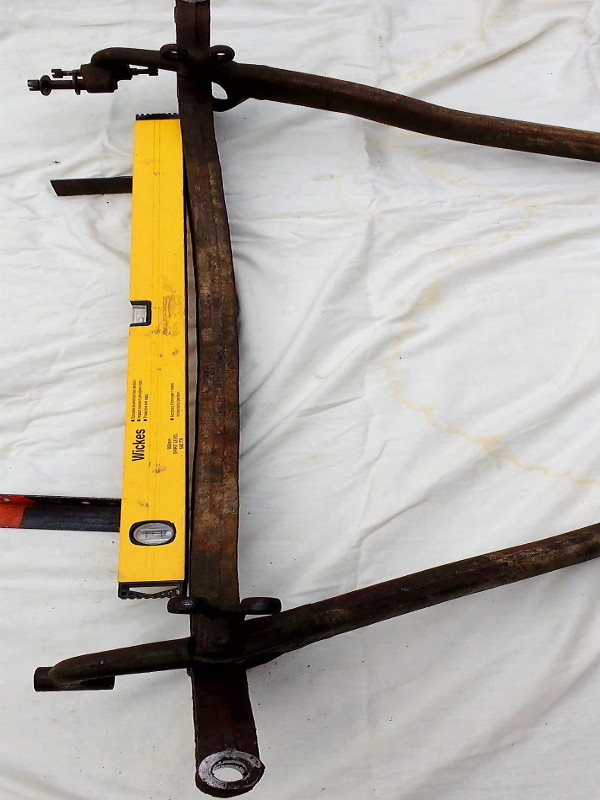

I have pulled the front axle off the car, and have noticed that the beam axle appears bent/bowed rearwards. ( check photo )

I really don't think Henry built them this way - I suspect the beam has taken a few hits in days gone by. However, as this is my first early Ford resto, what do I know!

Many thanks.
MT

Mtpockets335

01-14-2018 @ 3:56 AM

reply profile send p.m.

Member
Posts: 18
Joined: Aug 2017

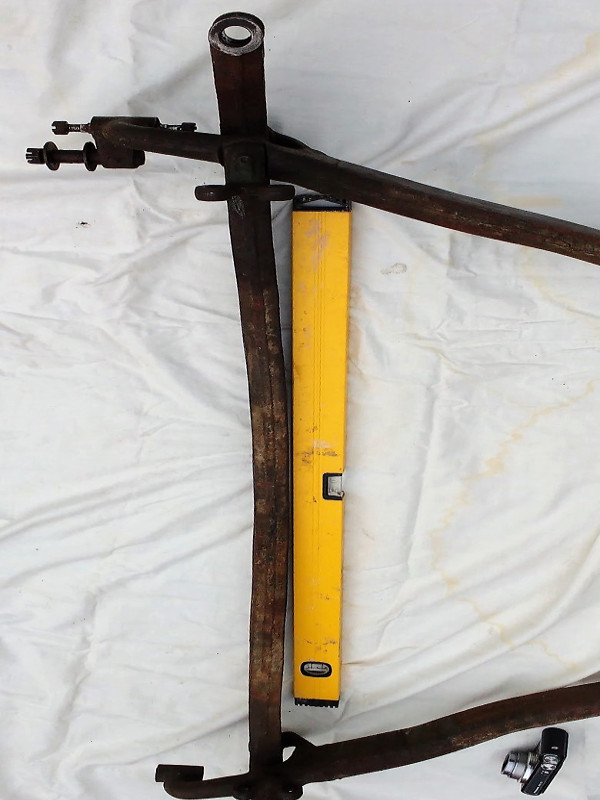

Another photo of the axle

woodiewagon46

01-14-2018 @ 8:06 AM

reply profile send p.m.

Senior
Posts: 704
Joined: Nov 2012

My first suggestion is to try to locate a NOS axle. Your axle can be straightened by a front end shop that does truck work. It is not just taking the bend from the mid section of you axle, but the king pin bosses should also be checked for caster and camber. That axle took a pretty good hit sometime in it's life.

Mtpockets335

01-14-2018 @ 10:34 AM

reply profile send p.m.

Member
Posts: 18
Joined: Aug 2017

Thanks Woodie 46
Truck repair shop is a good suggestion, trucks still use beam front ends with King pins, so those fellas should have the gear.

In the meantime, I will start the search for another axle - that will be a nice sized lump for shipping to Blighty!

TomO

01-15-2018 @ 7:00 AM

reply profile send p.m.

Senior
Posts: 7256
Joined: Oct 2009

The same front axle was used on Fords and Mercurys from 1942 -1948, so you may be able to find a good used one in the UK or on the continent before Brexit. Check with other members of the Club in the UK.

There is one on E-Bay at this time.

https://www.ebay.co.uk/itm/1942-48-FORD-FRONT-AXLE-BEAM-52-1-2-LONG-816/112107923088?hash=item1a1a272690:g:26EAAOSwU-pXtNAN

Tom

Mtpockets335

01-16-2018 @ 12:40 PM

reply profile send p.m.

Member
Posts: 18
Joined: Aug 2017

TomO
Thanks for the eBay link, much appreciated

trjford8

01-16-2018 @ 3:21 PM

reply profile send p.m.

Senior
Posts: 4227
Joined: Oct 2009

Your biggest challenge will be getting the pins out of the wishbone.

Mtpockets335

01-19-2018 @ 11:29 AM

reply profile send p.m.

Member
Posts: 18
Joined: Aug 2017

TrjFord8 - any tips for getting these pins out?

I've tried some initial persuasion with a big hammer, but they are solid!
Would heat and a hydraulic press be the best bet?
