12 volt conversion of 1951 Ford Overdrive
-- page:
1
2
|
|
TomO |
04-07-2017 @ 7:26 AM
|
|
|
Senior
Posts: 7264
Joined: Oct 2009
|
DJ, A 12 volt relay will not work on 6 volts. Buy a 6 volt relay and make sure that it makes good contact with the firewall for grounding purposes.
Tom
|
Drbrown |
04-06-2017 @ 8:47 PM
|
|
|
Senior
Posts: 578
Joined: Nov 2013
|
DJ : My '47 was converted to 12 volt and its Borg-Warner OD uses a standard 3-wire Bosch 12 v 30 amp relay; pretty similar to most over-the-counter relays. OD Parts ? Advice ? Lloyd E. Young in Winchester Ohio (land line 614-837-7832).
|
DJ |
04-06-2017 @ 8:12 PM
|
|
|
Member
Posts: 50
Joined: Mar 2017
|

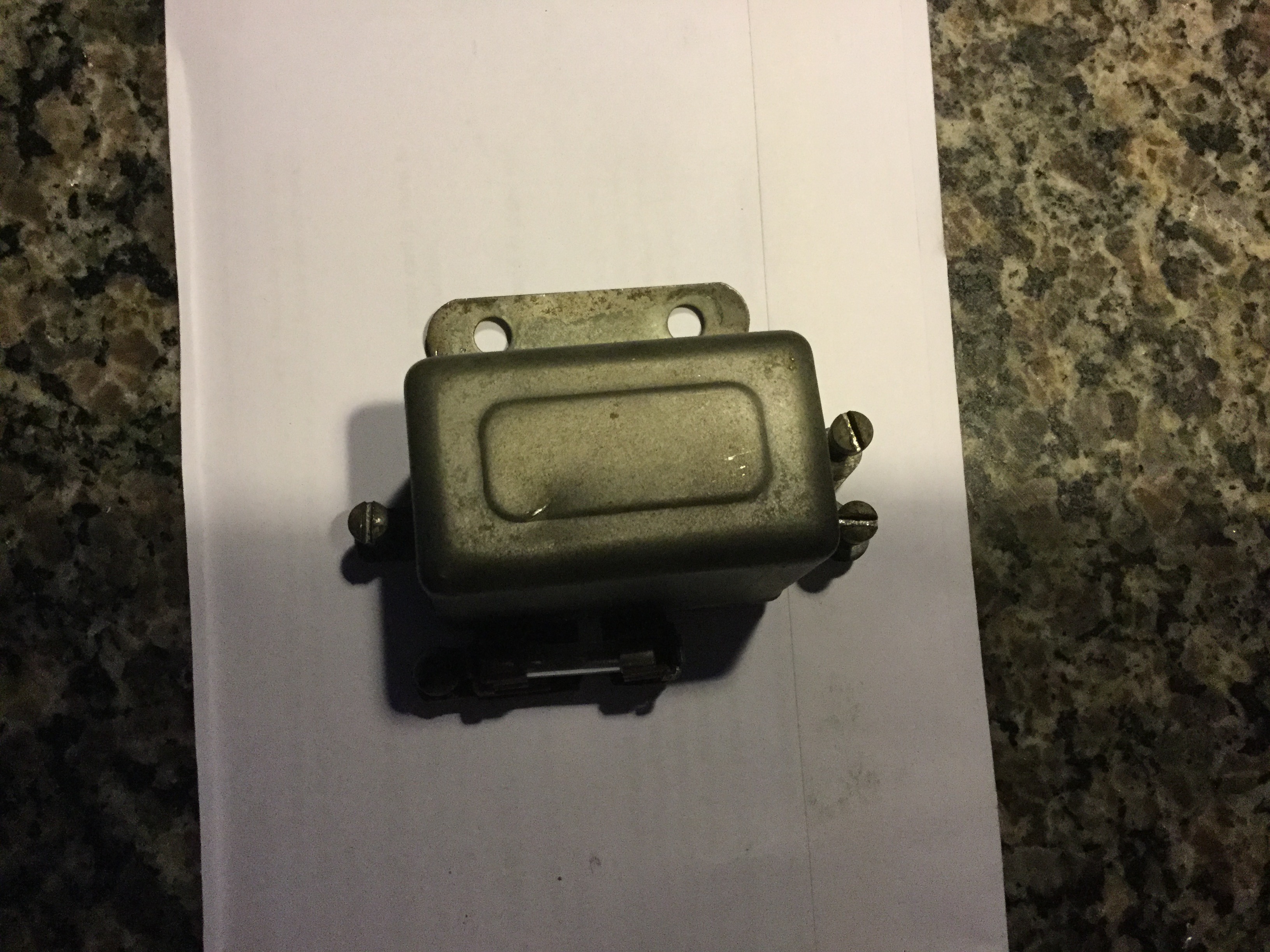

I have a 51 Ford Custom, 8 cal Flathead. Stock 6 volt. Pictured below is the overdrive relay. I believe this is a 12 volt relay. My overdrive is not working. Will the 12 volt relay work on the 6 volt system? If so, how do I wire? The 12 volt has 4 wire connecting locations vs 3 on 6 volt system. Ty
|
supereal |
01-22-2017 @ 12:28 PM
|
|
|
Senior
Posts: 6819
Joined: Oct 2009
|
In addition to the relay on the firewall and the governor, there are two sets inside the cap of the solenoid. One set allows the relay to pull. the other is a "holding" set that keeps the solenoid activated until the governor or the relay turns it off. I would suspect one or both points are burned, or the windings in the solenoid have opened with the doubling of the voltage. When you double the voltage from 6 to 12 the current in the solenoid is reduced by half, which may not be enough to pull it. The polarity change should't affect the operation.
|
Drbrown |
01-21-2017 @ 9:50 PM
|
|
|
Senior
Posts: 578
Joined: Nov 2013
|
Hrussell8750 .... PS .... if trying to find or download the Borg-Warner overdrive manuals, PM me and I'll email them to you as attachments.
|
Hrussell8750 |
01-21-2017 @ 9:07 AM
|
|
|
Member
Posts: 31
Joined: Jun 2016
|
Thank you I will give them a try.
Thank You, Harry Russell
|
Drbrown |
01-17-2017 @ 6:12 AM
|
|
|
Senior
Posts: 578
Joined: Nov 2013
|
Google for Borg-Warner Overdrives and download their design, repair and operation manuals. . Most overdrives copied BW designs. Lots of good info in them. The repair manual has a specific testing procedure for finding problems. Your overdrive must currently have a 6 volt relay. My 12 volt relay is mounted on the engine compartment firewall along with a 30 amp fuse. I recommend starting by changing the relay to a 12 volt. They are relatively inexpensive and available at most auto parts stores i.e. NAPA etc. Bosch brand are generally good. Keep the larger gauge wiring. The solenoids initially draw a lot of current. Also, be sure the casing of the OD is well-grounded to the body/frame.
This message was edited by Drbrown on 1-17-17 @ 6:57 PM
|
carcrazy |
01-15-2017 @ 11:07 AM
|
|
|
Senior
Posts: 1682
Joined: Oct 2009
|
One overdrive parts source is Randy Rundle at Fifth Avenue Antique Auto Parts in Kansas. His website is: fifthaveinternetgarage.com He will have most, if not all, of the parts you will need. He is a friendly guy that knows a lot about overdrives.
|
Hrussell8750 |
01-15-2017 @ 8:46 AM
|
|
|
Member
Posts: 31
Joined: Jun 2016
|
Thanks for the information, I'm having a hard time finding wire diagram for this 12 volt change over.
Thank You, Harry Russell
|
Hrussell8750 |
01-15-2017 @ 8:44 AM
|
|
|
Member
Posts: 31
Joined: Jun 2016
|
Thank you for the heads up I will check it out. It's a place to start .
Thank You, Harry Russell
|
