Ignition help, please...
-- page:
1
2
3
|
|
40 Coupe |
06-11-2024 @ 4:27 AM
|
|
|
Senior
Posts: 1673
Joined: Oct 2009
|
Mark the timing marks and return them to the same location when done replacing the rotor. Also suggest adding a wrap or two of electrical tape, on the rotor shaft, under the rotor before installing new. Ford does have a Spec. for the gap between rotor and cap contacts 0.0125"
|
sarahcecelia |
06-09-2024 @ 9:39 AM
|
|
|
Senior
Posts: 1182
Joined: Mar 2013
|
The easy is test is to Swap it out with a plug wire near so it is long enough to reach that plug; and see f you get spark with it! If you do; the wire has something that I hereby explain wrong with it!! You could also test it with a test light; one end with power to it and test light on the other end; if the test light lights up the wire is good; if not then the problem is something wrong w/the distributor cap; or the wire! Corrosion on that contact? Dirty contact on the wire end; or ends. are they clean and shiny??A little 400 sand paper will fix that! Alll contacts must be clean!!
Regards, Steve Lee
|
37RAGTOPMAN |
06-07-2024 @ 6:59 AM
|
|
|
Senior
Posts: 1958
Joined: Oct 2009
|
hi glad you found the problem with running rich, who ever rebuilt that distributer, was at falt using the ROTOR for sure, the contact is all burnt up, must have a lot of arcing, who did that work ??? would be interesting, Skip Haney would never send that out of his shop, you should be able to change the rotor with out setting the points, you will have to remove the snap ring on the back of dist then pull the shaft out the rotor then can be removed, if you have old distributer use it as a learning to take apart first, my 2 cents 37Ragtopman, Maine
|
carcrazy |
06-06-2024 @ 1:15 PM
|
|
|
Senior
Posts: 1650
Joined: Oct 2009
|
The rotor and the inner distributor caps are available from C&G. As for the quality of the parts, you would have to ask them what the source is for their parts. You may be able to install the rotor yourself but it would be best to have an experienced distributor rebuilder do it to set up the distributor properly and verify its operation on a machine. https://cgfordparts.com/catalogsearch/result/?q=distributor%20rotor&finder%5B1%5D=4776&finder%5B2%5D=4874&finder%5B3%5D=5058&find=find
|
682bear |
06-06-2024 @ 12:29 PM
|
|
|
Member
Posts: 27
Joined: May 2023
|
So... are the new inner caps and rotors (such as the ones that 3rd gen sells) decent quality replacements, or are they 'maybe useable' items like a lot of new parts they sell these days? Also, can the rotor be replaced without messing with the timing and point settings? Or is this something I need to have a distributor rebuilder do? Thanks for all the help! -Bear
|
682bear |
06-06-2024 @ 12:18 PM
|
|
|
Member
Posts: 27
Joined: May 2023
|
Also... since I managed to get the car running smoothly... I hooked up my vacuum guage and adjusted the idle screws. I'm now getting a very smooth vacuum that is between 19.5 and 20... -Dave
|
carcrazy |
06-06-2024 @ 12:14 PM
|
|
|
Senior
Posts: 1650
Joined: Oct 2009
|
Yes! You have found the problem. From all that you had described prior to you last post, it became apparent that the problem had to be either your rotor or the inner cap on the left side of the distributor. If you continue to have ignition problems, my advice would be to install a new rotor and new inner distributor caps to fix the issues for good.
|
682bear |
06-06-2024 @ 12:05 PM
|
|
|
Member
Posts: 27
Joined: May 2023
|

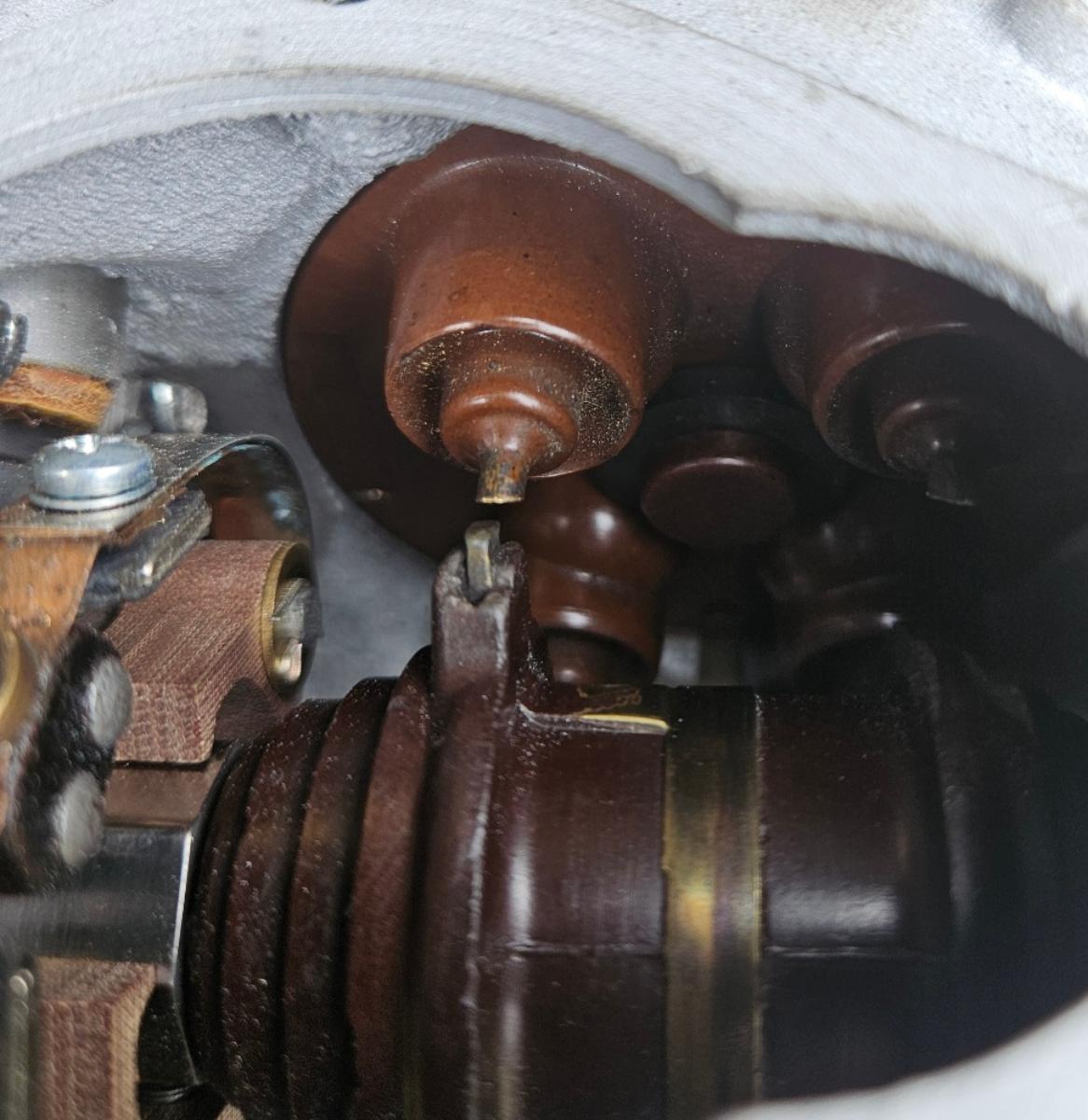

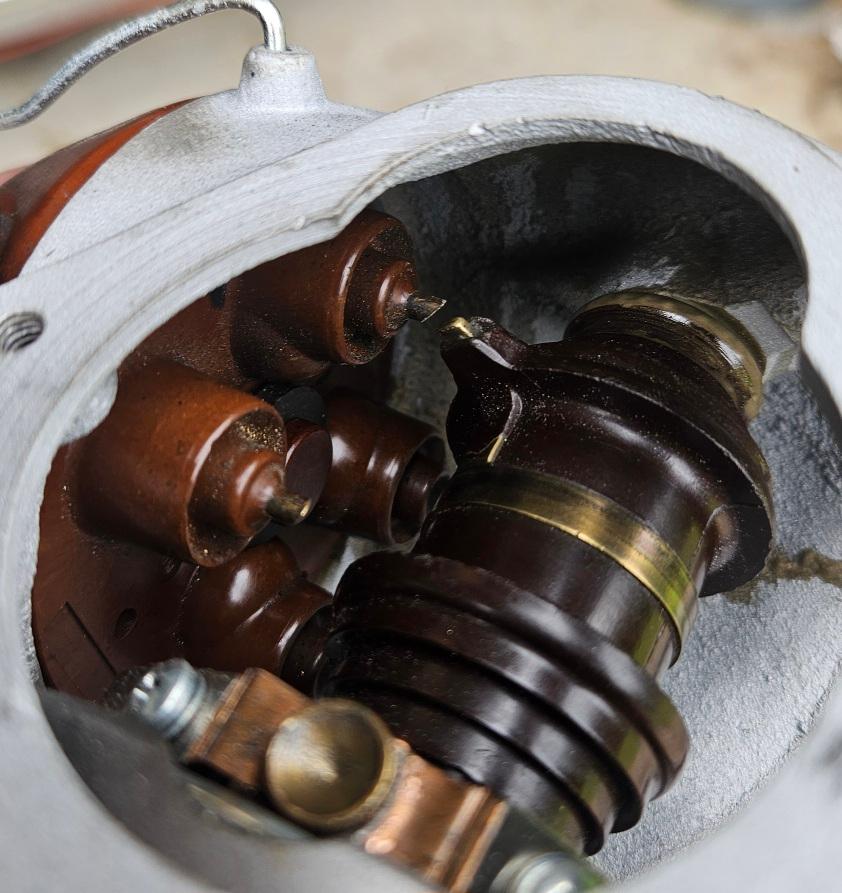

Ok... I swapped the old distributor and condenser back in... The car cranks and runs very good... so, to determine whether the distributor or condenser is causing the problem, I then swapped the new condenser back in... It still runs good... so the newly rebuilt distributor is the issue... While I had the plug wire/ cap assemblies out to swap the distributors, I looked at the gap between the rotor and the inner cap contacts. There is a significant gap there... much bigger than what I think it should be... (pictures below). The gaps between the rotor and contacts are smaller in the old distributor... maybe 2/3s that wide... could that be the problem? I guess I'll try to contact the company that rebuilt the distributor and see what they say about it... The old distributor still works good, but the points are nearing the end of their useable life. I'll need to have a rebuilt distributor at some point... one that works. -Dave
This message was edited by 682bear on 6-6-24 @ 12:20 PM
|
682bear |
06-06-2024 @ 9:14 AM
|
|
|
Member
Posts: 27
Joined: May 2023
|
Yes... just double checked how the caps fit... they are good... -Dave
This message was edited by 682bear on 6-6-24 @ 12:19 PM
|
40 Coupe |
06-06-2024 @ 5:26 AM
|
|
|
Senior
Posts: 1673
Joined: Oct 2009
|
Not a condenser issue, condenser will effect all cylinders. Make sure the inner distributor caps are seated correctly into the distributor housings, all of the perimeter of the cap should fit into the casting.
|
