Discussion Topic: Firewall Hole -- page: 1 2

coupeman

04-19-2016 @ 11:05 AM

reply profile send p.m.

Member
Posts: 62
Joined: Oct 2009

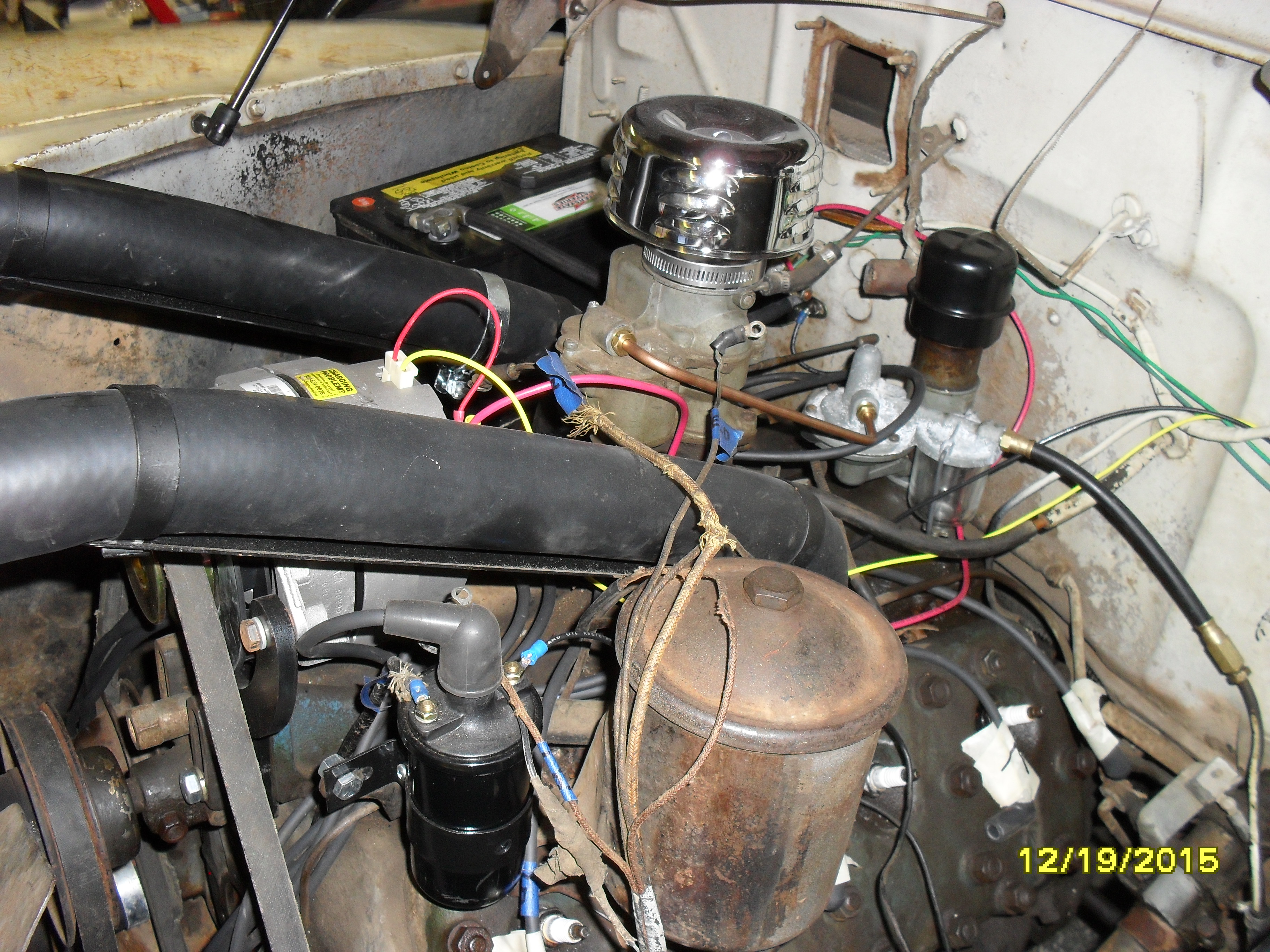

My 48 coupe has a hole in the firewall that I can't find a purpose for, its about one inch diameter above the accelerator assy. I have attached a photo maybe someone can identify its use.

Old Henry

04-19-2016 @ 1:11 PM

reply profile send p.m.

Senior
Posts: 738
Joined: Apr 2010

From its proximity to the other hole down and to the left of it, and its size, I would say a hot water heater tube hole and the other one the other hole. My only hesitation is that those holes are usually more to the passenger side of the firewall. Why anyone opened it up when the heater tubes are obviously already through the firewall to the left is a mystery.

This message was edited by Old Henry on 4-19-16 @ 1:12 PM

coupeman

04-19-2016 @ 4:23 PM

reply profile send p.m.

Member
Posts: 62
Joined: Oct 2009

Thanks for the input, that was my first guess, I will plug it for now to keep water out.

woodiewagon46

04-20-2016 @ 11:11 AM

reply profile send p.m.

Senior
Posts: 704
Joined: Nov 2012

I just looked at my '46 and one of my heater pipes comes thru where you are indicating. What I don't understand is that what looks like heater pipes of some sort are shown in your picture. What are they?

woodiewagon46

04-20-2016 @ 11:16 AM

reply profile send p.m.

Senior
Posts: 704
Joined: Nov 2012

Coupeman, let me clarify something. The heater pipe in my car comes thru the hole that is still blanked off in your picture, not the open one. There is another hole towards the passenger side for the other pipe.

coupeman

04-20-2016 @ 11:14 PM

reply profile send p.m.

Member
Posts: 62
Joined: Oct 2009

I have a fresh air heater system in my car and those pipes to the left in the photo coming out of the firewall are for that system, maybe the hole was unplug by the previous owner for some unknown application, thanks guys for the feedback.

Ritzy1

04-21-2016 @ 5:19 AM

reply profile send p.m.

Member
Posts: 46
Joined: Sep 2014

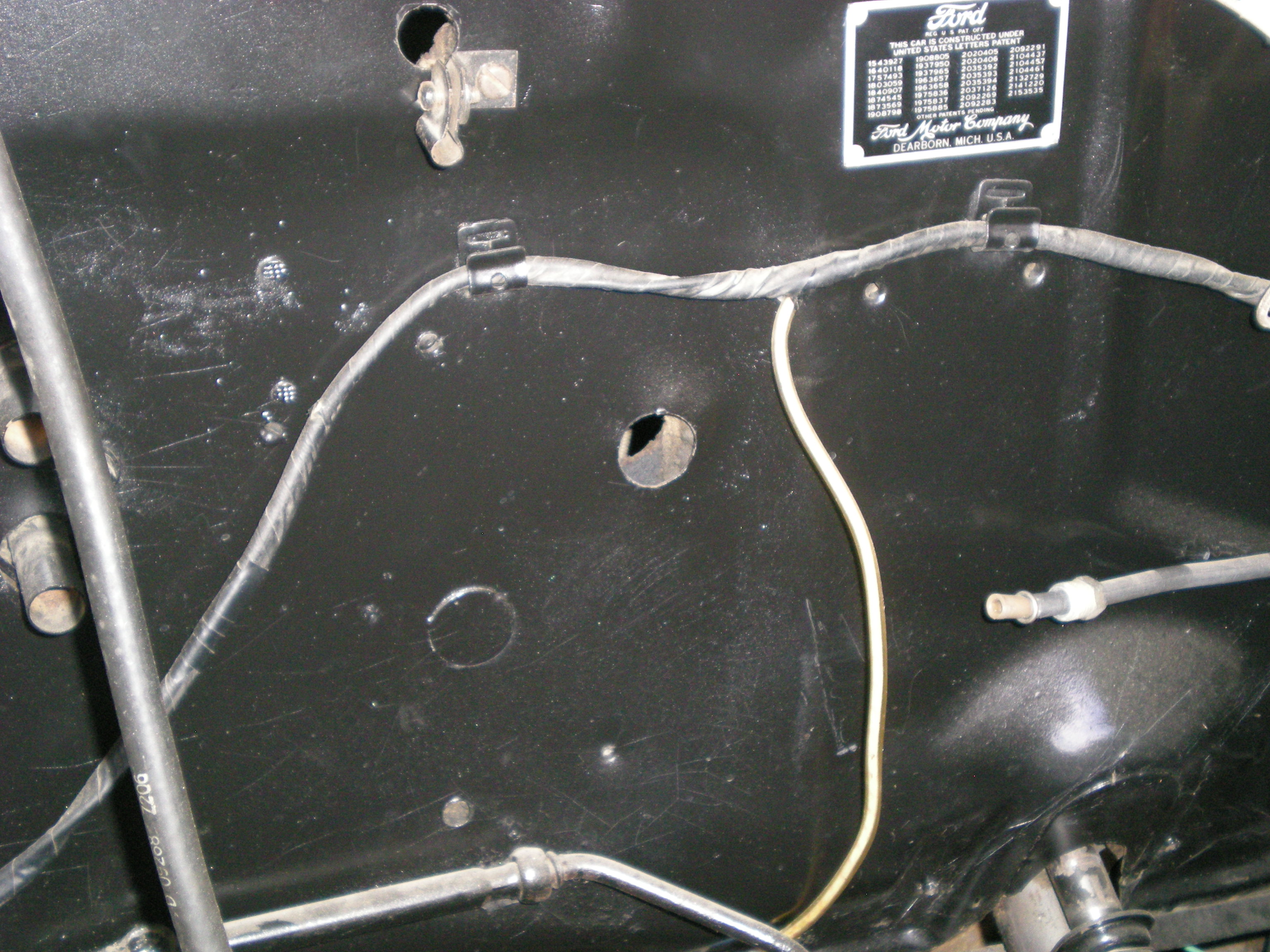

I think it's where either the hand throttle or choke cable went through the firewall. Here's a picture of my firewall showing a cable coming through that hole.

len47merc

04-21-2016 @ 7:12 AM

reply profile send p.m.

Senior
Posts: 1165
Joined: Oct 2013

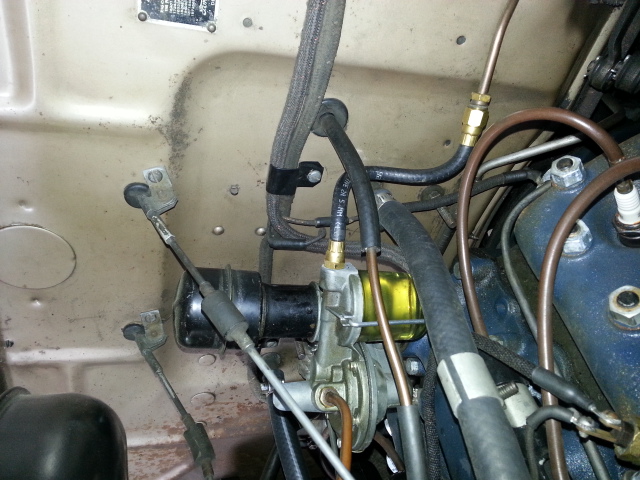

Here's a pic of my '47's firewall which should be darned close to your '48 - looks to me like those holes are for the throttle control cable and the windshield wiper vacuum hose.

Steve

coupeman

04-21-2016 @ 11:49 AM

reply profile send p.m.

Member
Posts: 62
Joined: Oct 2009

End of mystery its for the wiper vacuum line, Thanks everyone for your inputs

Ritzy1

04-21-2016 @ 7:02 PM

reply profile send p.m.

Member
Posts: 46
Joined: Sep 2014

Yup. I was looking at the wrong hole.
