EFV-8 Club Forum / General Ford Discussion / 48 heater

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 48 heater -- page: 1 2

Darrell S Johnson

04-15-2018 @ 12:16 PM

reply profile send p.m.

Member
Posts: 7
Joined: Oct 2015

I have asked about this on the Ford barn but as yet no answers.

I am in the process of rewiring the 48 and have under the dash done except for the heater. This heater has a round knob controlling heat and defrost wired to the motor. Next to it is the pull handle which operates the damper for heat and defrost. These two controls are on a small panel located to the right of the steering column. On the left side of the steering column are two switches that have "heat" labeled on them.

I have no wiring diagram for this setup as it was cobbled and not working when I got the car. I would appreciate help with this wiring if anyone has a similar setup or a wiring diagram.

cliftford

04-15-2018 @ 7:34 PM

reply profile send p.m.

Senior
Posts: 845
Joined: Jan 2014

Check with old Henry. He should have the diagram you need.

TomO

04-16-2018 @ 7:09 AM

reply profile send p.m.

Senior
Posts: 7264
Joined: Oct 2009

Could you post some photos? You can only post one photo per reply, but you can make multiple replies.

The heater controls on the right side of the steering wheel sound correct for a 48 Ford hot water heater with the fresh air option. I have no idea about the controls on the left side of the steering wheel.

Tom

Darrell S Johnson

04-16-2018 @ 11:48 AM

reply profile send p.m.

Member
Posts: 7
Joined: Oct 2015

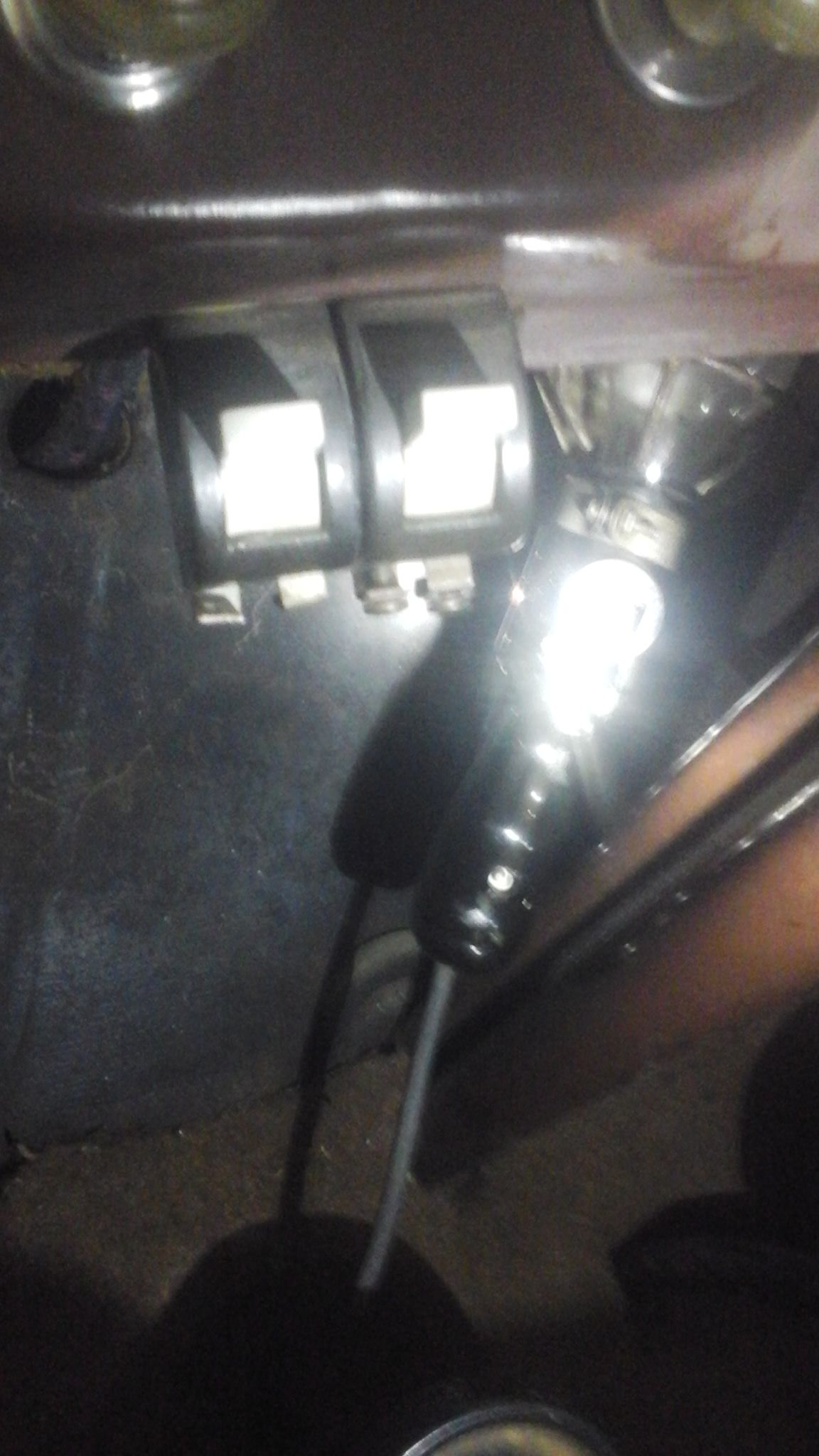

Sorry about the quality of the picture. I was trying to hold a light and the tablet to get photo. Anyway both of the switches say"heat" on the light part. I could remove them for better pictures if needed.

fla48

04-16-2018 @ 5:56 PM

reply profile send p.m.

New Member
Posts: 128
Joined: Nov 2011

These switches are not standard for your 48. Probably added by a previous owner. See Tom’s reply.

Drbrown

04-16-2018 @ 9:31 PM

reply profile send p.m.

Senior
Posts: 578
Joined: Nov 2013

Those switches on the left look like modern "flip" switches. Are they labeled with words indicating "heater" ? They could have been used for fog lights, overdrive, electric fuel pump or other add-on.

Darrell S Johnson

04-17-2018 @ 5:54 AM

reply profile send p.m.

Member
Posts: 7
Joined: Oct 2015

Yes, they do say heat on each one. They were wired to the heater but disconnected. The wiring was obviously added and there was other wiring that went nowhere besides this. I will remove them. Where should power to the heater control come from? Would it be alright to use the wire that powers the cigarette lighter as I won't be using that anyway and it is right there.

TomO

04-17-2018 @ 6:30 AM

reply profile send p.m.

Senior
Posts: 7264
Joined: Oct 2009

The wire that feeds the lighter is hot all of the time, the heater switch should be fed by a wire that is only hot when the ignition switch is active.

I am not familiar with the 48 ignition switch, but it should have an "ACCY" post and the heater switch hot lead should come from there or from the Coil terminal.

Tom

Drbrown

04-17-2018 @ 7:54 AM

reply profile send p.m.

Senior
Posts: 578
Joined: Nov 2013

To add to Tomo's post, the wire feeding the heater should have a fuse in it because as noted, the ignition switch always hot. Could be an in-line fuse. i use a 20 amp for my heater.

Also, my heater was connected directly to the ignition switch and the feed wire to the ignition switch overheated and melted its insulation - all due to too many non-stock extras added to it by prior owner ..... i.e. directionals, elec wiper motor, elec fuel pump, radio, etc. So I installed a relay and small fuse board to handle every thing connected to the ignition switch and so the ignition switch turns all that "stuff" on and off.

This message was edited by Drbrown on 4-17-18 @ 7:56 AM

supereal

04-18-2018 @ 2:10 PM

reply profile send p.m.

Senior
Posts: 6819
Joined: Oct 2009

Here is the wiring diagram for the ford heater. Although it says "For 39-40 Ford, the connections are the same for your 48, as is the color coding.
