EFV-8 Club Forum / General Ford Discussion / 1947 "early facelift" tough question

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 1947 "early facelift" tough question -- page: 1 2

randyjohnson1

07-08-2017 @ 8:19 AM

reply profile send p.m.

Member
Posts: 17
Joined: May 2017

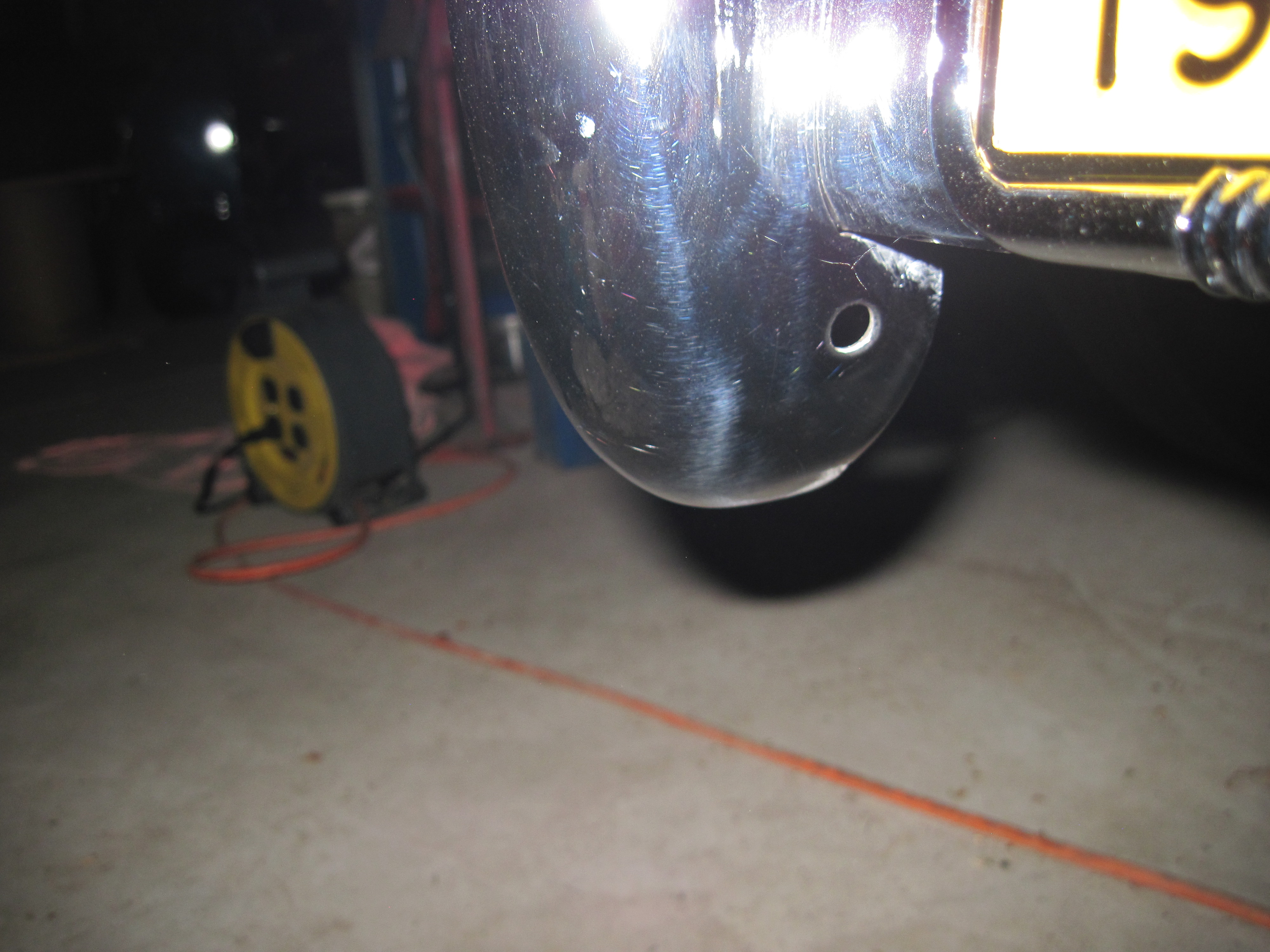

My 47 is the early facelift version - I've also heard called the bullnose version. In the 1941-48 Ford Book for restoring, there a series of running changes with their dates of change in appendix D (pages D-3 and D-4. My car has all of the changes listed up to "friction vent window latch" (3/24/47) Here's the question... It has the holes in the front bumper guards for the bracket which was listed as a 4/01/47 deletion. The holes for mounting the bracket are there, but the bracket is long gone. I have seen original advertisements (drawings) that show my car's configuration, no hood ornament, with the new for 47 bumper guards and the bracket that goes between the guards underneath the license plate. I have never seen one in person or for sale. I believe my car is supposed to have one since the mounting holes are there. I tried using a 1946 bracket, but the length is wrong because the bumper guards on the 46 are narrower and therefore the bracket is too long. Does anyone have any info on this bracket that I could use to make or find one? Was there a part number? It appears that they were only used for the period roughly from 3/24/47 thru 4/1/47. I attached a picture of one of the holes.

supereal

07-08-2017 @ 1:42 PM

reply profile send p.m.

Senior
Posts: 6819
Joined: Oct 2009

I suspect you may have a station wagon bumper, or a '41 type, as the spacing of the bumper guards is wider than other models. If you have the Club's 41-48 book, you will find information on bumpers and part numbers. I have a late year '47, and there was a front guard when I got it, It fastened behind he guards. I suspect it was some kind of after market guard, perhaps dealer installed. Ford was famous for "running changes" without notice, and after WWII the demand for new cars was very high, and the factory used anything on hand to keep the line rolling. The 41-48 book is a treasure chest of these facts.

randyjohnson1

07-10-2017 @ 6:34 PM

reply profile send p.m.

Member
Posts: 17
Joined: May 2017

Thanks. The references I made were from the book you mentioned. I do have the correct bumper. The bracket or bar I'm asking about spans across the bottom between the bumper guards, like a 46. Anytime you see an ad from early 47 with no hood ornament, the bar is shown. My car has no hood ornament and holes in the bumper guards, I'm just missing the part that spans across the bottom between the two bumper guards.

randyjohnson1

07-10-2017 @ 6:36 PM

reply profile send p.m.

Member
Posts: 17
Joined: May 2017

Here's one of the ads.

07-10-2017 @ 9:41 PM

reply profile send p.m.

Senior
Posts: 1254
Joined: Nov 2009

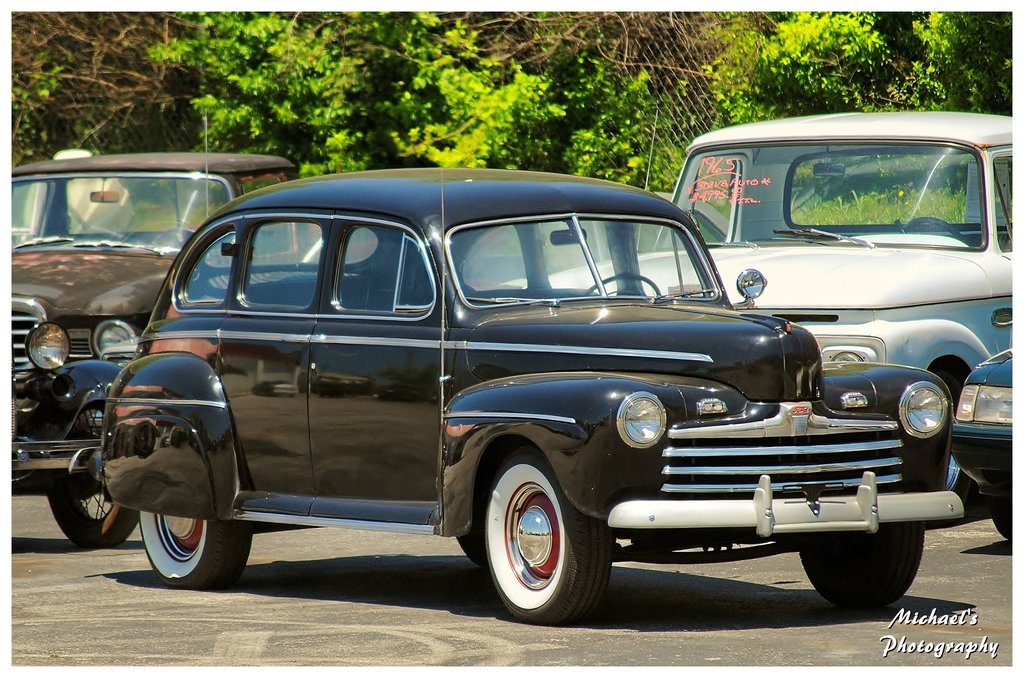

See attached picture

07-10-2017 @ 9:42 PM

reply profile send p.m.

Senior
Posts: 1254
Joined: Nov 2009

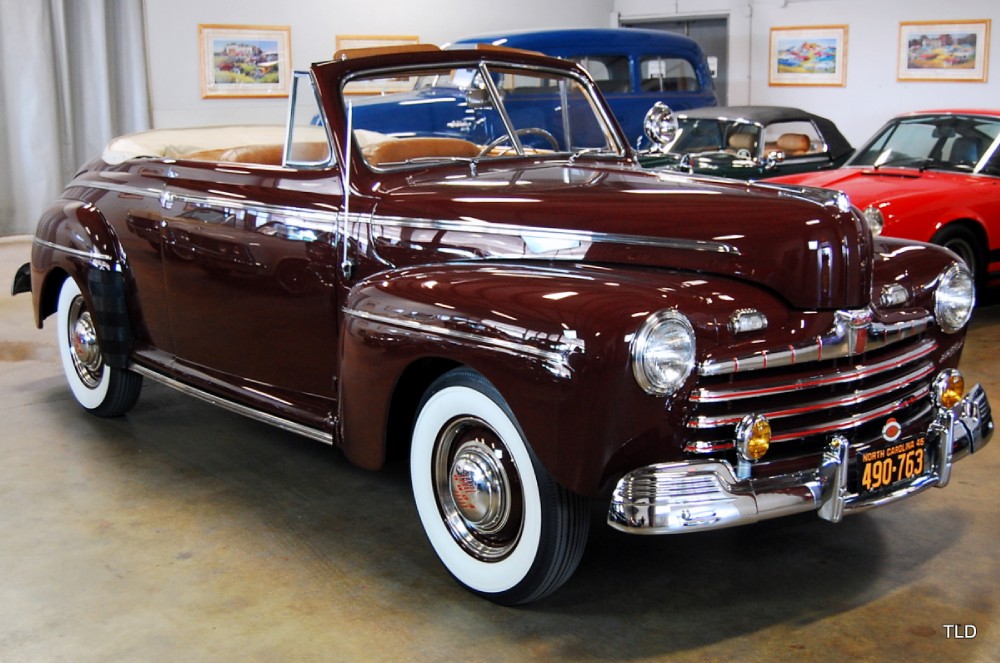

Another....

07-10-2017 @ 9:42 PM

reply profile send p.m.

Senior
Posts: 1254
Joined: Nov 2009

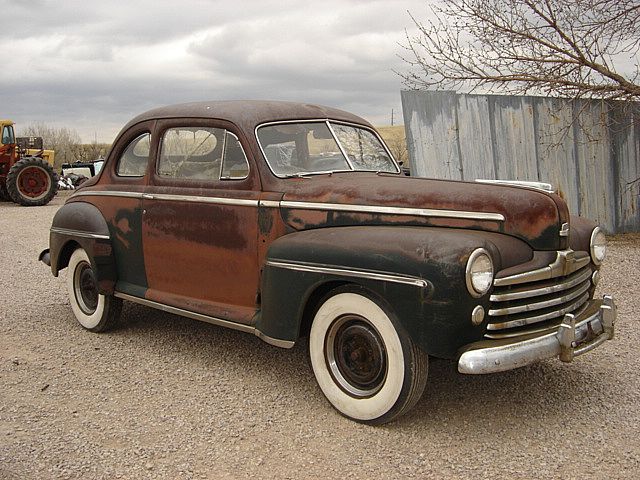

and, another....

supereal

07-11-2017 @ 12:30 PM

reply profile send p.m.

Senior
Posts: 6819
Joined: Oct 2009

I consulted the book "Famous Ford V8s" by the late Lorin Sorensen. It shows the front bumper bar as early as 1942. It was still present on the early '46 models, but disappeared early in '47, and not shown on any cars thereafter Photos of the assembly line shows no bars after April 1947, and a full page shot of the "new" Sportsman convertible is minus the bumper bars.

randyjohnson1

07-11-2017 @ 5:30 PM

reply profile send p.m.

Member
Posts: 17
Joined: May 2017

Does the Sportsman have a hood ornament? In the ad I attached on my previous post, it shows the newer bumper guards with the bar (and no hood ornament). Since the bar was dropped shortly after the bumper guards were updated, but not at the same time, and since my front bumper guards have the holes, I believe it is reasonable to believe that there was a small number of early facelift fords made as the ad depicts. Maybe I'll never know for sure, but I'll tell you that the holes look "factory", not drilled. Why would my car have the holes where the bar would have been? Maybe the bumper guards were manufactured with the holes, but then the bars were never introduced into production because plans changed. I believe these bumper guards are interesting evidence to consider for the 47 facelift enthusiast.

len47merc

07-11-2017 @ 6:02 PM

reply profile send p.m.

Senior
Posts: 1165
Joined: Oct 2013

Does your car have the original window glass in it? Or at least one of the side windows? If so, what month do the 'bugs' on your glass indicate your car was built? Just another bit of data that may help you sleuth this one out. Fwiw

Steve
