EFV-8 Club Forum / General Ford Discussion / 37 brake spring colors are wrong

Reply to Discussion | New Discussion

<< previous || next >>

Posted By

Discussion Topic: 37 brake spring colors are wrong -- page: 1 2

1937sedandelivery

05-13-2017 @ 12:45 PM

reply profile send p.m.

Senior
Posts: 501
Joined: Jul 2014

Hello,
I feel like I am beating a dead horse, but things still don't jive.
I am restoring my 37 to original mechanical brakes. I have exchanged mails and talked to several folks but remain confused and need help, please.

Apparently the Green Book is incorrect, but the V8 37 Ford book is incorrect also.

The two smaller springs, 78-2296 and 78-2034 are red and black, respectively. This looks to be consistent with everyone, no issue there.

However, the confusion lies with the two larger springs, 78-2297 and 78-2035. I recently purchased a set of NOS 78-2297-B springs and they are orange. I believed these to be correct until I looked in the V8 Ford book, page 4-18, and firstly, the part number is shown as 78-2097 (should be 78-2297 right?) and secondly it is green. I believe both of these to be wrong, but heck, I just don't know.

Can someone please clarify the details associated with the orange and green springs? I would love to see consensus from multiple folks before I finish assembling the brakes.

Thank you very much,
Gregg

05-13-2017 @ 1:12 PM

reply profile send p.m.

Senior
Posts: 1262
Joined: Nov 2009

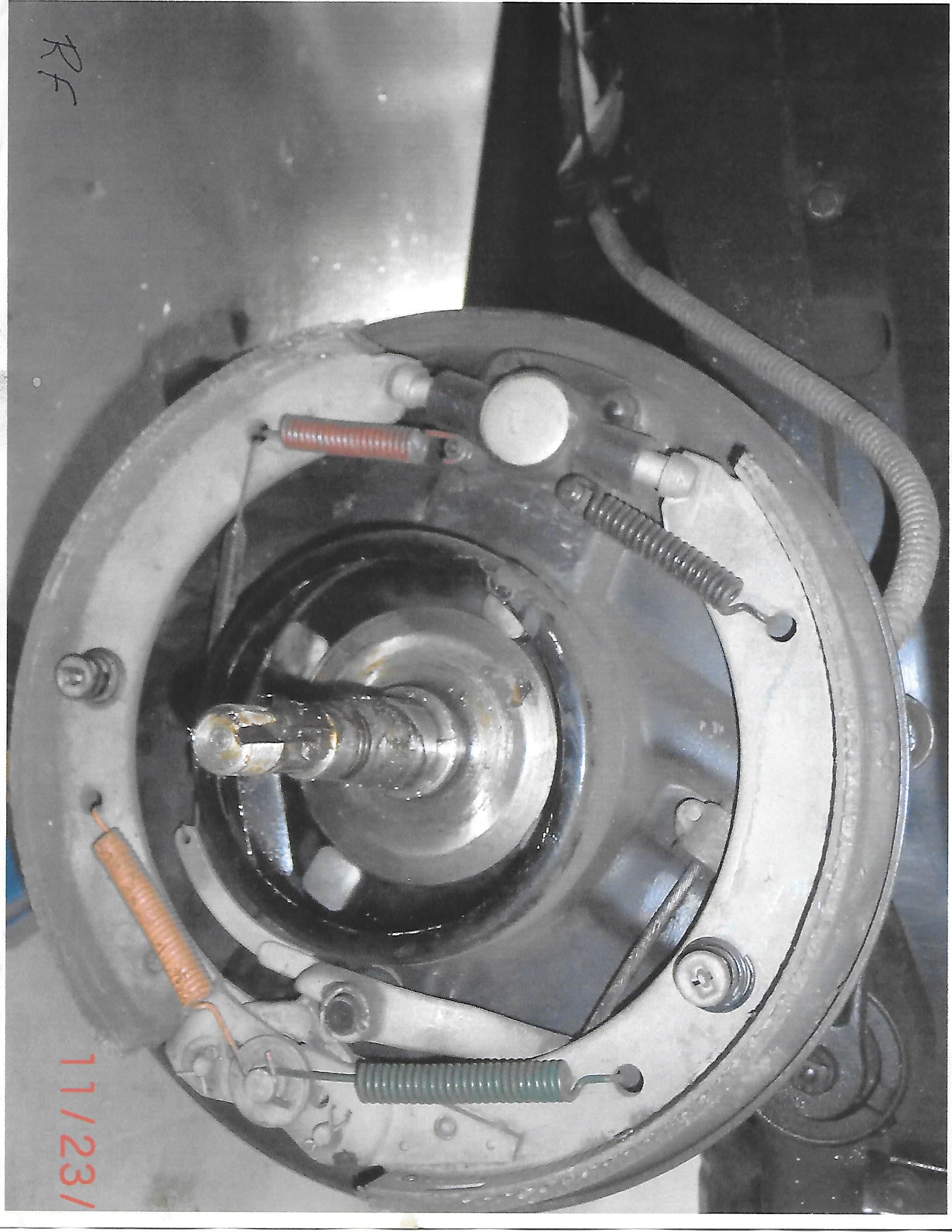

Right Front

05-13-2017 @ 1:14 PM

reply profile send p.m.

Senior
Posts: 1262
Joined: Nov 2009

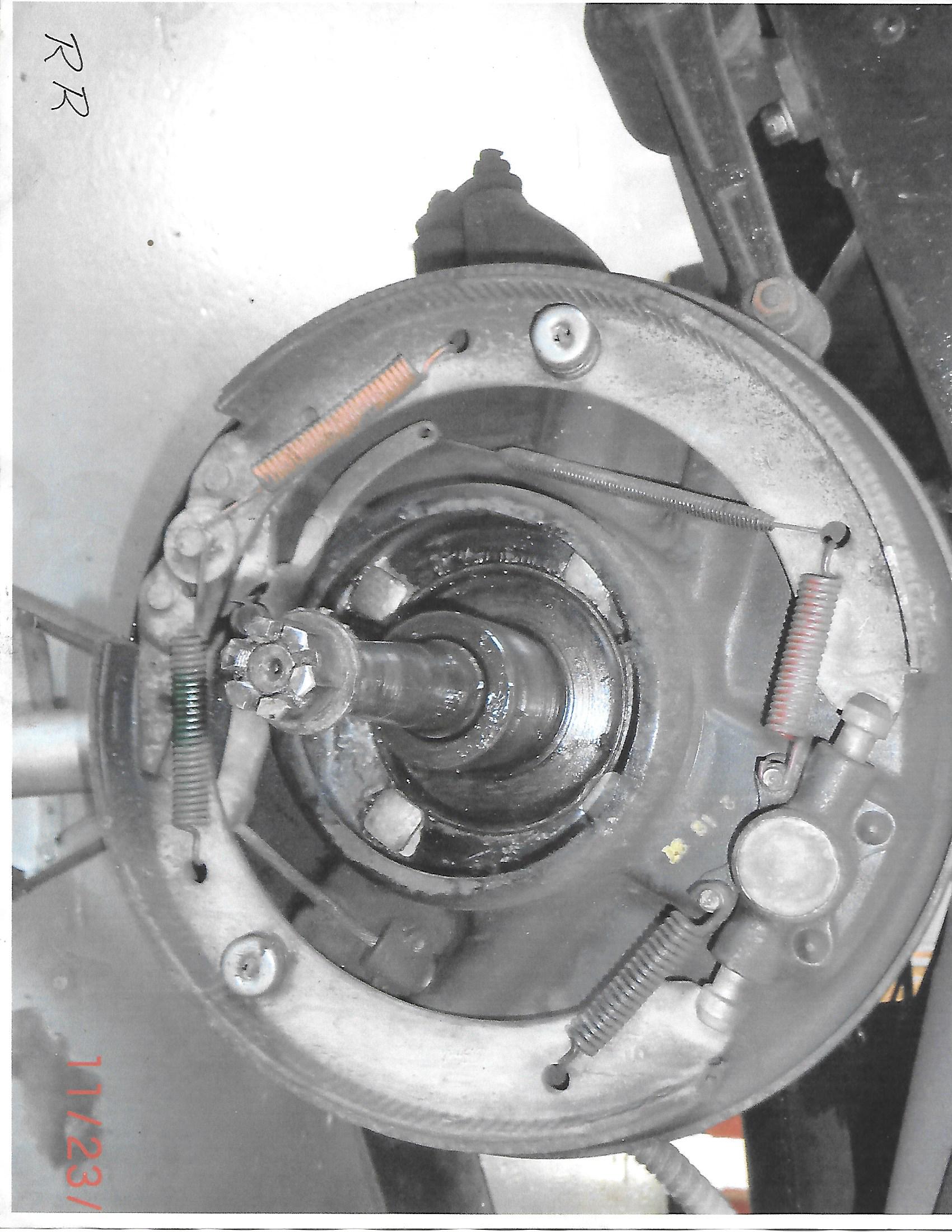

Right Rear

05-13-2017 @ 1:41 PM

reply profile send p.m.

Senior
Posts: 1262
Joined: Nov 2009

Be sure to install the shoes and springs correctly. The secondary shoe is always the shoe closest to the brake cable, both front and rear. The primary shoe springs are orange and red. The secondary shoe springs are green and black....

1937sedandelivery

05-13-2017 @ 3:13 PM

reply profile send p.m.

Senior
Posts: 501
Joined: Jul 2014

Thanks MG.
Can you tell me what the corresponding part numbers are?
Gregg

05-13-2017 @ 4:24 PM

reply profile send p.m.

Senior
Posts: 1262
Joined: Nov 2009

I'll have to go through my library and try to find that information for you....

So far, I found the following:

78-2034 - Red
78-2035-C - Green
78-2296-A - Black
78-2296-B - Orange

This message was edited by MG on 5-13-17 @ 4:49 PM

1937sedandelivery

05-13-2017 @ 9:31 PM

reply profile send p.m.

Senior
Posts: 501
Joined: Jul 2014

If you could please confirm this it would be great.
The p/n's you list are completely inconsistent with what the "The 1937 Ford Book" states on page 4-18. We really need to get this cleaned up, IMO.
Is there someone from the V-8 Club that can weigh in on this?

Thanks,
Gregg

05-13-2017 @ 10:18 PM

reply profile send p.m.

Senior
Posts: 1262
Joined: Nov 2009

CHASSIS PARTS LIST BOOK - 1937 Pages 7 & 9

What you mean "we", white eyes??? :o)

Why is this sooo important to you?

'The 1937 Ford Book' is not infallible.....

This message was edited by MG on 5-13-17 @ 10:54 PM

05-13-2017 @ 10:35 PM

reply profile send p.m.

Senior
Posts: 1262
Joined: Nov 2009

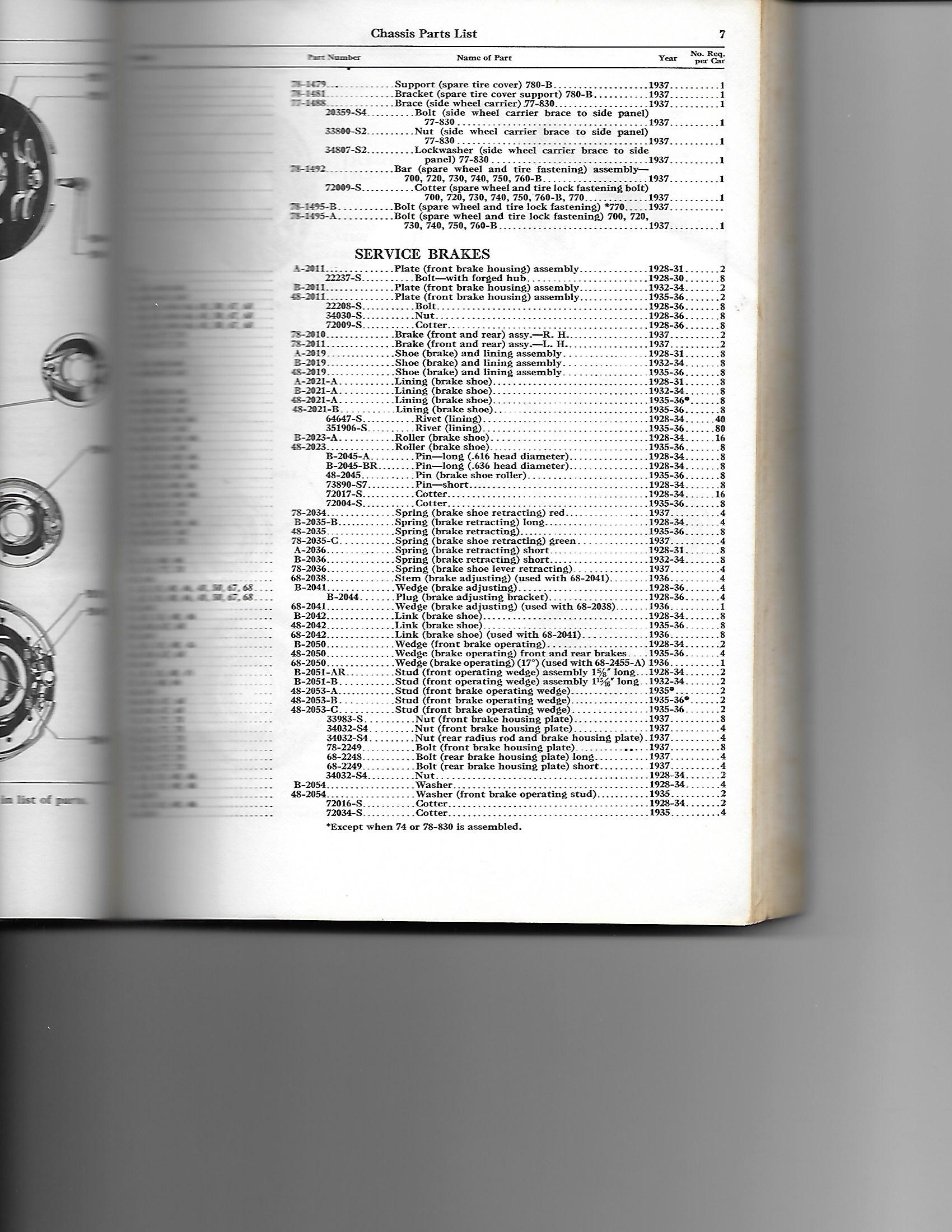

Page 7 - After clicking on the scanned jpg below, click on the displayed jpg image to enlarge it and then scroll....

This message was edited by MG on 5-13-17 @ 11:29 PM

05-13-2017 @ 10:36 PM

reply profile send p.m.

Senior
Posts: 1262

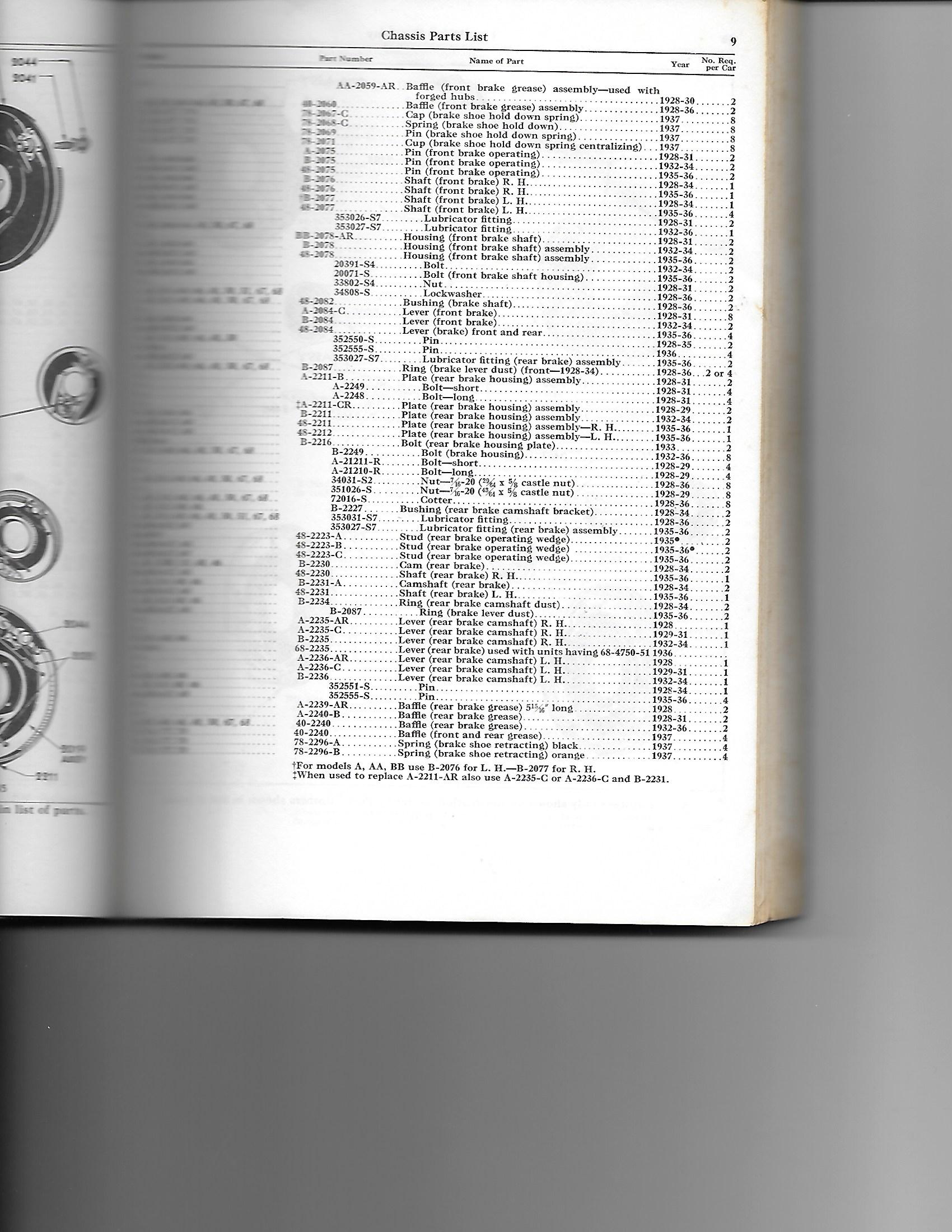

Joined: Nov 2009

Page 9
